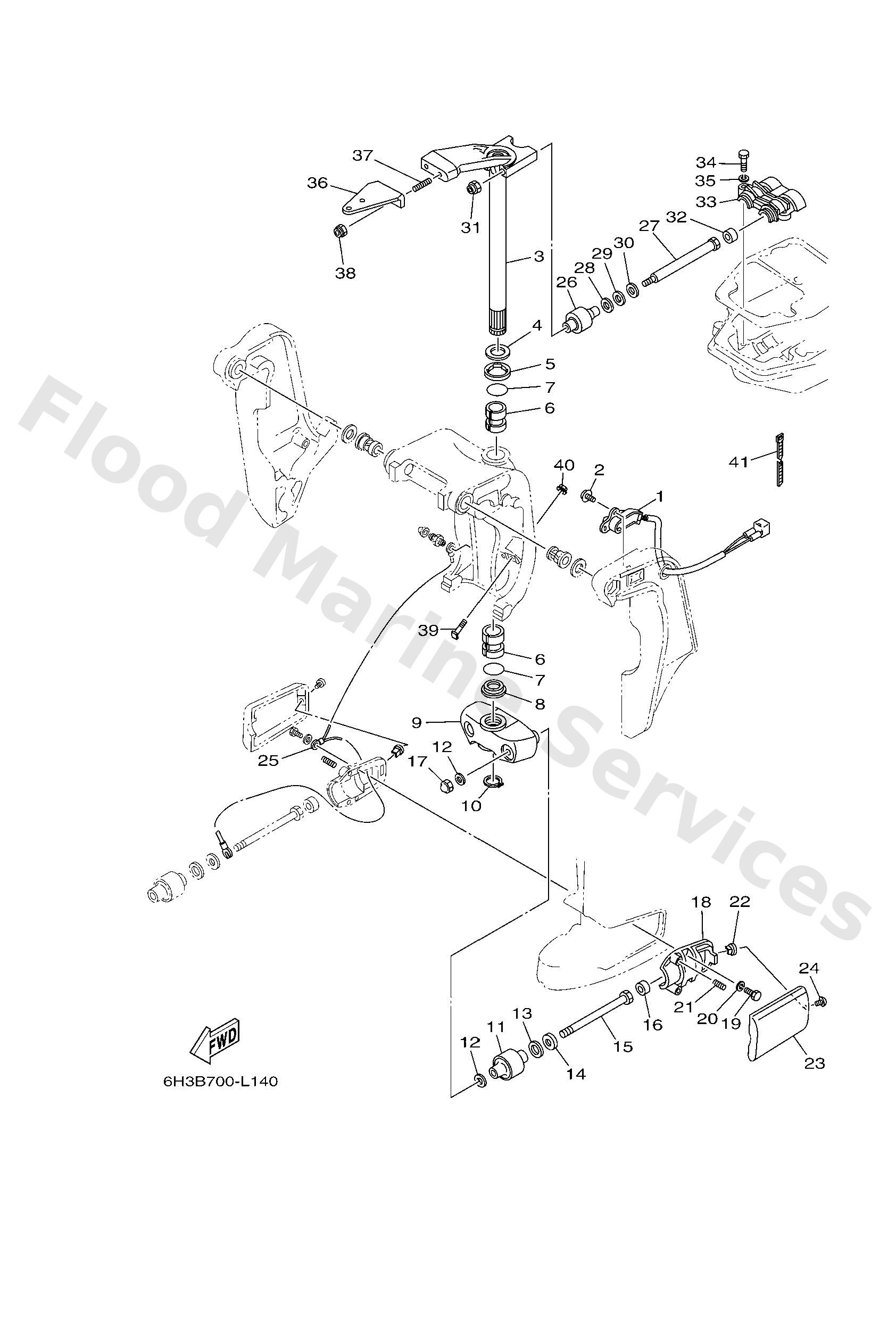

Parts List
Trim sender
Diagram Reference: 1
Screw, with washer(6h2)
Diagram Reference: 2
Steering bracket assembly
Diagram Reference: 3
Washer, plate(6h1)
Diagram Reference: 4
Bush(6h0)
Diagram Reference: 5
Bush(6h0)
Diagram Reference: 6
O-ring(6h1)
Diagram Reference: 7
Bush(6j8)
Diagram Reference: 8
Housing, lower mount rubber 1
Diagram Reference: 9
Circlip (688)
Diagram Reference: 10
Mount damper, lower side
Diagram Reference: 11
Washer, plate (679)
Diagram Reference: 12
Washer, plate (663)
Diagram Reference: 13
Washer, plate (663)
Diagram Reference: 14
Bolt (6h3)
Diagram Reference: 15
Damper, lower mount rubber
Diagram Reference: 16
Nut crown(663)
Diagram Reference: 17
Housing, lower mount rubber
Diagram Reference: 18
Bolt, hexagon deep recess
Diagram Reference: 19
Ybs67-8 washer, spring
Diagram Reference: 20
Spring, compression(64j)
Diagram Reference: 21
Nut(663)
Diagram Reference: 22
Cover, lower mount
Diagram Reference: 23
Screw, pan head(6b0)
Diagram Reference: 24
Wire, lead 2
Diagram Reference: 25
Mount damper, upper side
Diagram Reference: 26
Bolt
Diagram Reference: 27
Washer, plate (688)
Diagram Reference: 28
Washer, plate (688)
Diagram Reference: 29
Washer, plate (688)
Diagram Reference: 30
Nut, self-locking
Diagram Reference: 31
Cover, upper mount
Diagram Reference: 33
Bolt(70w)
Diagram Reference: 34
Hook, steering
Diagram Reference: 36
Bolt, stud
Diagram Reference: 37
Bolt, thrust receiver
Diagram Reference: 39
Nut, nylon (6j8)
Diagram Reference: 40
Clamp
Diagram Reference: 41
