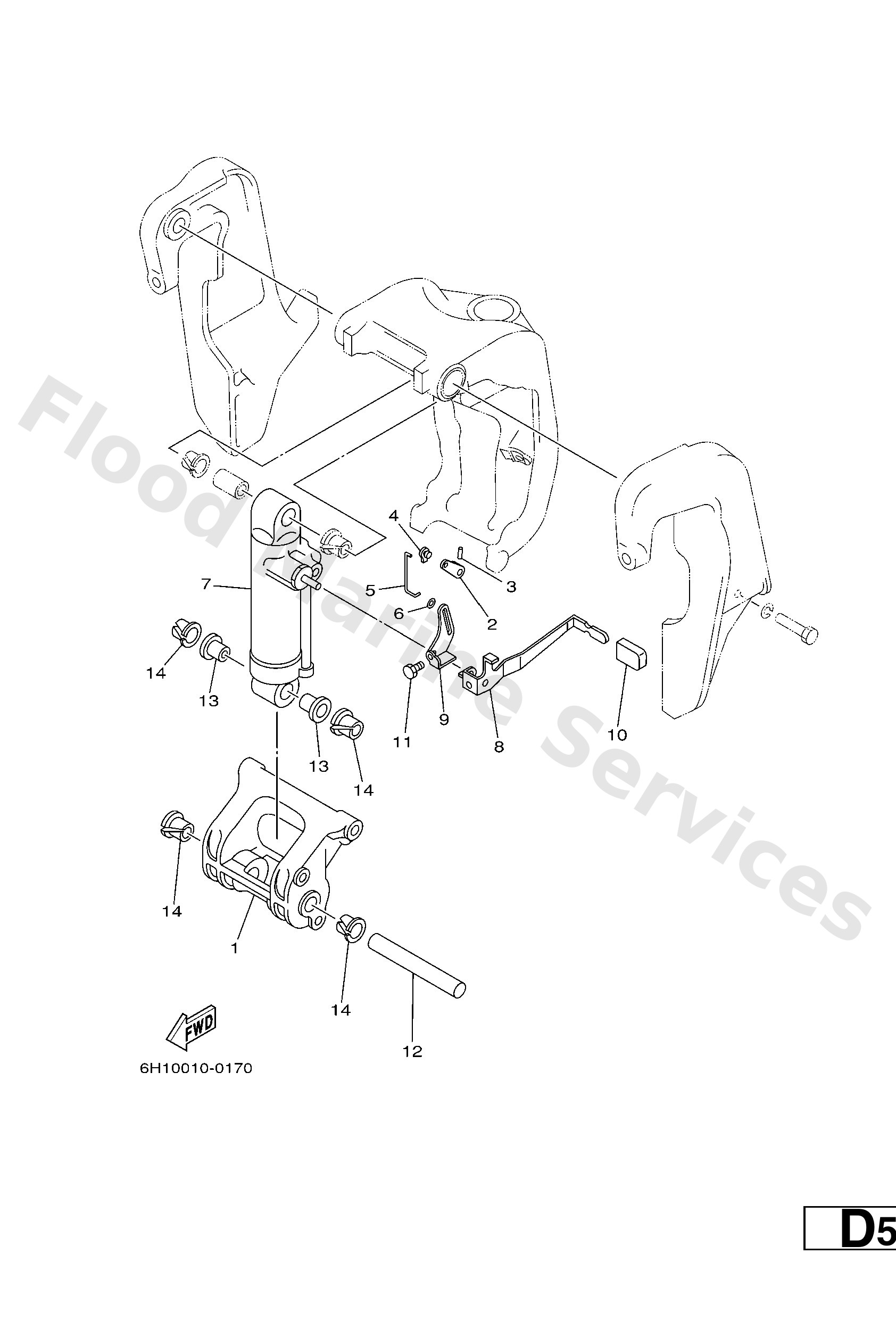

Diagram: BRACKET 2

Diagram

Parts List

68843128014D
Spacer, clamp bracket
Diagram Reference: 1
Get Part
6884318600
Lever
Diagram Reference: 2
Get Part
9169030020
Pin, spring (6h4)
Diagram Reference: 3
Get Part
6J84126200
Joint, choke lever
Diagram Reference: 4
Get Part
6884361600
Rod, tilt lock
Diagram Reference: 5
Get Part
9020203M51
Washer, plate(688)
Diagram Reference: 6
Get Part
68843170044D
Shock absorber sub-assembly
Diagram Reference: 7
Get Part
6884363110
Lever, tilt
Diagram Reference: 8
Get Part
6884365100
Lever, reverse lock1
Diagram Reference: 9
Get Part
6824331801
Cover
Diagram Reference: 10
Get Part
9708006010
Bolt
Diagram Reference: 11
Get Part
6884312402
Pin, lower shock mount
Diagram Reference: 12
Get Part
9038618M63
Bush(6e5)
Diagram Reference: 13
Get Part
9038618M35
Bush (688)
Diagram Reference: 14
