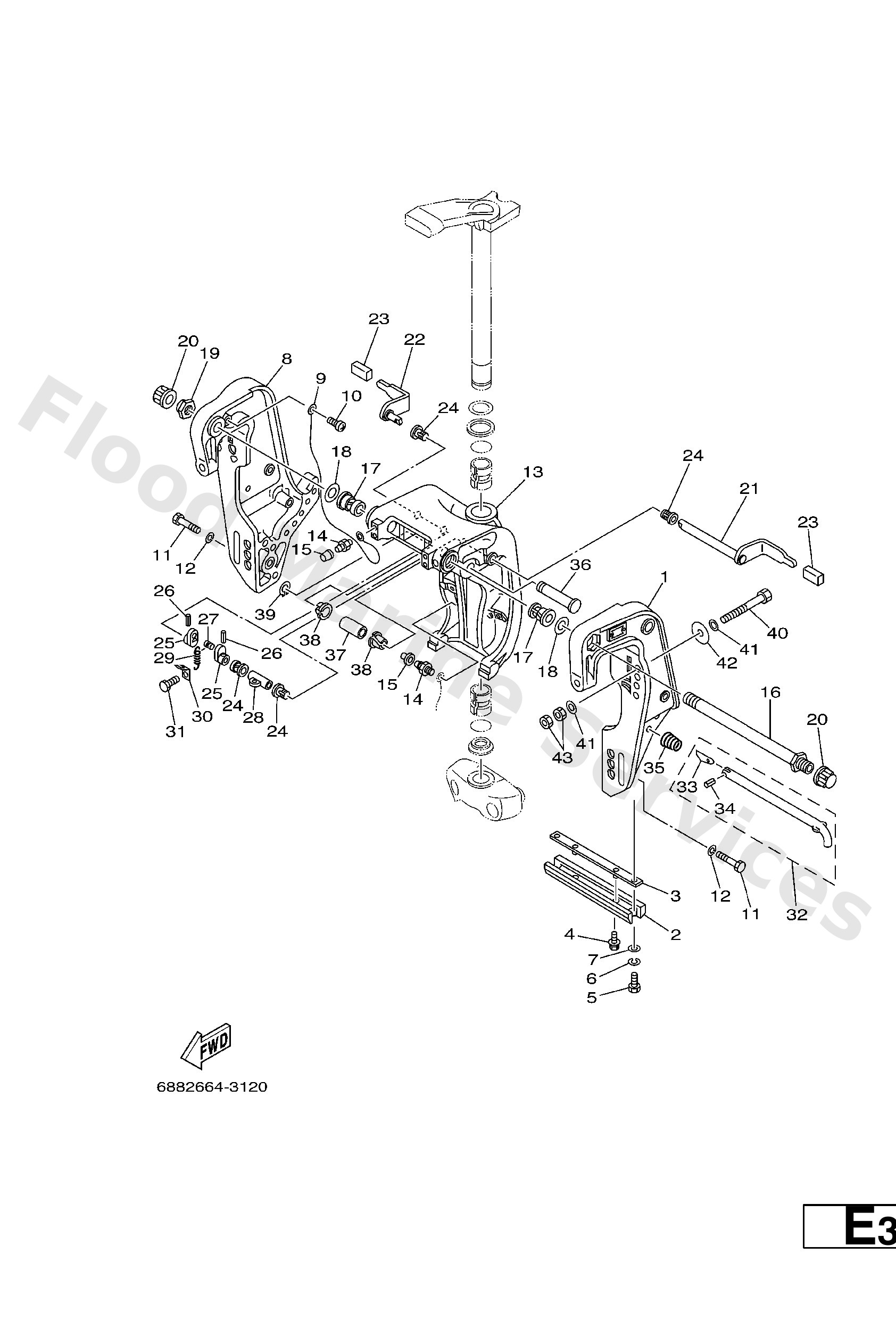

Diagram: BRACKET 2

Diagram

Parts List

68843111134D
Bracket, clamp 1
Diagram Reference: 1
Get Part
6H1--45251--03
Anode
Diagram Reference: 2
Get Part
6H1--44526--00
Plate 2
Diagram Reference: 3
Get Part
90119--06M29
Bolt, with washer
Diagram Reference: 4
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 6
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 7
Get Part
68843112124D
Bracket, clamp 2
Diagram Reference: 8
Get Part
6E5--82148--00
Wire, lead 5
Diagram Reference: 9
Get Part
97880--06012
Screw, pan head(62j)
Diagram Reference: 10
Get Part
97095--10045
Bolt(64d)
Diagram Reference: 11
Get Part
92995--10100
Ybs67-10 washer, spring
Diagram Reference: 12
Get Part
6H143311014D
Bracket, swivel 1
Diagram Reference: 13
Get Part
93700--06M03
Nipple, grease(6a1)
Diagram Reference: 14
Get Part
663--45119--00
Cap, grease nipple
Diagram Reference: 15
Get Part
688--43131--03
Bolt, clamp bracket
Diagram Reference: 16
Get Part
90386--22M15
Bushing (688)
Diagram Reference: 17
Get Part
90201--22M67
Washer, plate (688)
Diagram Reference: 18
Get Part
90185--22043
Nut, self-locking
Diagram Reference: 19
Get Part
6G5--43145--01
Cap, clamp bracket
Diagram Reference: 20
Get Part
6884318110
Lever, tilt stop 1
Diagram Reference: 21
Get Part
6884318510
Lever, tilt stop 2
Diagram Reference: 22
Get Part
663--43318--00
Cover
Diagram Reference: 23
Get Part
90386--10M16
Bushing (688)
Diagram Reference: 24
Get Part
6G5--43148--00
Collar, distance
Diagram Reference: 25
Get Part
91690--30020
Pin, spring (6h4)
Diagram Reference: 26
Get Part
90249--06M19
Pin(6e5)
Diagram Reference: 27
Get Part
90387--10M02
Collar(6e5)
Diagram Reference: 28
Get Part
90506--14M24
Spring, tension(6e5)
Diagram Reference: 29
Get Part
6G5--43144--00
Hook, spring
Diagram Reference: 30
Get Part
97095--06010
Bolt
Diagram Reference: 31
Get Part
688--43160--01
Tilt rod ass'y
Diagram Reference: 32
Get Part
688--43165--00
Stopper, tilt rod
Diagram Reference: 33
Get Part
91690--30012
Pin, spring
Diagram Reference: 34
Get Part
90502--16M02
Spring, conical (688)
Diagram Reference: 35
Get Part
6E5--43126--02
Pin, upper shock mount
Diagram Reference: 36
Get Part
9038618M21
Bushing (688)
Diagram Reference: 37
Get Part
90386--18M35
Bush (688)
Diagram Reference: 38
Get Part
93410--18M02
Circlip (6f2)
Diagram Reference: 39
Get Part
90101--12M65
Bolt
Diagram Reference: 40
Get Part
92995--12200
Ybs66-12 washer,plain
Diagram Reference: 41
Get Part
90201--12426
Washe, plate(663)
Diagram Reference: 42
Get Part
95380--12600
Nut (707)
Diagram Reference: 43
