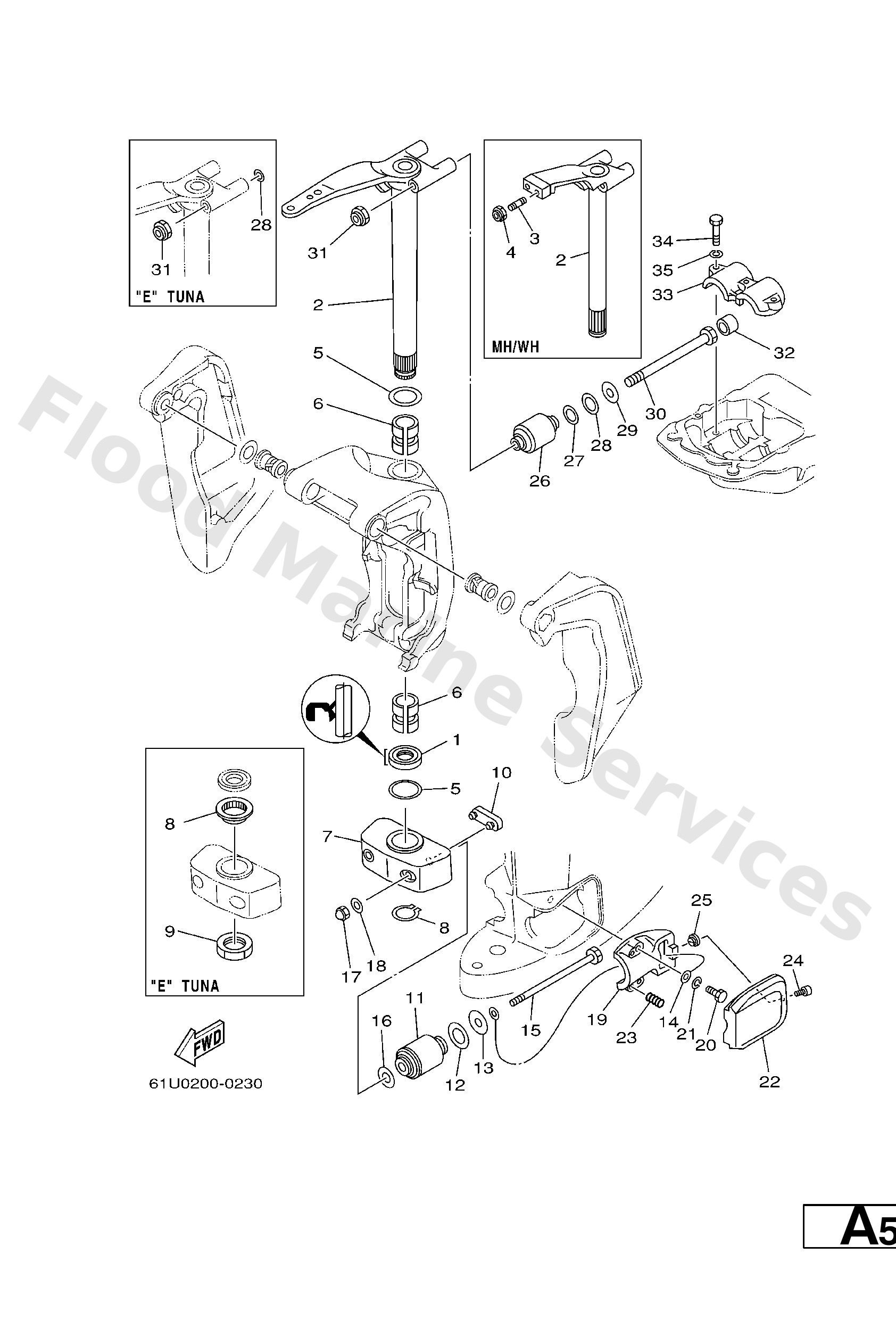

Diagram: BRACKET 2

Diagram

Parts List

93109−38M02

Oil seal (6e5)

Diagram Reference: 1

6E5−42510−05−8D (L)

Steering bracket assembly

Diagram Reference: 2

6E5−42510−71−8D (X)

Steering Bracket assembly

Diagram Reference: 2

6E5−42510−25−8D (X)

Steering bracket assembly

Diagram Reference: 2

6E5−42510−11−8D (L/Y)

Steering Bracket assembly

Diagram Reference: 2

6E5−42510−61−8D (L−FOR TUNA)

Steering bracket assembly

Diagram Reference: 2

90116−10M28

Bolt, stud

Diagram Reference: 3

90185−10051

Nut, self-locking

Diagram Reference: 4

90201−38M60 (FOR TUNA)

Washer, plate (6e5)

Diagram Reference: 5

90386−38M32

Bush(6e5)

Diagram Reference: 6

90386−38M89 (FOR TUNA)

Bush(6e5)

Diagram Reference: 6

6G5−44551−01−8D

Housing, lower mount rubber

Diagram Reference: 7

6E5−44551−61−8D (FOR TUNA)

Housing, Lower Mount Rubber

Diagram Reference: 7

6E5−42535−60 (FOR TUNA)

Washer, thrust

Diagram Reference: 8

93410−37M04

Circlip (6e5)

Diagram Reference: 8

6E5−42546−60 (FOR TUNA)

Nut

Diagram Reference: 9

6E5−44575−00

Damper, lower mount rubber

Diagram Reference: 10

6E5−44555−00−94

Mount damper, lower side

Diagram Reference: 11

90202−32M19

Washer, plate (6e5)

Diagram Reference: 12

90201−16M55

Washer, plate (6e5)

Diagram Reference: 13

6E5−82149−00

Wire, lead 3

Diagram Reference: 14

90109−14M34

Bolt(6e5)

Diagram Reference: 15

90109−14M54 (FOR TUNA)

Bolt(6e5)

Diagram Reference: 15

90201−15M58

Washer, plate (6e5)

Diagram Reference: 16

95380−14800

Nut, crown (6e5)

Diagram Reference: 17

90185−14M00 (FOR TUNA)

Nut, self-locking(61a)

Diagram Reference: 17

92995−14600

Washer (6e5)

Diagram Reference: 18

6E5−44552−01−94

Housing, lower mount rubber

Diagram Reference: 19

97095−10045

Bolt(64d)

Diagram Reference: 20

92995−10100

Ybs67-10 washer, spring

Diagram Reference: 21

6E5−44553−01−8D

Cover, lower mount

Diagram Reference: 22

90501−16M28

Spring (6e5)

Diagram Reference: 23

97885−06016

Screw, pan head(6b0)

Diagram Reference: 24

90179−06066

Nut(663)

Diagram Reference: 25

6E5−44514−00−94

Mount damper, upper side

Diagram Reference: 26

6E5−44514−60−94 (FOR TUNA)

Mount damper, upper side

Diagram Reference: 26

90201−26M57

Washer, plate (6e5)

Diagram Reference: 27

90202−26M18

Washer, plate (6e5)

Diagram Reference: 28

92995−14200 (FOR TUNA)

23 −

Diagram Reference: 28

90201−14M56

Washer, plate (6e5)

Diagram Reference: 29

90201−15M00 (FOR TUNA)

Washer, plate(6e5)

Diagram Reference: 29

90109−12M37

Bolt

Diagram Reference: 30

90109−14M53 (FOR TUNA)

Bolt(6e5)

Diagram Reference: 30

90185−12M12

Nut, self-locking(6e5)

Diagram Reference: 31

663−44575−00 (EXCEPT FOR TUNA)

Damper, lower mount rubber

Diagram Reference: 32

6E5−44511−00−5B

Cover, upper mount

Diagram Reference: 33

6E5−44511−60−5B (FOR TUNA)

Cover, upper mount

Diagram Reference: 33
