Parts List

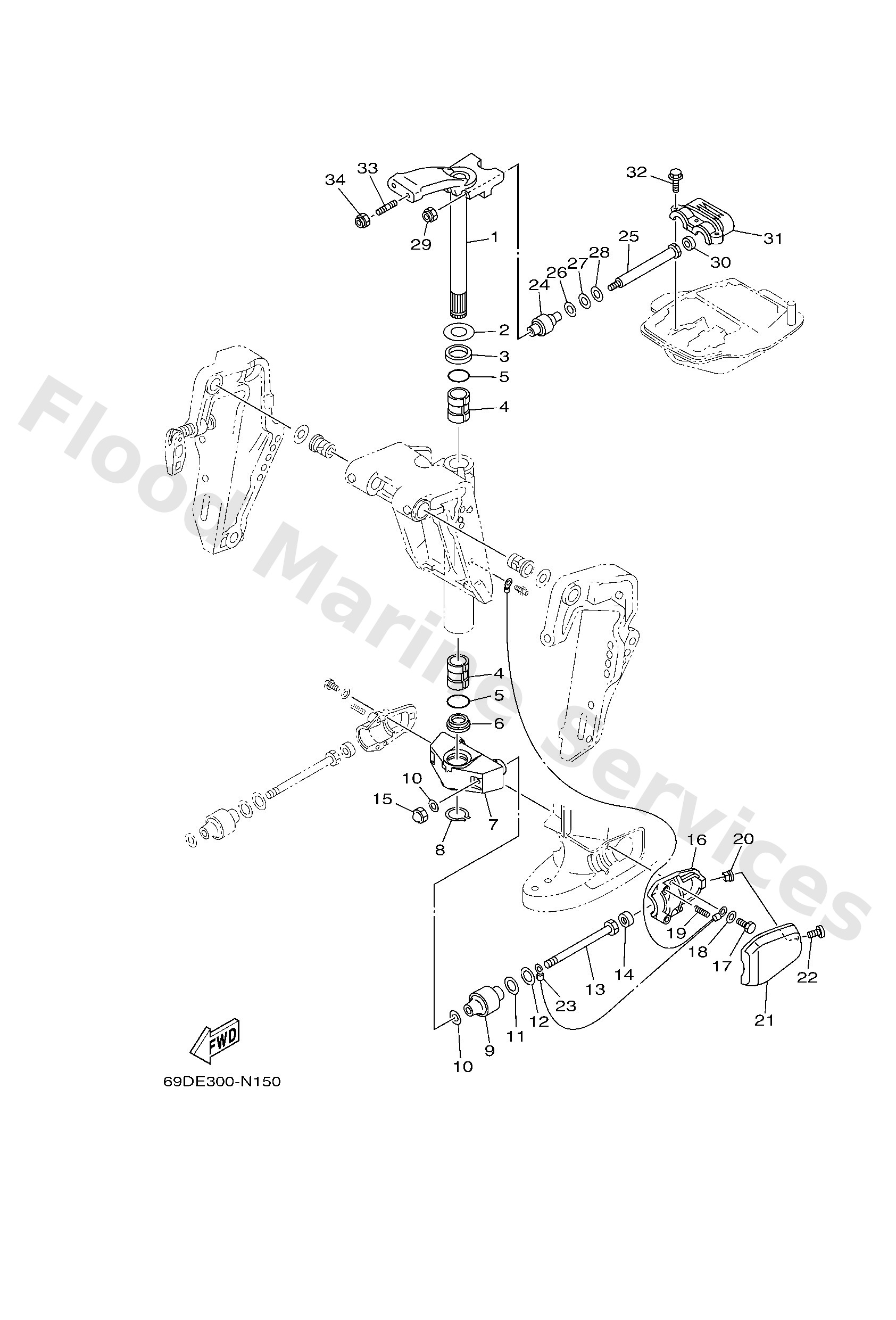

Steering bracket assembly
Diagram Reference: 1
Washer, plate(6h1)
Diagram Reference: 2
Bush(6h0)
Diagram Reference: 3
Bush(6h0)
Diagram Reference: 4
O-ring(6h1)
Diagram Reference: 5
Bush(6j8)
Diagram Reference: 6
Housing, lower mount rubber 1
Diagram Reference: 7
Circlip (688)
Diagram Reference: 8
Mount damper, lower side
Diagram Reference: 9
Washer, plate (679)
Diagram Reference: 10
Washer, plate (663)
Diagram Reference: 11
Washer, plate (663)
Diagram Reference: 12
Bolt (6h3)
Diagram Reference: 13
Damper, lower mount rubber
Diagram Reference: 14
Nut crown(663)
Diagram Reference: 15
Housing, lower mount rubber
Diagram Reference: 16
Bolt, hexagon deep recess
Diagram Reference: 17
Washer, plain (663)
Diagram Reference: 18
Spring, compression(64j)
Diagram Reference: 19
Nut(663)
Diagram Reference: 20
Cover, lower mount
Diagram Reference: 21
Screw, pan head(6b0)
Diagram Reference: 22
Wire, lead 2
Diagram Reference: 23
Mount damper, upper side
Diagram Reference: 24
Bolt
Diagram Reference: 25
Washer, plate (688)
Diagram Reference: 26
Washer, plate (688)
Diagram Reference: 27
Washer, plate (688)
Diagram Reference: 28
Nut, self-locking
Diagram Reference: 29
Cover, upper mount
Diagram Reference: 31
Bolt(70w)
Diagram Reference: 32
Bolt, stud
Diagram Reference: 33
