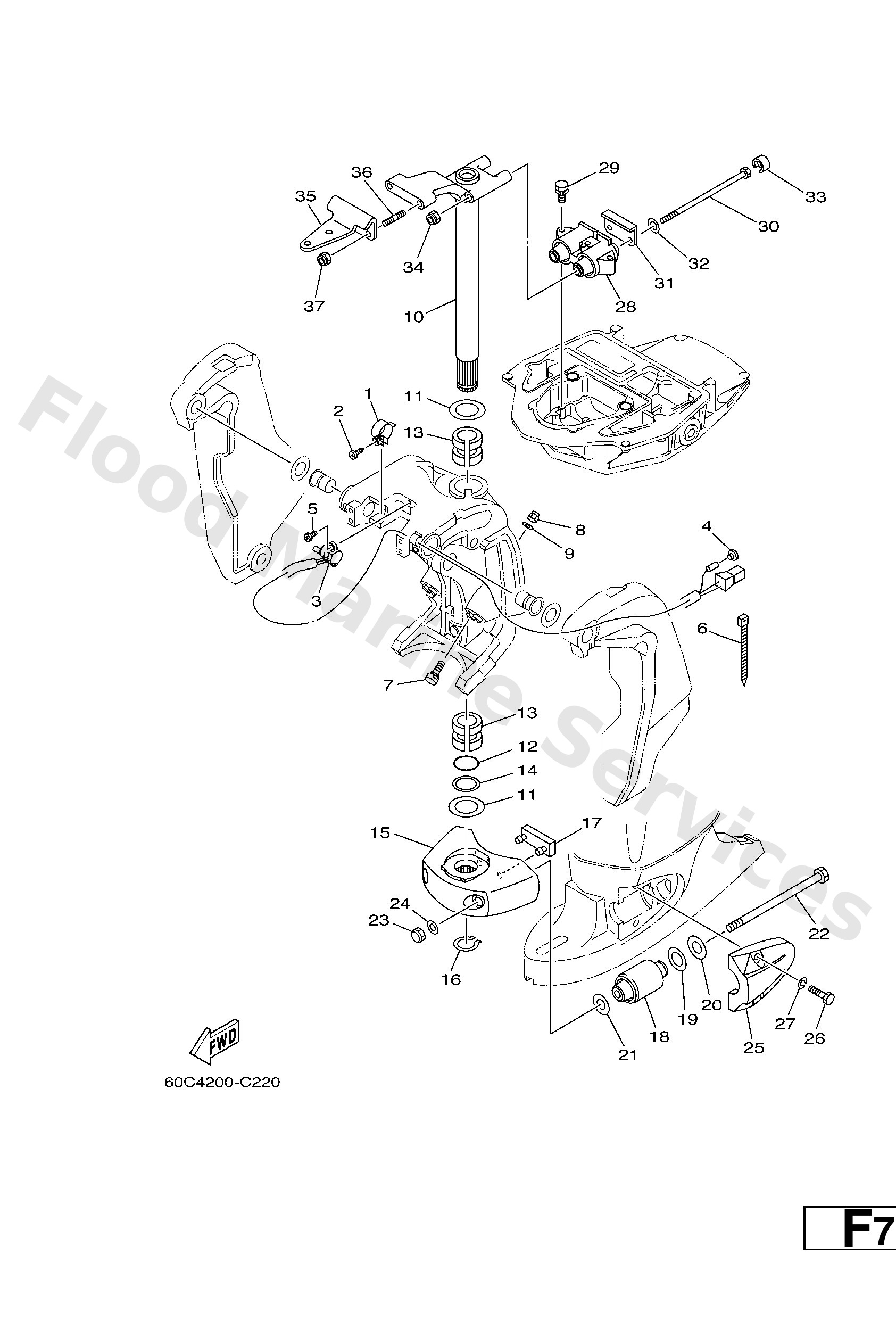

Parts List
Cam, trim sender (with screw)
Diagram Reference: 1
Screw, tapping(65j)
Diagram Reference: 2
Trim sender
Diagram Reference: 3
Cover, lead wire
Diagram Reference: 4
Screw, pan head(6b0)
Diagram Reference: 5
Clamp
Diagram Reference: 6
Bolt, thrust receiver
Diagram Reference: 7
Nut, nylon (6e5)
Diagram Reference: 8
Washer, plate
Diagram Reference: 9
Steering bracket assembly
Diagram Reference: 10
Washer, plate (6e5)
Diagram Reference: 11
O-ring(61u)
Diagram Reference: 12
Bush(6e5)
Diagram Reference: 13
Washer, plate(61a)
Diagram Reference: 14
Housing, lower mount rubber
Diagram Reference: 15
Circlip (6e5)
Diagram Reference: 16
Damper, lower mount rubber
Diagram Reference: 17
Mount damper, lower side
Diagram Reference: 18
Washer, plate (6e5)
Diagram Reference: 19
Washer, plate (6e5)
Diagram Reference: 20
Washer, plate (6e5)
Diagram Reference: 21
Bolt
Diagram Reference: 22
Nut,hex. (ge6)
Diagram Reference: 23
Washer (6e5)
Diagram Reference: 24
Cover, lower mount
Diagram Reference: 25
Bolt, hexagon deep recess
Diagram Reference: 26
Ybs67-10 washer, spring
Diagram Reference: 27
Mount damper, upper side
Diagram Reference: 28
Bolt, hexagon w/w deep recess
Diagram Reference: 29
Bolt
Diagram Reference: 30
Plate
Diagram Reference: 31
Washer, plate
Diagram Reference: 32
Damper, upper mount rubber
Diagram Reference: 33
Nut, self-locking(6e5)
Diagram Reference: 34
Hook, steering
Diagram Reference: 35
Bolt, stud
Diagram Reference: 36
Nut, self-locking
Diagram Reference: 37
