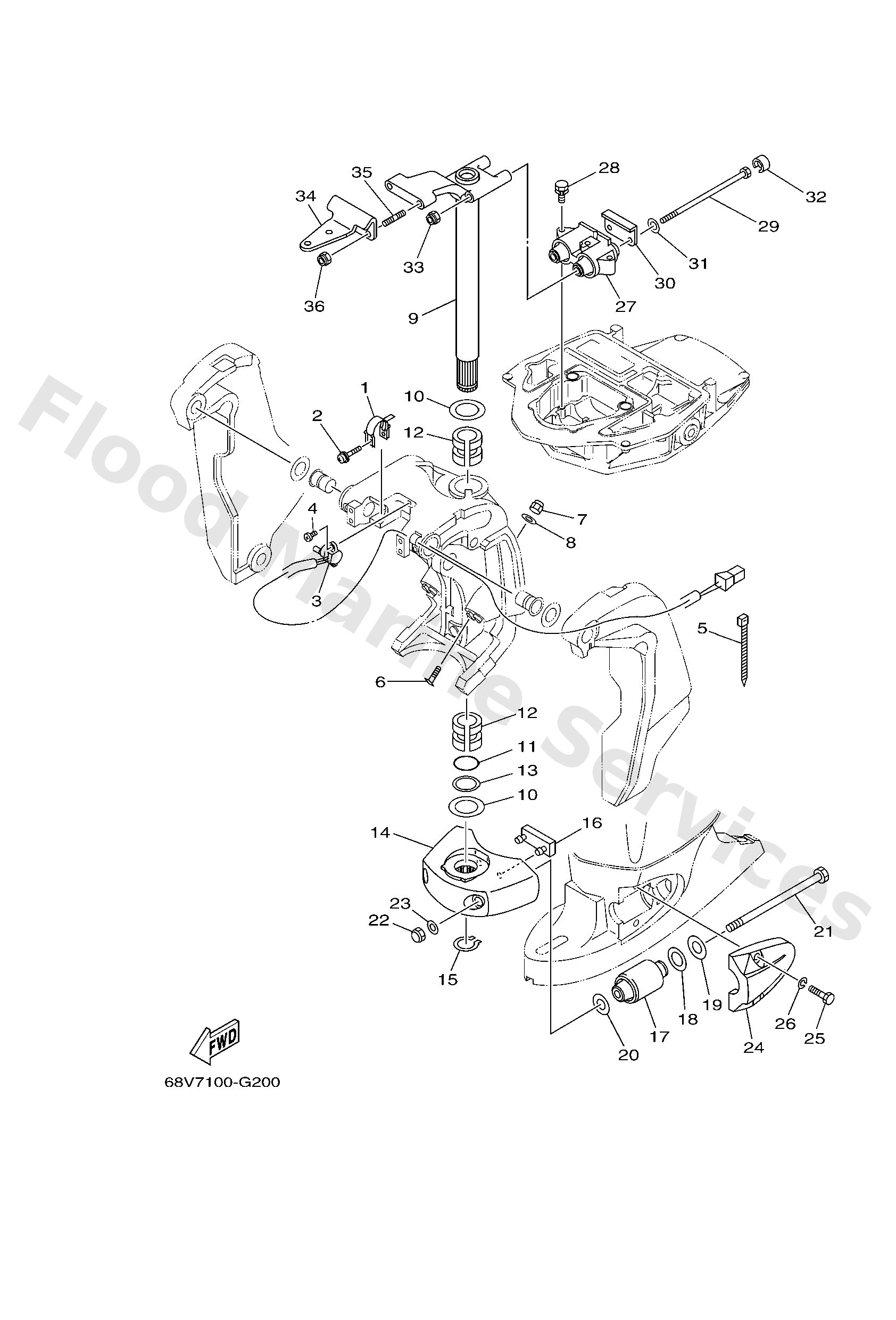

Parts List
Cam, trim sender
Diagram Reference: 1
Screw, with washer
Diagram Reference: 2
Trim sender
Diagram Reference: 3
Screw, pan head(6b0)
Diagram Reference: 4
Clamp
Diagram Reference: 5
Bolt, thrust receiver
Diagram Reference: 6
Nut, nylon (6e5)
Diagram Reference: 7
Washer, plate
Diagram Reference: 8
Steering bracket assembly
Diagram Reference: 9
Washer, plate (6e5)
Diagram Reference: 10
O-ring(61u)
Diagram Reference: 11
Bush(6e5)
Diagram Reference: 12
Washer, plate(61a)
Diagram Reference: 13
Housing, lower mount rubber
Diagram Reference: 14
Circlip (6e5)
Diagram Reference: 15
Damper, lower mount rubber
Diagram Reference: 16
Mount damper, lower side
Diagram Reference: 17
Washer, plate (6e5)
Diagram Reference: 18
Washer, plate (6e5)
Diagram Reference: 19
Washer, plate (6e5)
Diagram Reference: 20
Bolt
Diagram Reference: 21
Nut,hex. (ge6)
Diagram Reference: 22
Washer (6e5)
Diagram Reference: 23
Cover, lower mount
Diagram Reference: 24
Bolt, hexagon deep recess
Diagram Reference: 25
Ybs67-10 washer, spring
Diagram Reference: 26
Mount damper, upper side
Diagram Reference: 27
Bolt, with washer
Diagram Reference: 28
Bolt
Diagram Reference: 29
Plate
Diagram Reference: 30
Washer, plate
Diagram Reference: 31
Damper, upper mount rubber
Diagram Reference: 32
Nut, self-locking(6e5)
Diagram Reference: 33
Hook, steering
Diagram Reference: 34
Bolt, stud
Diagram Reference: 35
Nut, self-locking
Diagram Reference: 36
