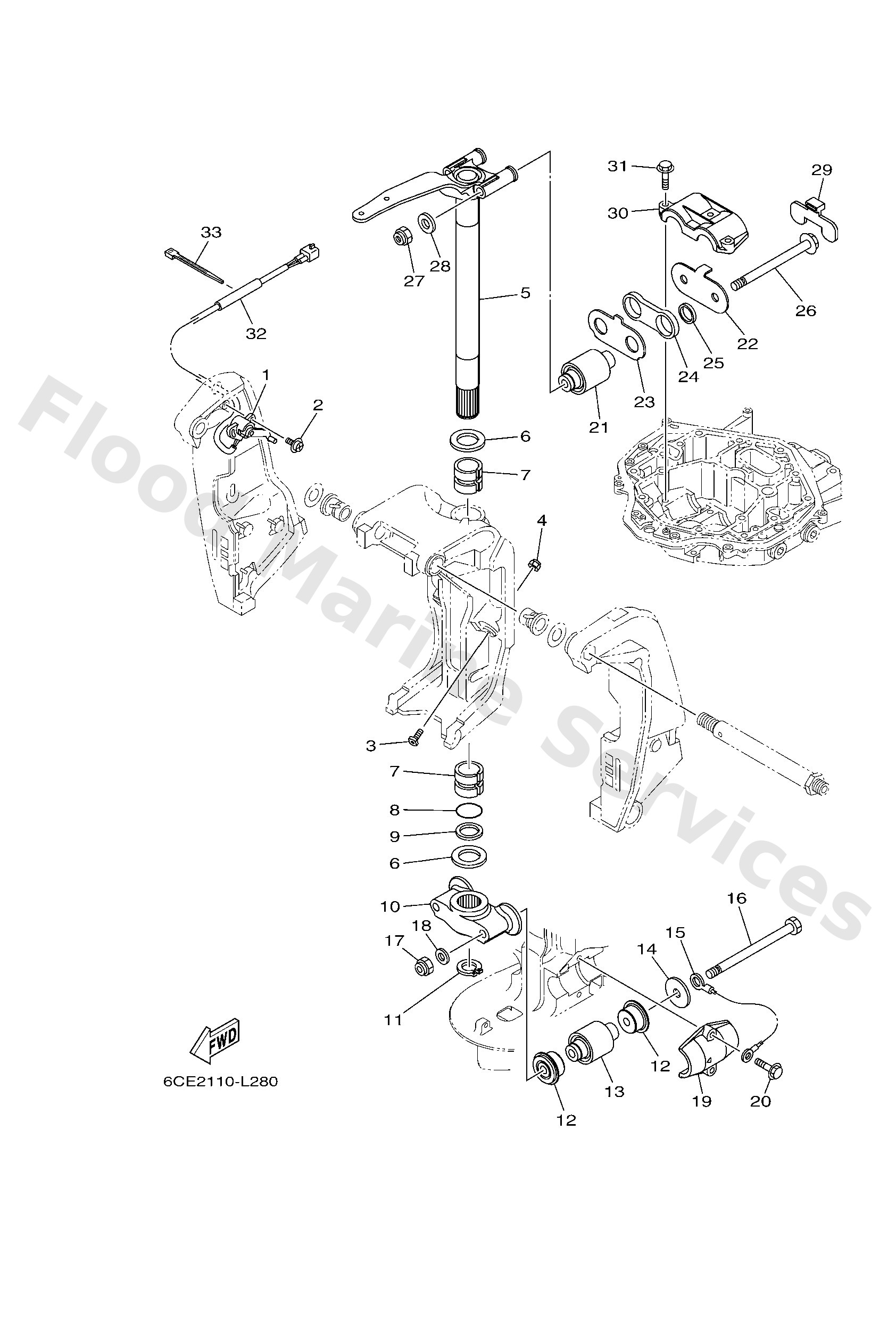

Parts List
Trim sender
Diagram Reference: 1
Screw, with washer(6h2)
Diagram Reference: 2
Bolt, thrust receiver
Diagram Reference: 3
Nut, nylon (6e5)
Diagram Reference: 4
Steering bracket assembly
Diagram Reference: 5
Washer, plate(61a)
Diagram Reference: 6
Bush(61a)
Diagram Reference: 7
O-ring (3m7)
Diagram Reference: 8
Washer, plate(61a)
Diagram Reference: 9
Housing, lower mount rubber 1
Diagram Reference: 10
Circlip (6e5)
Diagram Reference: 11
Damper, lower mount rubber
Diagram Reference: 12
Mount damper, lower side
Diagram Reference: 13
Washer, plate
Diagram Reference: 14
Wire, lead 3
Diagram Reference: 15
Bolt
Diagram Reference: 16
Nut, self-locking(61a)
Diagram Reference: 17
Washer (6e5)
Diagram Reference: 18
Housing, lower mount rubber 2
Diagram Reference: 19
Bolt, with washer
Diagram Reference: 20
Mount damper, upper side
Diagram Reference: 21
Plate
Diagram Reference: 22
Plate 2
Diagram Reference: 23
Stopper, upper mount
Diagram Reference: 24
Collar
Diagram Reference: 25
Bolt, flange
Diagram Reference: 26
Damper, upper mount rubber
Diagram Reference: 29
Cover, upper mount
Diagram Reference: 30
Hose
Diagram Reference: 32
Clamp
Diagram Reference: 33
