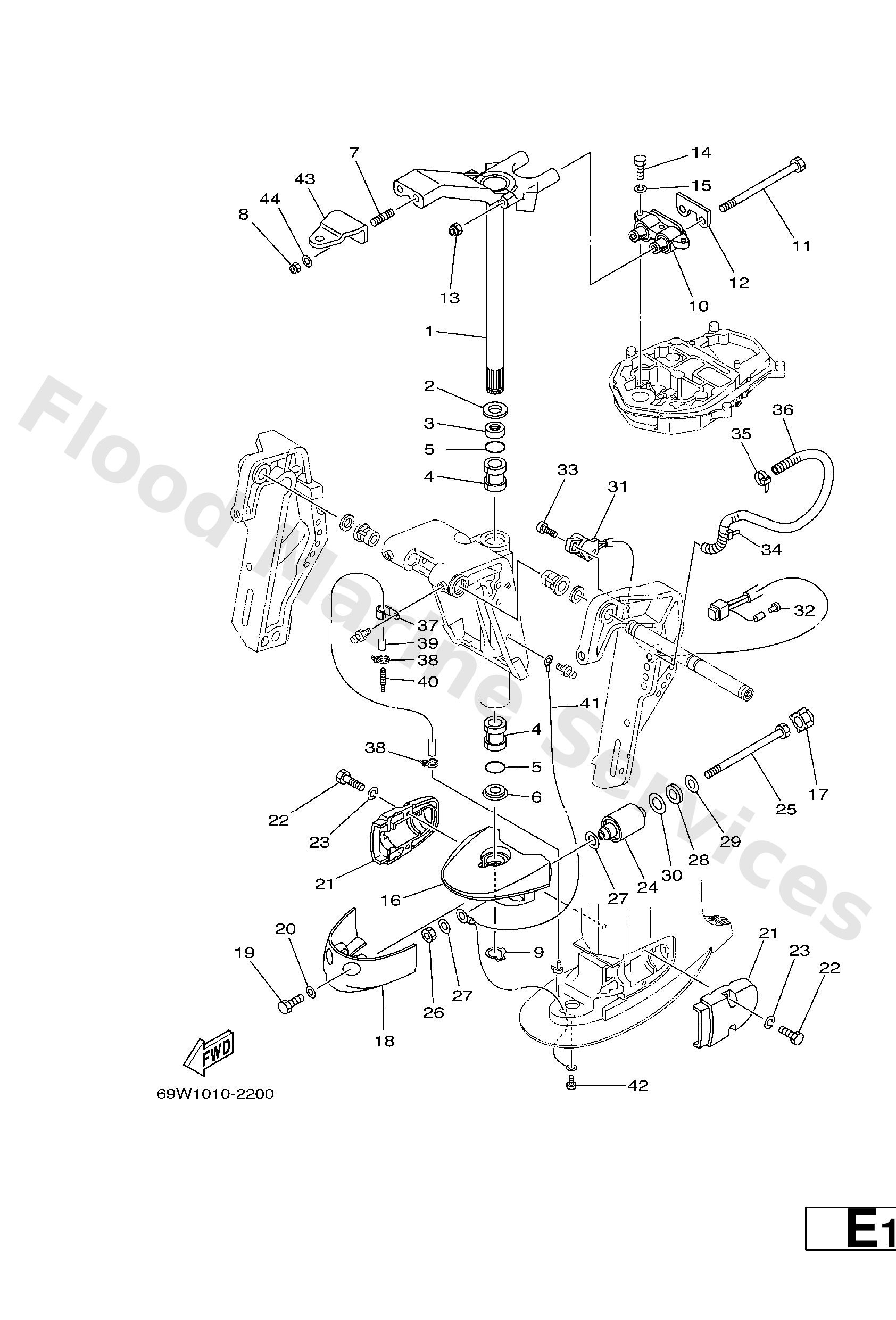

Diagram: BRACKET 2

Diagram

Parts List

90201−30M00
Washer, plate(6h1)
Diagram Reference: 2
Get Part
90386−30M78
Bush(6h0)
Diagram Reference: 3
Get Part
90386−30M77
Bush(6h0)
Diagram Reference: 4
Get Part
93210−29M94
O-ring(6h1)
Diagram Reference: 5
Get Part
90386−30M60
Bush(6j8)
Diagram Reference: 6
Get Part
90116−10M28
Bolt, stud
Diagram Reference: 7
Get Part
90185−10051
Nut, self-locking
Diagram Reference: 8
Get Part
93410−28M06
Circlip (688)
Diagram Reference: 9
Get Part
90101−08M15
Bolt
Diagram Reference: 11
Get Part
69W−44526−00
Plate
Diagram Reference: 12
Get Part
90185−08045
Nut, self-locking
Diagram Reference: 13
Get Part
97075−08030
Bolt, hexagon (fj1)
Diagram Reference: 14
Get Part
92995−08100
Ybs67-8 washer, spring
Diagram Reference: 15
Get Part
69W−44575−00
Damper, lower mount rubber
Diagram Reference: 17
Get Part
97095−08020
Bolt, hexagon
Diagram Reference: 19
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 20
Get Part
90109−12MA3
Bolt
Diagram Reference: 25
Get Part
95380−12700
Nut(6t4)
Diagram Reference: 26
Get Part
90201−12M16
Washer, plate (679)
Diagram Reference: 27
Get Part
90202−21100
Washer plate (663)
Diagram Reference: 28
Get Part
90201−13M19
Washer, plate (663)
Diagram Reference: 29
Get Part
90201−22M05
Washer, plate
Diagram Reference: 30
Get Part
63D−83672−01
Trim sender
Diagram Reference: 31
Get Part
703−82119−00
Cover, lead wire
Diagram Reference: 32
Get Part
97885−06016
Screw, pan head(6b0)
Diagram Reference: 33
Get Part
90465−13M18
Clamp
Diagram Reference: 34
Get Part
90465−11M10
Clamp
Diagram Reference: 35
Get Part
90446−17M91
Hose
Diagram Reference: 36
Get Part
90465−06M86
Clamp
Diagram Reference: 37
Get Part
90445−07M53
Hose (l1160)
Diagram Reference: 39
Get Part
6E5−83558−00
End, nipple
Diagram Reference: 40
Get Part
67C−82127−10
Wire, lead 2
Diagram Reference: 41
Get Part
97885−06008
Screw, pan head(6a3)
Diagram Reference: 42
Get Part
92995−10600
Washer, plate
Diagram Reference: 44
Get Part
