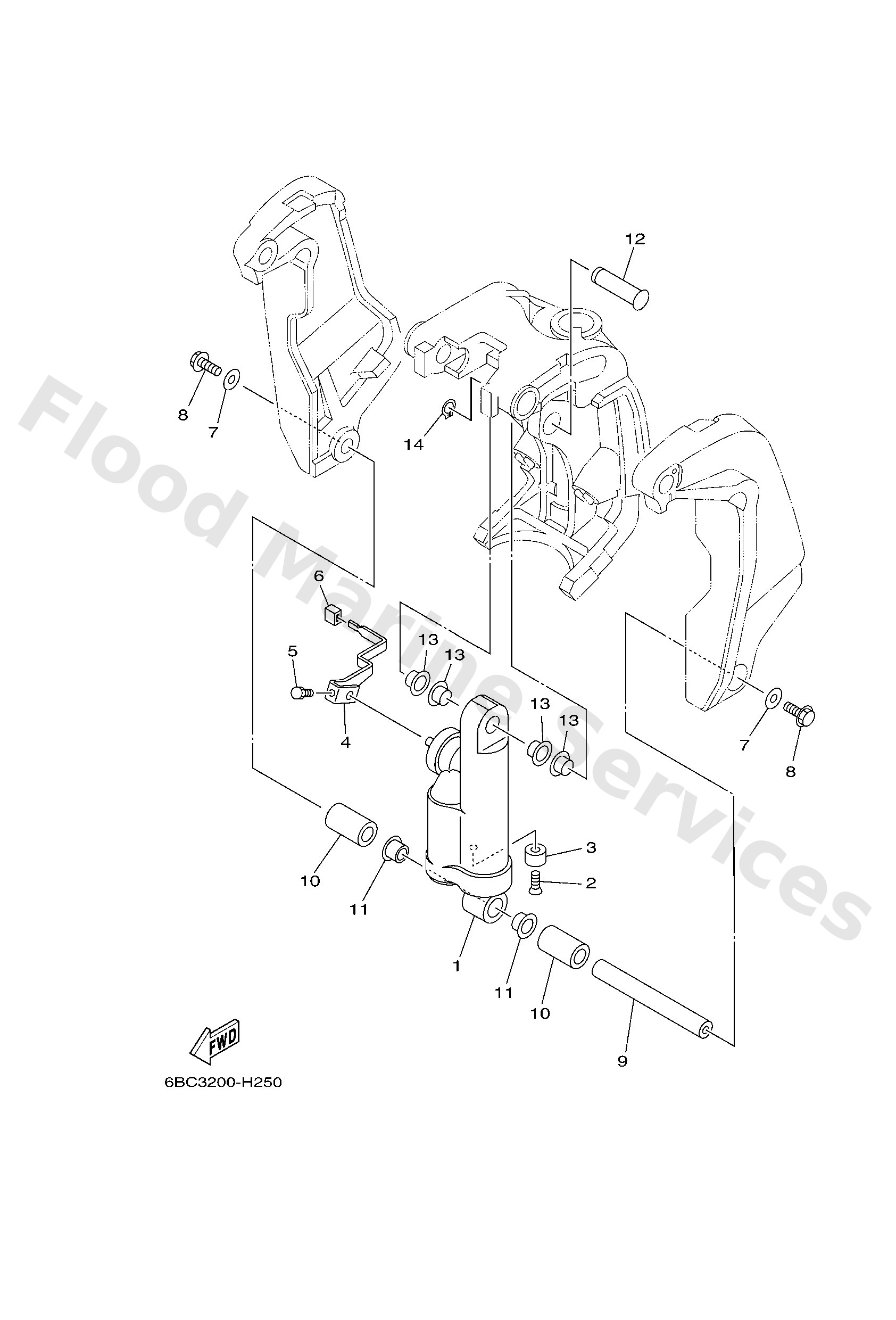

Diagram: BRACKET 2

Diagram

Parts List

6BC43107008D
Shock absorber sub-assembly
Diagram Reference: 1
Get Part
9015206M01
Screw, countersunk
Diagram Reference: 2
Get Part
6634525100
Anode
Diagram Reference: 3
Get Part
6BC43631008D
Lever, tilt
Diagram Reference: 4
Get Part
9010106057
Bolt
Diagram Reference: 5
Get Part
6G14331801
Cover
Diagram Reference: 6
Get Part
9020110060
Washer, plate
Diagram Reference: 7
Get Part
9757510530
Bolt, with washer
Diagram Reference: 8
Get Part
6BC4381800
Pin, lower shock mount
Diagram Reference: 9
Get Part
9038722018
Collar
Diagram Reference: 10
Get Part
9038622M98
Bush(61u)
Diagram Reference: 11
Get Part
64E4312600
Pin, upper shock mount
Diagram Reference: 12
Get Part
9341022M11
Circlip(61u)
Diagram Reference: 14
Get Part
