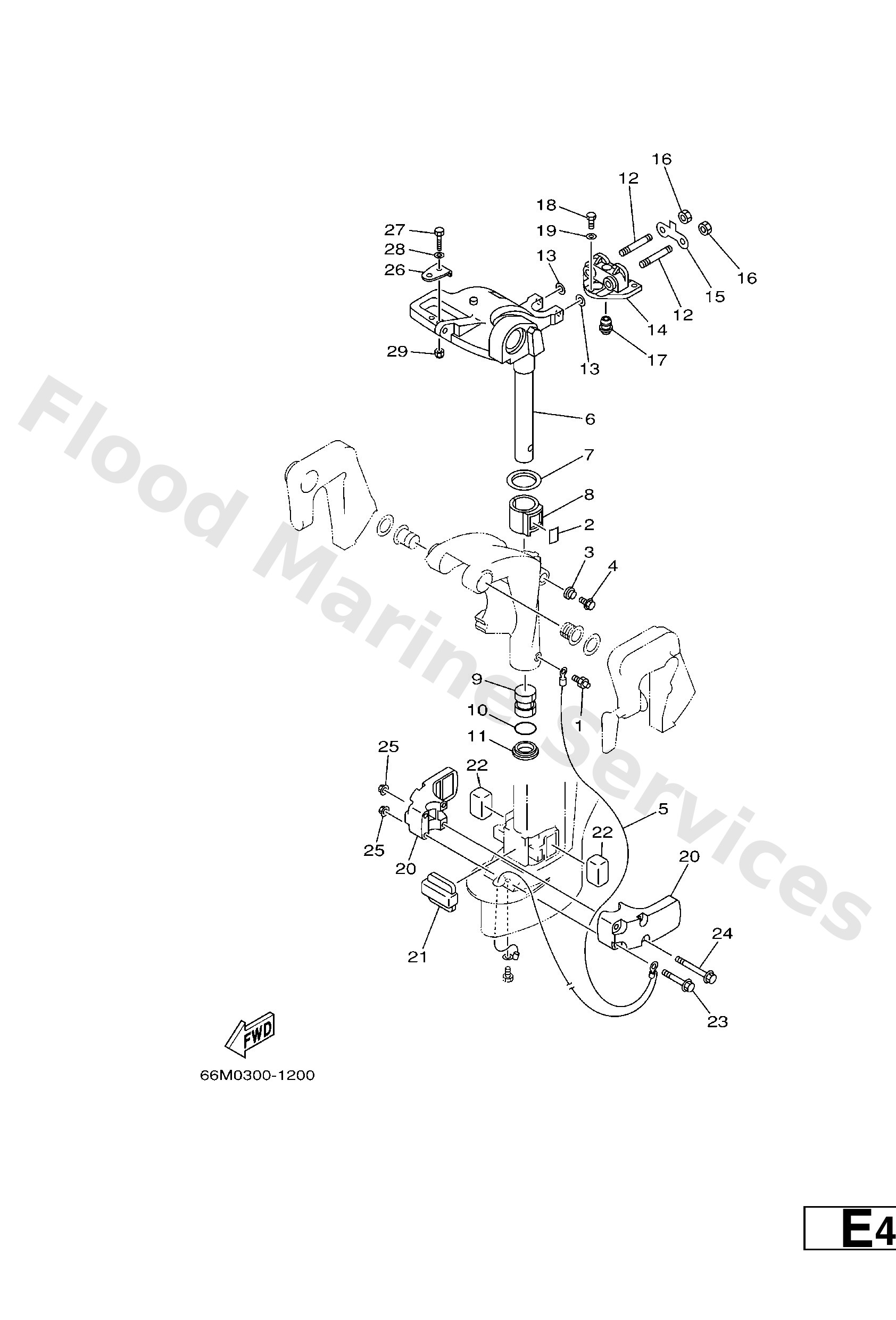

Diagram: BRACKET 2

Diagram

Parts List

9370006M03
Nipple, grease(6a1)
Diagram Reference: 1
Get Part
63V4252800
Plate, friction
Diagram Reference: 2
Get Part
6894337301
Seal, damper
Diagram Reference: 3
Get Part
9010506M07
Bolt (689)
Diagram Reference: 4
Get Part
66M8212700
Wire, Lead 2
Diagram Reference: 5
Get Part
66M42511014D (S(17.3"))
Bracket, Steering
Diagram Reference: 6
Get Part
66M42511114D (L(22.3"))
Bracket, steering
Diagram Reference: 6
Get Part
9020940008
Washer
Diagram Reference: 7
Get Part
65F4253700
Bushing, pivot shaft
Diagram Reference: 8
Get Part
9038630048
Bush
Diagram Reference: 9
Get Part
9321029M94
O-ring(6h1)
Diagram Reference: 10
Get Part
9038630M60
Bush(6j8)
Diagram Reference: 11
Get Part
9011608M54
Bolt, stud(63v)
Diagram Reference: 12
Get Part
9020108M06
Washer, plate
Diagram Reference: 13
Get Part
66M44514004D
Mount damper, upper side
Diagram Reference: 14
Get Part
66M4452600
Plate
Diagram Reference: 15
Get Part
9538008600
Nut (661)
Diagram Reference: 16
Get Part
66M4436600
Damper, water seal
Diagram Reference: 17
Get Part
9707506025
Bolt
Diagram Reference: 18
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 19
Get Part
66M44551004D
Housing, lower mount rubber 1
Diagram Reference: 20
Get Part
66M4455700
Mount damper, lower front
Diagram Reference: 21
Get Part
6824455530
Mount damper, lower side
Diagram Reference: 22
Get Part
9011908M45
Bolt, with washer
Diagram Reference: 23
Get Part
9011908M46
Bolt, with washer
Diagram Reference: 24
Get Part
9017908M34
Nut
Diagram Reference: 25
Get Part
63V4851101
Hook, steering
Diagram Reference: 26
Get Part
9707508035
Bolt(70w)
Diagram Reference: 27
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 28
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 29
