Parts List

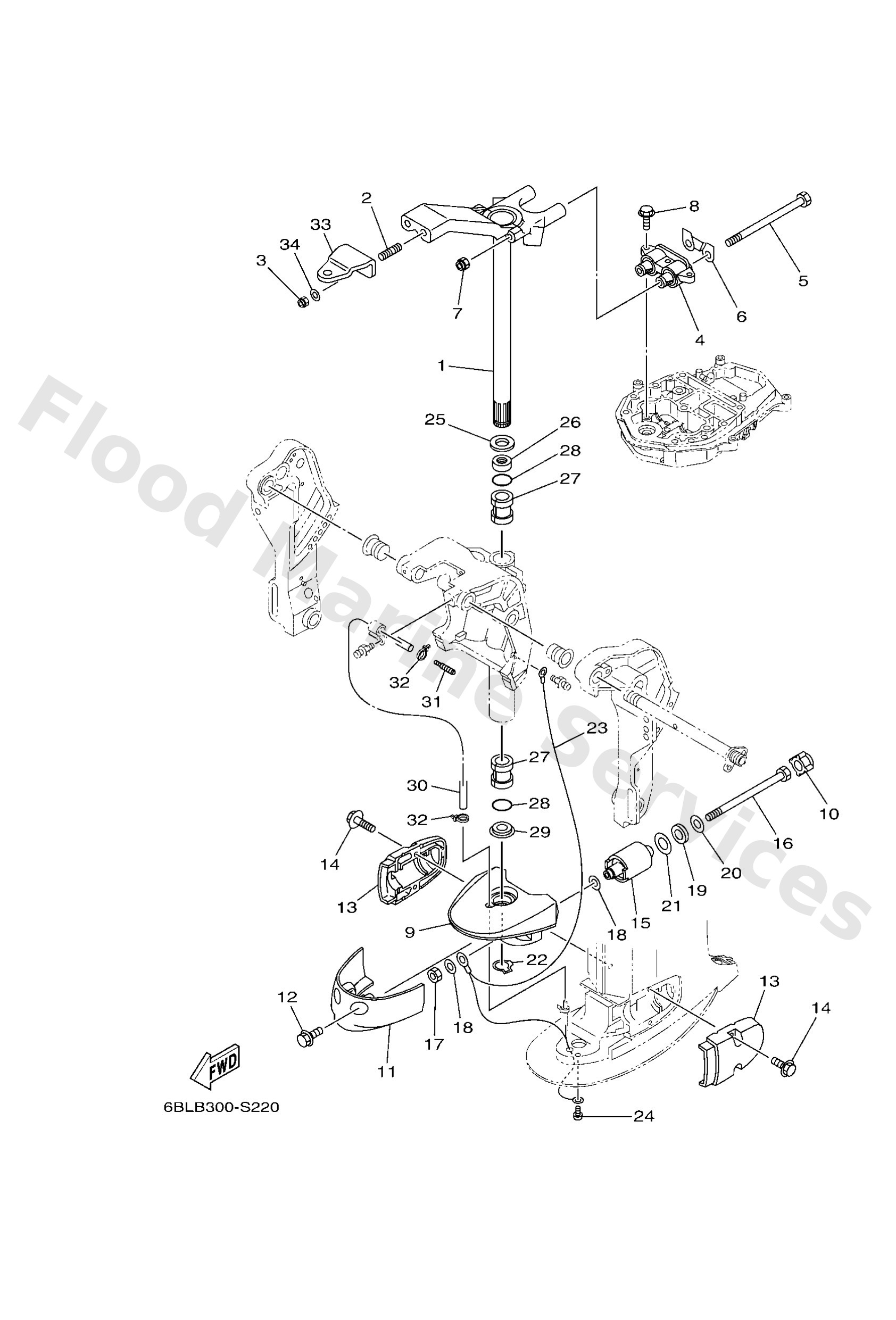

Steering bracket assembly
Diagram Reference: 1
Bolt, stud
Diagram Reference: 2
Nut, self-locking
Diagram Reference: 3
Mount damper, upper side
Diagram Reference: 4
Bolt
Diagram Reference: 5
Plate
Diagram Reference: 6
Nut, self-locking
Diagram Reference: 7
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Housing, lower mount rubber
Diagram Reference: 9
Damper, lower mount rubber
Diagram Reference: 10
Cover, lower mount
Diagram Reference: 11
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Housing, lower mount rubber 2
Diagram Reference: 13
Mount damper, lower side
Diagram Reference: 15
Bolt
Diagram Reference: 16
Nut(6t4)
Diagram Reference: 17
Washer, plate (679)
Diagram Reference: 18
Washer plate (663)
Diagram Reference: 19
Washer, plate (663)
Diagram Reference: 20
Washer, plate
Diagram Reference: 21
Circlip (688)
Diagram Reference: 22
Wire, lead 2
Diagram Reference: 23
Screw, pan head(6a3)
Diagram Reference: 24
Washer, plate(6h1)
Diagram Reference: 25
Bush(6h0)
Diagram Reference: 26
Bush(6h0)
Diagram Reference: 27
O-ring(6h1)
Diagram Reference: 28
Bush(6j8)
Diagram Reference: 29
Hose (l1160)
Diagram Reference: 30
End, nipple
Diagram Reference: 31
Clamp
Diagram Reference: 32
Hook, steering
Diagram Reference: 33
Washer, plate
Diagram Reference: 34
