Parts List

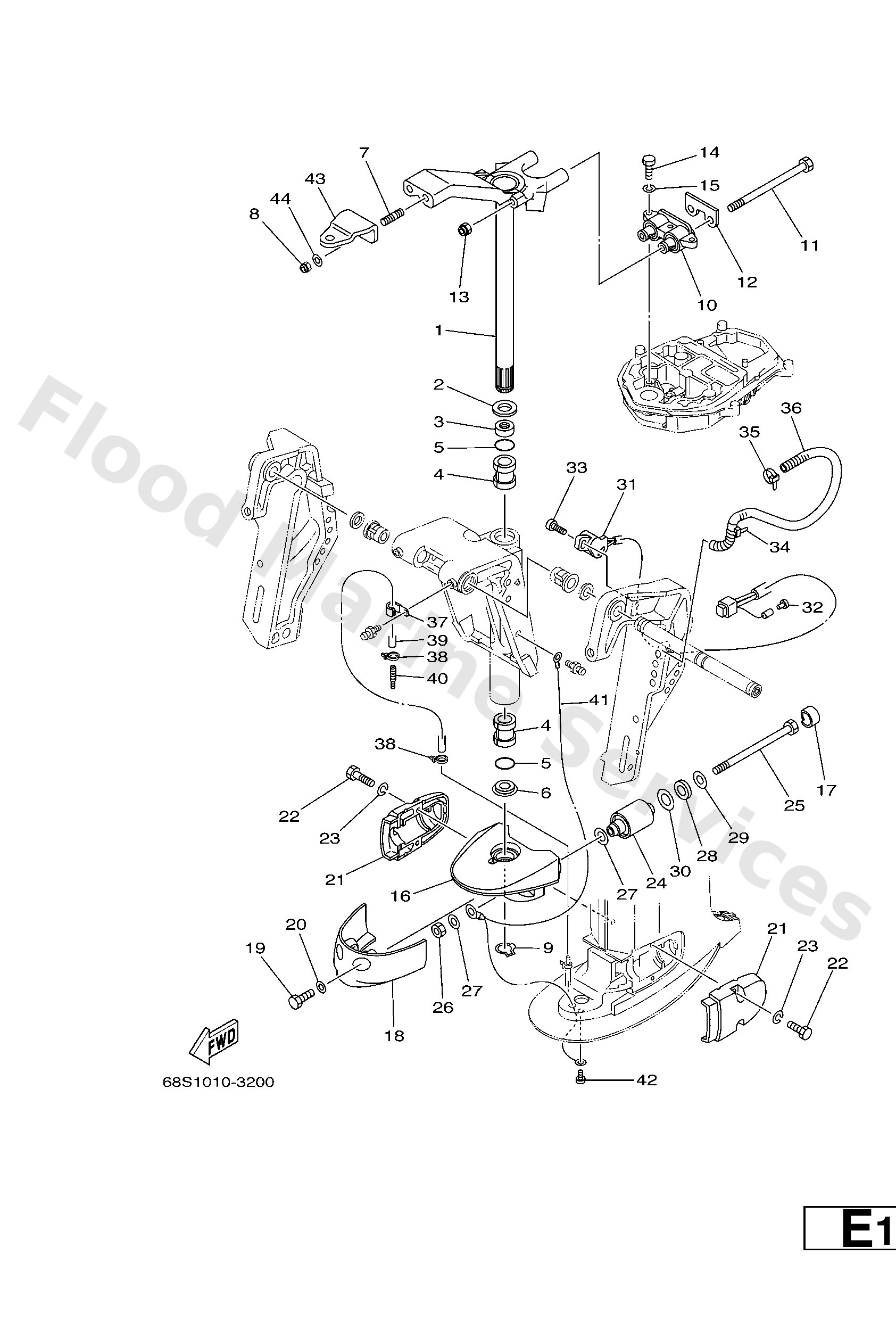

Steering bracket assembly
Diagram Reference: 1
Washer, plate(6h1)
Diagram Reference: 2
Bush(6h0)
Diagram Reference: 3
Bush(6h0)
Diagram Reference: 4
O-ring(6h1)
Diagram Reference: 5
Bush(6j8)
Diagram Reference: 6
Bolt, stud
Diagram Reference: 7
Nut, self-locking
Diagram Reference: 8
Circlip (688)
Diagram Reference: 9
Mount damper, upper side
Diagram Reference: 10
Bolt
Diagram Reference: 11
Plate
Diagram Reference: 12
Nut, self-locking
Diagram Reference: 13
Bolt, hexagon (fj1)
Diagram Reference: 14
Ybs67-8 washer, spring
Diagram Reference: 15
Housing, lower mount rubber 1
Diagram Reference: 16
Damper, lower mount rubber
Diagram Reference: 17
Cover, lower mount
Diagram Reference: 18
Bolt, hexagon
Diagram Reference: 19
Washer, plain (663)
Diagram Reference: 20
Housing, lower mount rubber
Diagram Reference: 21
Mount damper, lower side
Diagram Reference: 24
Bolt
Diagram Reference: 25
Nut(6t4)
Diagram Reference: 26
Washer, plate (679)
Diagram Reference: 27
Washer plate (663)
Diagram Reference: 28
Washer, plate (663)
Diagram Reference: 29
Washer, plate
Diagram Reference: 30
Trim sender
Diagram Reference: 31
Cover, lead wire
Diagram Reference: 32
Screw, pan head(6b0)
Diagram Reference: 33
Clamp
Diagram Reference: 34
Clamp
Diagram Reference: 35
Hose
Diagram Reference: 36
Clamp
Diagram Reference: 37
Hose (l1160)
Diagram Reference: 39
End, nipple
Diagram Reference: 40
Wire, lead 2
Diagram Reference: 41
Screw, pan head(6a3)
Diagram Reference: 42
Hook, steering
Diagram Reference: 43
Washer, plate
Diagram Reference: 44
