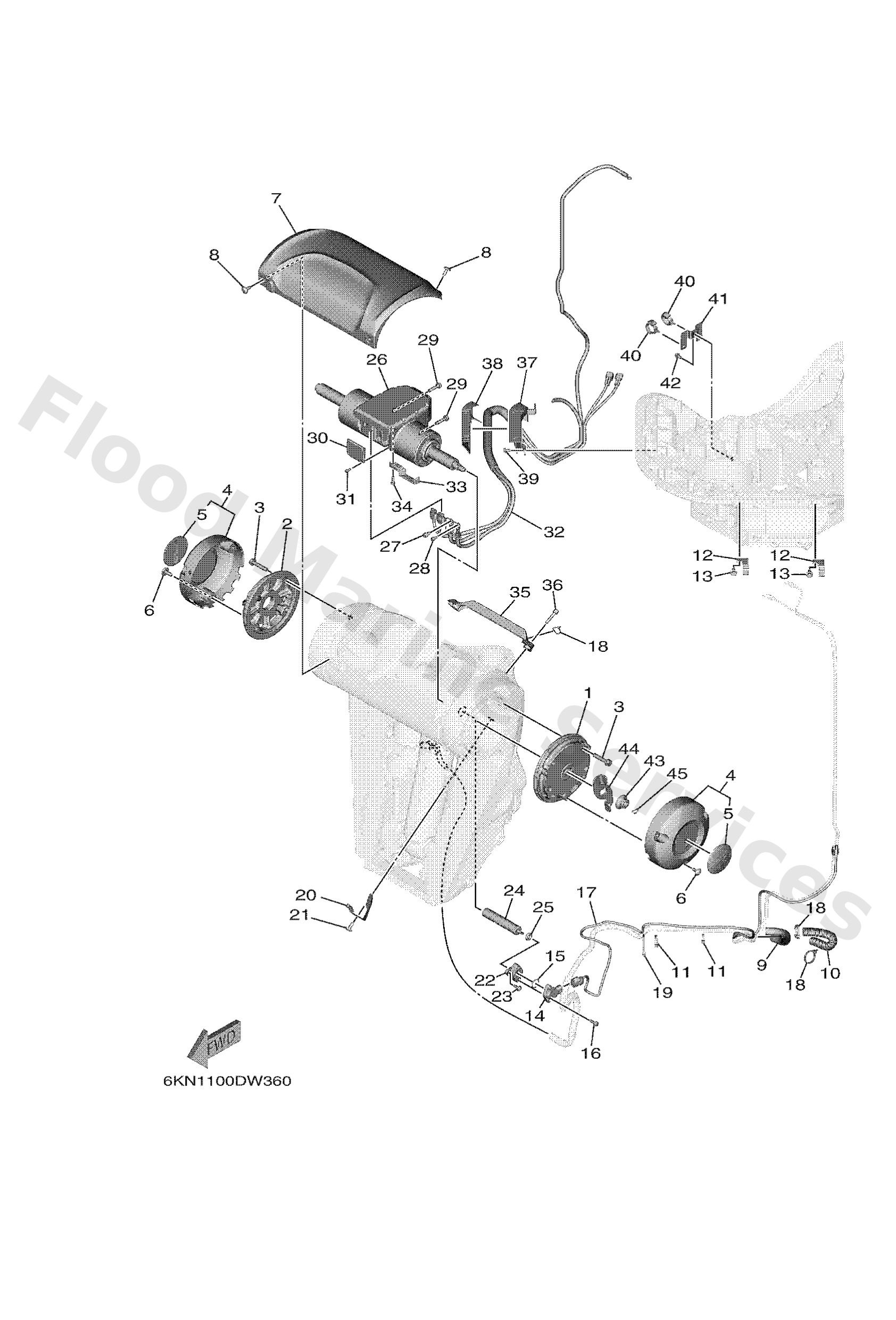

Parts List
Cover, swivel side 1
Diagram Reference: 1
Cover, swivel side 2
Diagram Reference: 2
Bolt, with washer
Diagram Reference: 3
Sbw side cover assembly
Diagram Reference: 4
Sbw side cover assembly
Diagram Reference: 4
Tuning fork mark
Diagram Reference: 5
Bolt,hex. socket button
Diagram Reference: 6
Cover
Diagram Reference: 7
Cover
Diagram Reference: 7
Tube
Diagram Reference: 9
Tube
Diagram Reference: 10
Clamp
Diagram Reference: 11
Clamp
Diagram Reference: 12
Bolt, flange deep recess
Diagram Reference: 13
Sensor angle
Diagram Reference: 14
O-ring(6u1)
Diagram Reference: 15
Bolt, with washer
Diagram Reference: 16
Extension, wire lead
Diagram Reference: 17
Clamp
Diagram Reference: 18
Clamp
Diagram Reference: 19
Plate
Diagram Reference: 20
Adaptor 1
Diagram Reference: 22
Screw
Diagram Reference: 23
Pin, upper shock mount
Diagram Reference: 24
O-ring
Diagram Reference: 25
Power steering cylinder assembly
Diagram Reference: 26
Bolt, 1
Diagram Reference: 27
Bolt, 2
Diagram Reference: 28
Bolt, with washer
Diagram Reference: 29
Cover
Diagram Reference: 30
Bolt,socket
Diagram Reference: 31
Steering, wire harness assembly
Diagram Reference: 32
Clamp, cable 1
Diagram Reference: 33
Bolt, hexagon deep recess
Diagram Reference: 34
Cover
Diagram Reference: 35
Bolt, hexagon socket head
Diagram Reference: 36
Protector
Diagram Reference: 37
Protector
Diagram Reference: 38
Clamp(jn2)
Diagram Reference: 40
Clamp, cable 2
Diagram Reference: 41
Nut
Diagram Reference: 43
Washer
Diagram Reference: 44
Pin, cotter
Diagram Reference: 45
