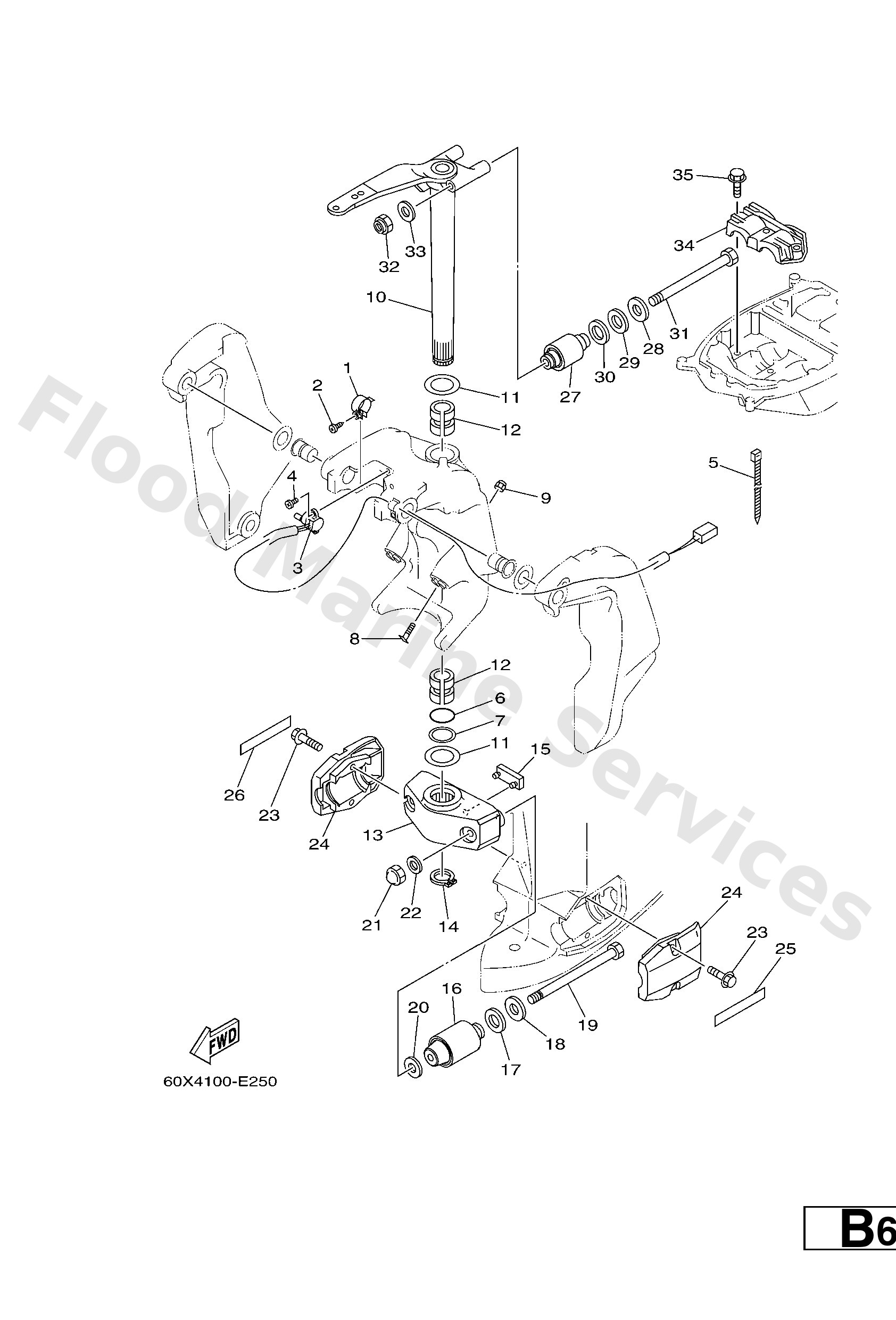

Parts List
Cam, trim sender (with screw)
Diagram Reference: 1
Screw, tapping(65j)
Diagram Reference: 2
Trim sender
Diagram Reference: 3
Screw, pan head(6b0)
Diagram Reference: 4
Clamp
Diagram Reference: 5
O-ring(61u)
Diagram Reference: 6
Washer, plate(61a)
Diagram Reference: 7
Bolt, thrust receiver
Diagram Reference: 8
Nut, nylon (6e5)
Diagram Reference: 9
Steering bracket assembly
Diagram Reference: 10
Washer, plate (6e5)
Diagram Reference: 11
Bush(6e5)
Diagram Reference: 12
Housing, lower mount rubber
Diagram Reference: 13
Circlip (6e5)
Diagram Reference: 14
Damper, lower mount rubber
Diagram Reference: 15
Mount damper, lower side
Diagram Reference: 16
Washer, plate (6e5)
Diagram Reference: 17
Washer, plate
Diagram Reference: 18
Bolt
Diagram Reference: 19
Washer, plate (6e5)
Diagram Reference: 20
Nut, crown (6e5)
Diagram Reference: 21
Washer (6e5)
Diagram Reference: 22
Bolt(6j9)
Diagram Reference: 23
Cover, lower mount
Diagram Reference: 24
Mark 1
Diagram Reference: 25
Mark 2
Diagram Reference: 26
Mount damper, upper side
Diagram Reference: 27
Washer, plate
Diagram Reference: 28
Washer, plate(61a)
Diagram Reference: 29
Washer, plate(61a)
Diagram Reference: 30
Bolt
Diagram Reference: 31
Nut, self-locking(61a)
Diagram Reference: 32
Cover, upper mount
Diagram Reference: 34
Bolt, with washer
Diagram Reference: 35
