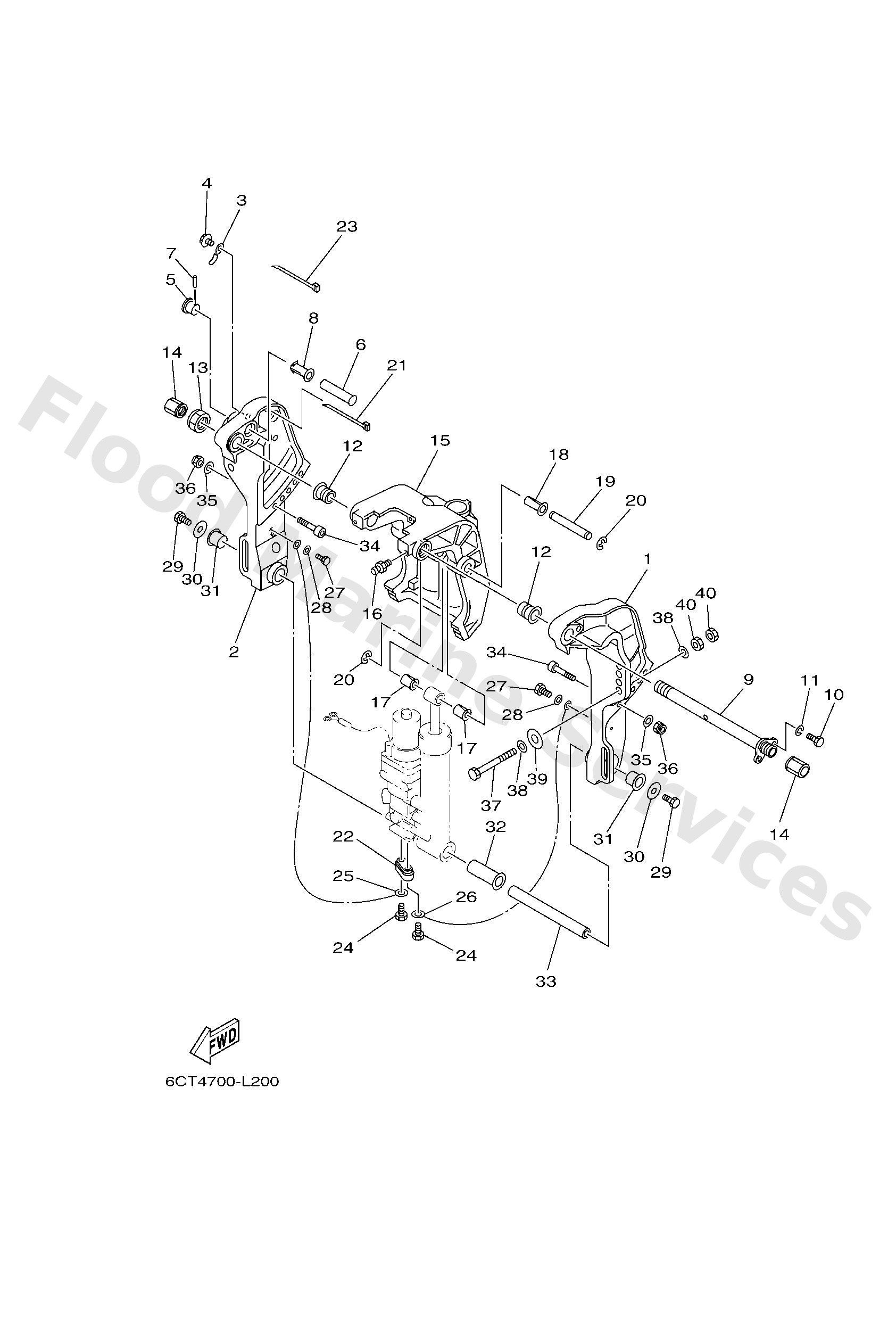

Parts List
Bracket, clamp 1
Diagram Reference: 1
Bracket, clamp
Diagram Reference: 2
Clamp
Diagram Reference: 3
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Knob, stopper
Diagram Reference: 5
Shaft, stopper
Diagram Reference: 6
926-51502-00 pin, spring (700)
Diagram Reference: 7
Bush
Diagram Reference: 8
Bolt, clamp bracket
Diagram Reference: 9
Bolt, hexagon
Diagram Reference: 10
Ybs67-8 washer, spring
Diagram Reference: 11
Bush
Diagram Reference: 12
Nut, self-locking
Diagram Reference: 13
Cap, clamp bracket
Diagram Reference: 14
Bracket, swivel 1
Diagram Reference: 15
Nipple, grease(6a1)
Diagram Reference: 16
Bush, solid
Diagram Reference: 17
Bush
Diagram Reference: 18
Pin
Diagram Reference: 19
Circlip
Diagram Reference: 20
Clamp (6e5)
Diagram Reference: 21
Anode
Diagram Reference: 22
Clamp
Diagram Reference: 23
Bolt
Diagram Reference: 24
Wire, lead
Diagram Reference: 25
Wire, lead 5
Diagram Reference: 26
Bolt(gj3)
Diagram Reference: 27
Washer, plain (646)
Diagram Reference: 28
Bolt
Diagram Reference: 29
Washer, plate(6e0)
Diagram Reference: 30
Bushing (6g5)
Diagram Reference: 31
Bush
Diagram Reference: 32
Pin, lower shock mount
Diagram Reference: 33
Bolt, hexagon socket head
Diagram Reference: 34
Washer, plate
Diagram Reference: 35
Nut, self-locking
Diagram Reference: 36
Bolt
Diagram Reference: 37
Washer, plate
Diagram Reference: 38
Washe, plate(663)
Diagram Reference: 39
Nut (707)
Diagram Reference: 40
