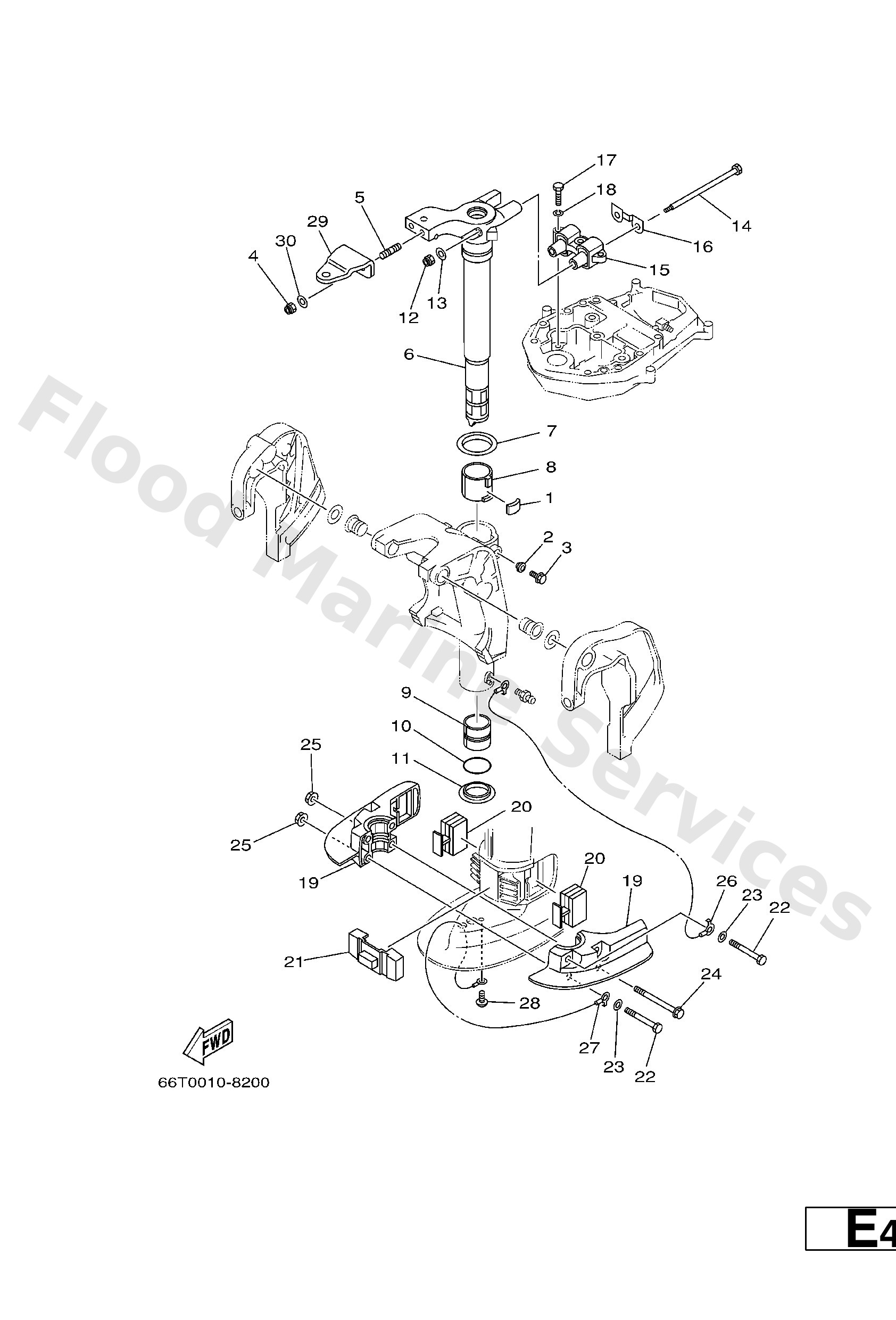

Diagram: BRACKET 3

Diagram

Parts List

648--42528--00
Plate, friction
Diagram Reference: 1
Get Part
65W--43373--00
Seal, damper
Diagram Reference: 2
Get Part
90105--08M76
Bolt, washer based
Diagram Reference: 3
Get Part
90185--10051
Nut, self-locking
Diagram Reference: 4
Get Part
90116--10M28
Bolt, stud
Diagram Reference: 5
Get Part
90209--52M00
Washer (676)
Diagram Reference: 7
Get Part
90386--52M02
Bushing (676)
Diagram Reference: 8
Get Part
90386--44M03
Bushing (676)
Diagram Reference: 9
Get Part
93210--43MJ0
O-ring
Diagram Reference: 10
Get Part
90386--44M99
Bush
Diagram Reference: 11
Get Part
90185--08045
Nut, self-locking
Diagram Reference: 12
Get Part
92995--08200
Ybs66-8 washer, plain
Diagram Reference: 13
Get Part
90101--08M86
Bolt (6h4)
Diagram Reference: 14
Get Part
66T--44526--00
Plate
Diagram Reference: 16
Get Part
97075--08030
Bolt, hexagon (fj1)
Diagram Reference: 17
Get Part
92995--08100
Ybs67-8 washer, spring
Diagram Reference: 18
Get Part
65W--44555--10
Mount damper, lower side
Diagram Reference: 20
Get Part
66T--44575--00
Damper, lower mount rubber
Diagram Reference: 21
Get Part
97075--10070
Bolt, hexagon w/w deep recess
Diagram Reference: 22
Get Part
92995--10600
Washer, plate
Diagram Reference: 23
Get Part
90119--10M04
Bolt, with washer
Diagram Reference: 24
Get Part
90179--10M33
Nut
Diagram Reference: 25
Get Part
66T--82127--00
Wire, lead 2
Diagram Reference: 26
Get Part
66T--82127--10
Wire, lead 2
Diagram Reference: 27
Get Part
97885--06008
Screw, pan head(6a3)
Diagram Reference: 28
Get Part
65W--48511--00
Hook, steering
Diagram Reference: 29
Get Part
90201--10120
Washer, plate
Diagram Reference: 30
Get Part
