Parts List

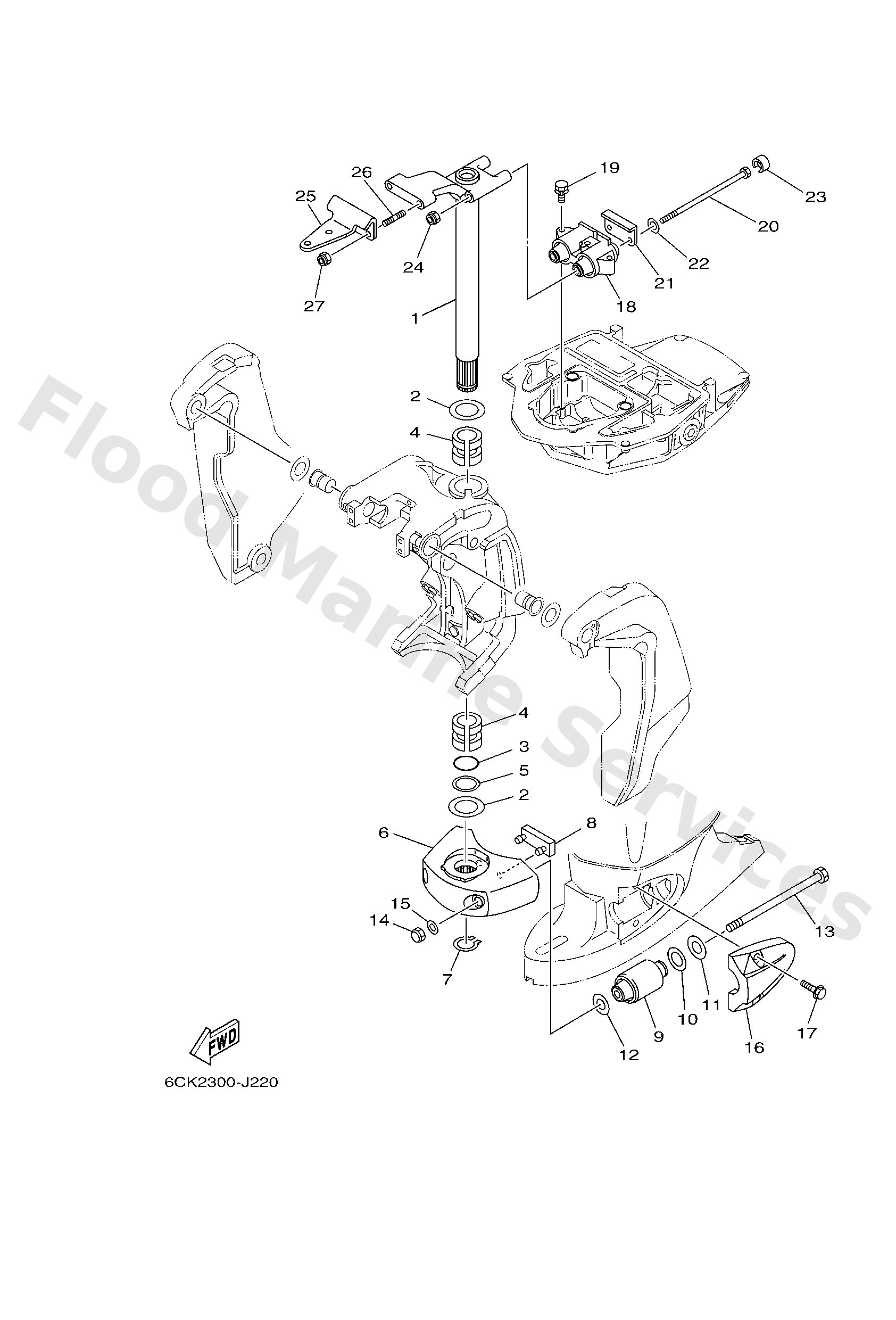

Steering bracket assembly
Diagram Reference: 1
Washer, plate (6e5)
Diagram Reference: 2
O-ring(61u)
Diagram Reference: 3
Bush(6e5)
Diagram Reference: 4
Washer, plate(61a)
Diagram Reference: 5
Housing, lower mount rubber
Diagram Reference: 6
Circlip (6e5)
Diagram Reference: 7
Damper, lower mount rubber
Diagram Reference: 8
Mount damper, lower side
Diagram Reference: 9
Washer, plate (6e5)
Diagram Reference: 10
Washer, plate (6e5)
Diagram Reference: 11
Washer, plate (6e5)
Diagram Reference: 12
Bolt
Diagram Reference: 13
Nut,hex. (ge6)
Diagram Reference: 14
Washer (6e5)
Diagram Reference: 15
Cover, lower mount
Diagram Reference: 16
Bolt, with washer
Diagram Reference: 17
Mount damper, upper side
Diagram Reference: 18
Bolt, with washer
Diagram Reference: 19
Bolt
Diagram Reference: 20
Plate
Diagram Reference: 21
Washer, plate
Diagram Reference: 22
Damper, upper mount rubber
Diagram Reference: 23
Nut, self-locking(6e5)
Diagram Reference: 24
Hook, steering
Diagram Reference: 25
Bolt, stud
Diagram Reference: 26
Nut, self-locking
Diagram Reference: 27
