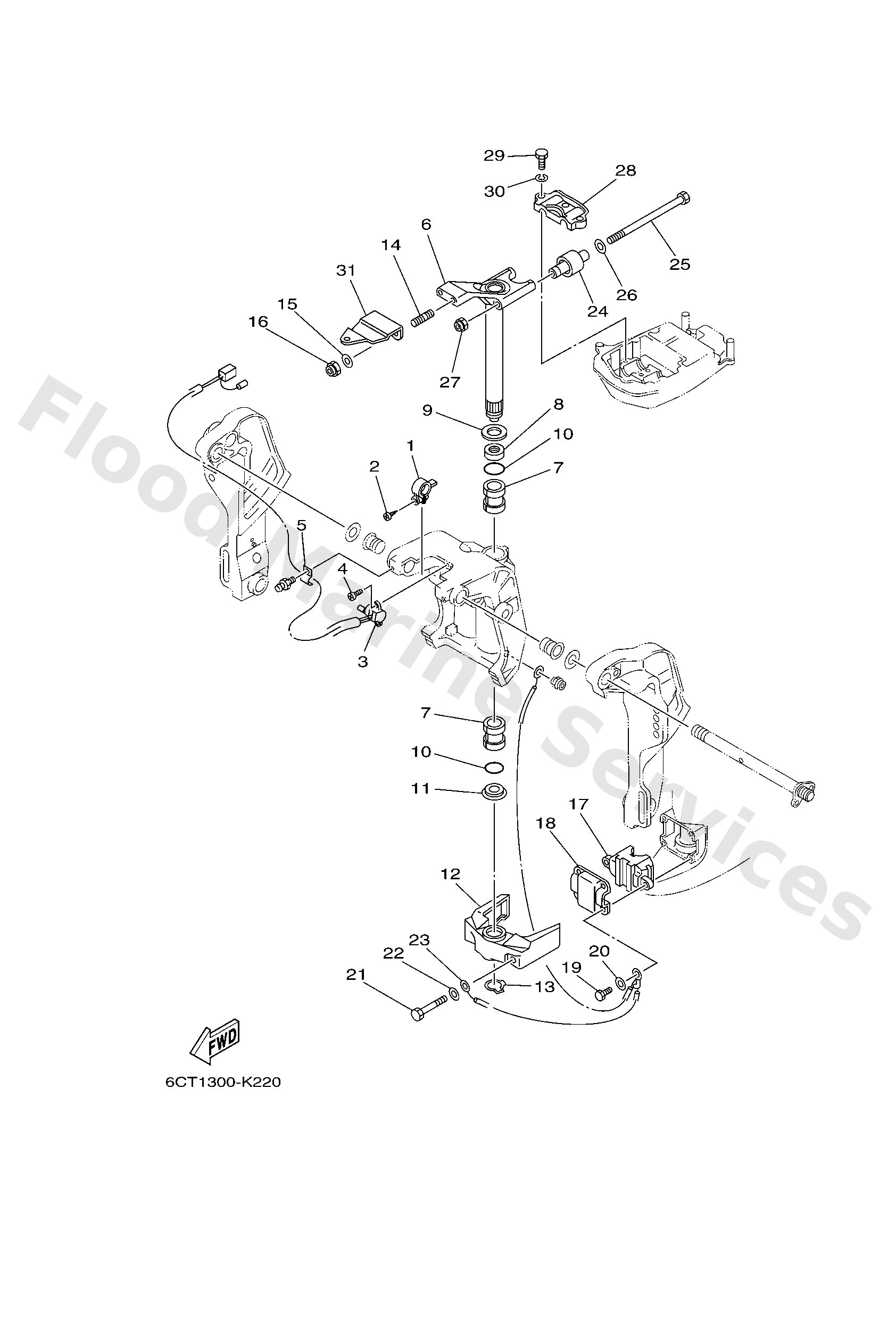

Parts List
Cam, trim sender (with screw)
Diagram Reference: 1
Screw, tapping(65j)
Diagram Reference: 2
Trim sender
Diagram Reference: 3
Screw, pan head(6b0)
Diagram Reference: 4
Clamp(61u)
Diagram Reference: 5
Steering bracket assembly
Diagram Reference: 6
Bush(6h0)
Diagram Reference: 7
Bush(6h0)
Diagram Reference: 8
Washer, plate(6h1)
Diagram Reference: 9
O-ring(6h1)
Diagram Reference: 10
Bush(6j8)
Diagram Reference: 11
Housing, lower mount rubber 1
Diagram Reference: 12
Circlip (688)
Diagram Reference: 13
Bolt, stud
Diagram Reference: 14
Washer, plate
Diagram Reference: 15
Nut, self-locking
Diagram Reference: 16
Mount, lower front
Diagram Reference: 17
Cover, lower mount
Diagram Reference: 18
Bolt (62g)
Diagram Reference: 19
Washer, plain (663)
Diagram Reference: 20
Bolt, hexagon
Diagram Reference: 21
Wire, lead 2
Diagram Reference: 23
Mount, upper side
Diagram Reference: 24
Bolt(6j8)
Diagram Reference: 25
Washer, plate (663)
Diagram Reference: 26
Nut, self-locking
Diagram Reference: 27
Cover, upper mount
Diagram Reference: 28
Bolt(70w)
Diagram Reference: 29
Ybs67-8 washer, spring
Diagram Reference: 30
Hook, steering
Diagram Reference: 31
