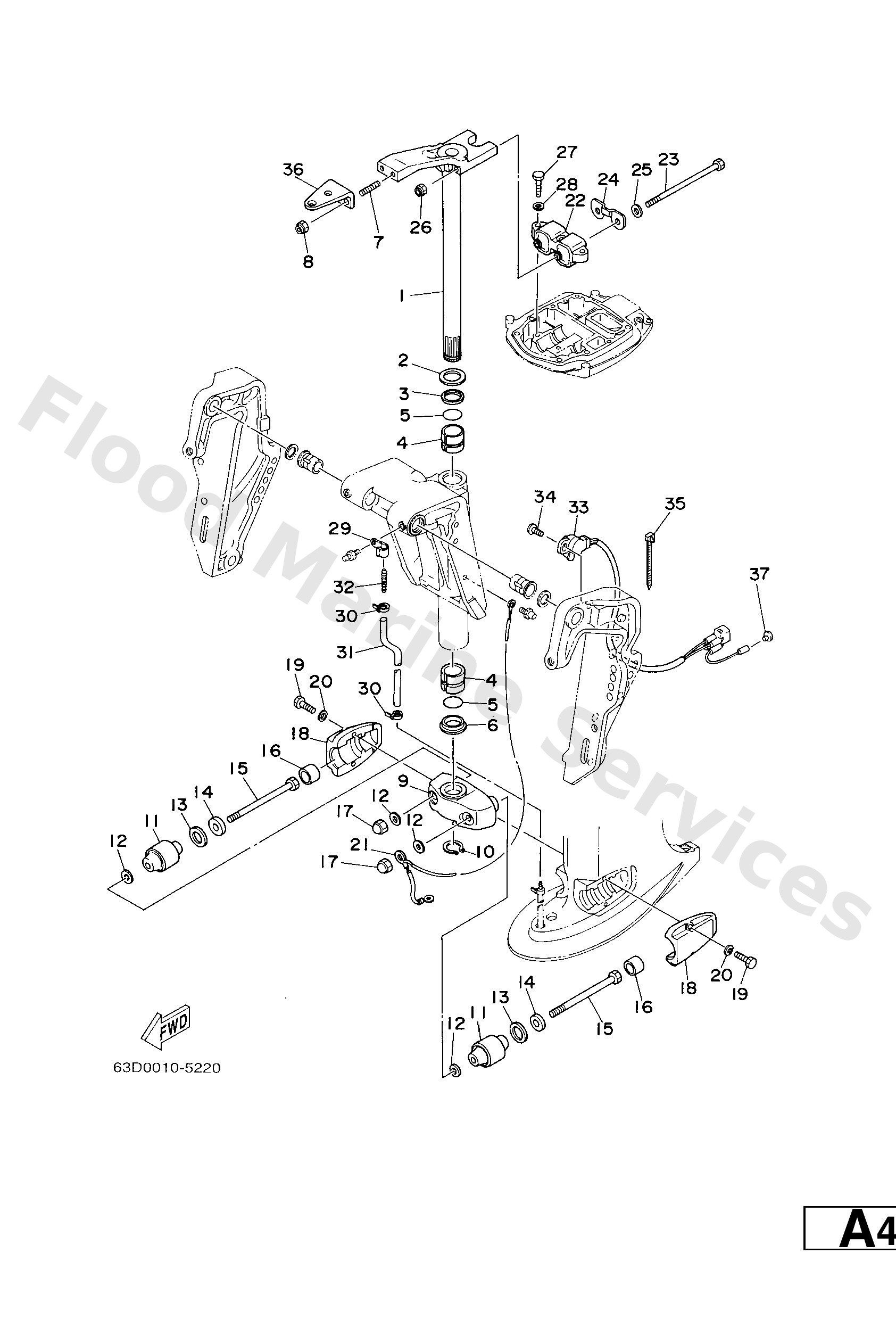

Parts List
Steering bracket assembly
Diagram Reference: 1
Steering bracket assembly
Diagram Reference: 1
Steering bracket assembly
Diagram Reference: 1
Washer, plate(6h1)
Diagram Reference: 2
Bush(6h0)
Diagram Reference: 3
Bush(6h0)
Diagram Reference: 4
O-ring(6h1)
Diagram Reference: 5
Bush(6j8)
Diagram Reference: 6
Bolt, stud
Diagram Reference: 7
Nut, self-locking
Diagram Reference: 8
Housing, lower mount rubber 1
Diagram Reference: 9
Circlip (688)
Diagram Reference: 10
Mount damper, lower side
Diagram Reference: 11
Mount damper, lower side
Diagram Reference: 11
Washer, plate (679)
Diagram Reference: 12
Washer, plate (663)
Diagram Reference: 13
Washer, plate (663)
Diagram Reference: 14
Bolt (6h3)
Diagram Reference: 15
Damper, lower mount rubber
Diagram Reference: 16
Nut crown(663)
Diagram Reference: 17
Housing, lower mount rubber
Diagram Reference: 18
Bolt, hexagon (fj1)
Diagram Reference: 19
Ybs67-8 washer, spring
Diagram Reference: 20
Wire, lead 2
Diagram Reference: 21
Wire, lead 2
Diagram Reference: 21
Mount damper, upper side
Diagram Reference: 22
Bolt
Diagram Reference: 23
Plate
Diagram Reference: 24
Washer, plate (663)
Diagram Reference: 25
Nut, self-locking
Diagram Reference: 26
Clamp
Diagram Reference: 29
Clamp
Diagram Reference: 30
Hose (l570)
Diagram Reference: 31
End, nipple
Diagram Reference: 32
Trim sender
Diagram Reference: 33
Screw, pan head(6b0)
Diagram Reference: 34
Clamp (6e5)
Diagram Reference: 35
Hook, steering
Diagram Reference: 36
Cover, lead wire
Diagram Reference: 37
