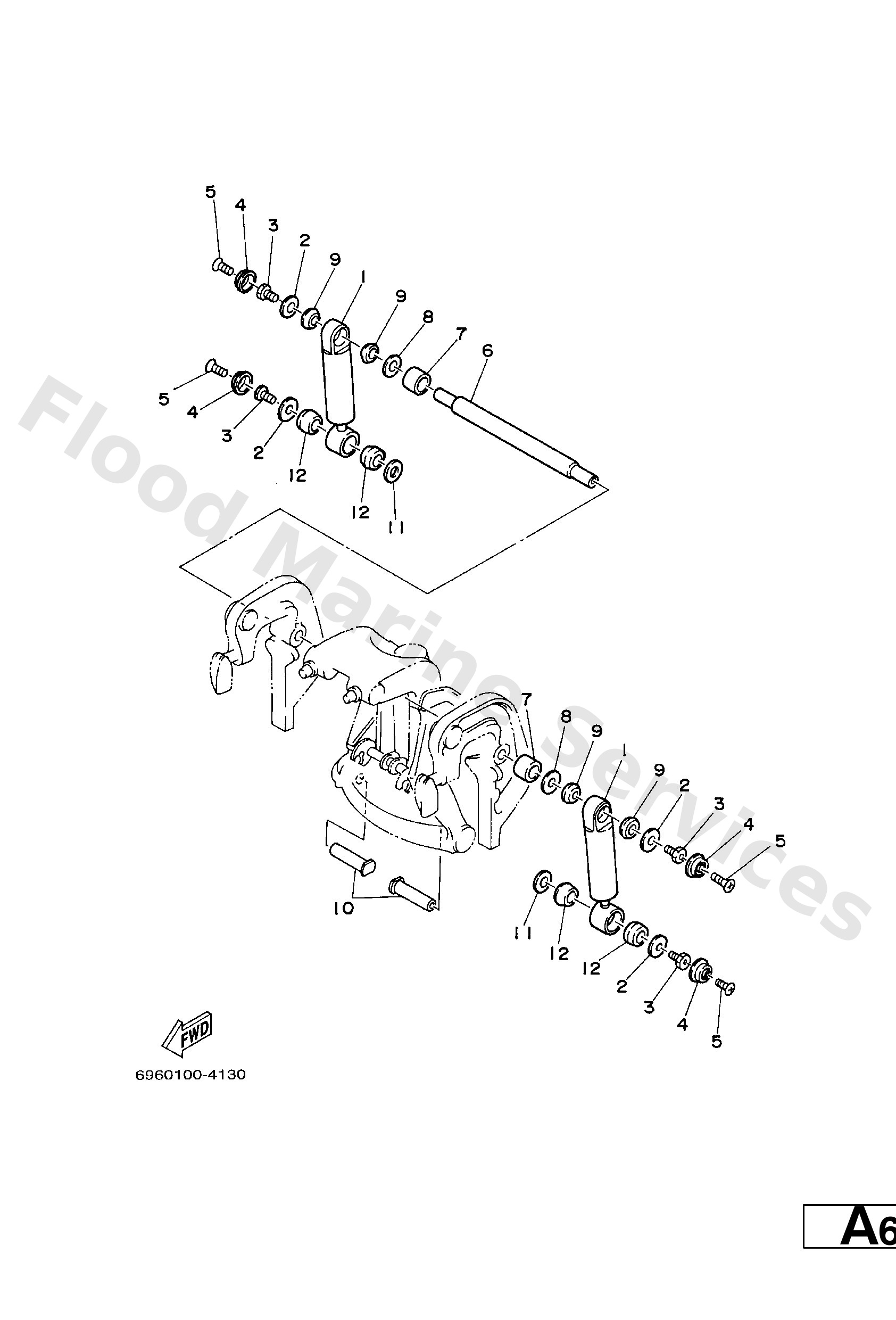

Diagram: BRACKET 6

Diagram

Parts List

663−43170−02−4D
Shock absorber assembly
Diagram Reference: 1
Get Part
90201−12426
Washe, plate(663)
Diagram Reference: 2
Get Part
90109−12263
Bolt(663)
Diagram Reference: 3
Get Part
663−43125−00
Cover, shock mount
Diagram Reference: 4
Get Part
98780−05015
Ybs53-516 screw,flat head
Diagram Reference: 5
Get Part
663−43126−00
Pin, upper shock mount
Diagram Reference: 6
Get Part
90560−25061
Spacer(663)
Diagram Reference: 7
Get Part
90201−19427
Washer, plate(663)
Diagram Reference: 8
Get Part
90385−19008
Bush(663)
Diagram Reference: 9
Get Part
663−43124−00
Pin, lower shock mount
Diagram Reference: 10
Get Part
90202−19059
Washer, plate(663)
Diagram Reference: 11
Get Part
90385−19007
Bush(663)
Diagram Reference: 12
