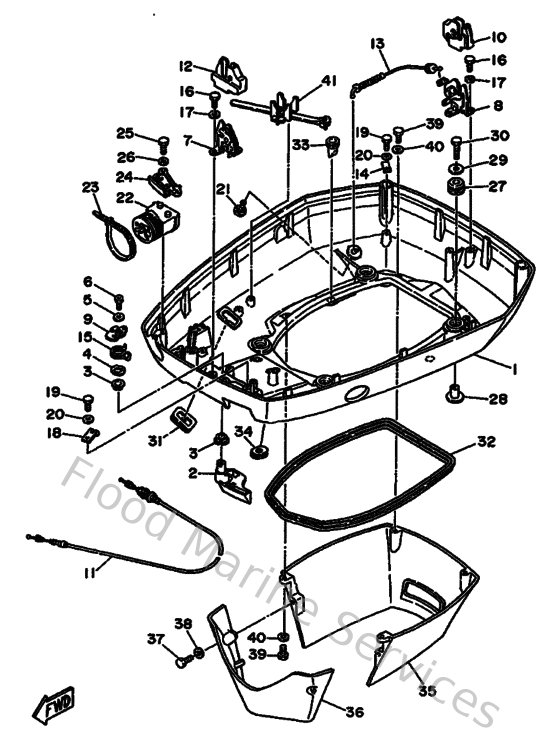

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
61A4271100EJ
Cowling, Bottom
Loading…

↗
3
9038613M8800
Bush(6r3)
Loading…

↗
4
9020613M1000
Washer, wave (6e5)
Loading…

↗
5
9020106M3000
Washer, plate (6a1)
Loading…

↗
6
9010906M5000
Bolt(61a)
Loading…

↗
7
6R3428110100
Stay
Loading…

↗
8
6R3428110000
Stay
Loading…

↗
9
6R3428160000
Lever, clamp
Loading…

↗
11
6R3428500000
Wire Complete
Loading…

↗
13
61A428500000
Wire, Complete
Loading…

↗
14
682441170000
Bracket 1
Loading…

↗
15
6R3428130000
Spring, clamp lever
Loading…

↗
16
973950601600
Bolt, hexagon deep recess
Loading…

↗
17
929900660000
Washer, plain (646)
Loading…

↗
18
6R3428280000
Plate, clamp
Loading…

↗
19
973950601000
Bolt
Loading…

↗
21
6E5443910000
Nipple, hose
Loading…

↗
23
9046513M3900
Clamp(6e8)
Loading…

↗
24
61A42738005B
Plate, fitting
Loading…

↗
27
9048022M1500
Grommet (6e5)
Loading…

↗
28
9038708M3700
Coller (6e5)
Loading…

↗
29
9020108M5400
Washer, plate (6e5)
Loading…

↗
30
970950803500
Bolt(70w)
Loading…

↗
32
61A427160000
Rubber seal 1
Loading…

↗
33
61A427170000
Rubber, seal 2
Loading…

↗
34
61A427270000
Grommet
Loading…

↗
37
970800603000
Bolt(jf7)
Loading…

↗
39
973950602000
Bolt(7u8)
Loading…

↗
41
688825940000
Clamp
Loading…

↗
