Yamaha Outboard Parts - Bottom Cowling - 40HM (1992) | Flood Marine

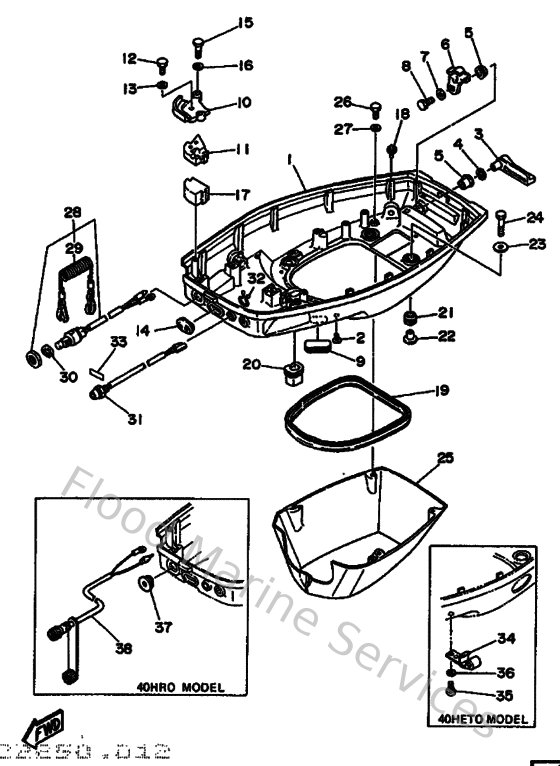

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


2
9033805M0300
Plug (6h1)
Loading…

↗
3
6H4428150000
Lever, clamp 1
Loading…

↗
4
902061205200
Washer, wave (666)
Loading…

↗
5
903861206900
Bush(666)
Loading…

↗
6
6H4428160000
Lever, clamp 2
Loading…

↗
7
9020106M0200
Washer,plate (6k8)
Loading…

↗
8
973130601000
Bolt
Loading…

↗
9
6H4427260000
Grommet
Loading…

↗
10
6H4485310094
Bracket, Remote Control 1
Loading…

↗
11
6H4485320094
Bracket, Remote Control 2
Loading…

↗
12
973950501600
Bolt(6a1)
Loading…

↗
13
929900560000
Washer, plain (646)
Loading…

↗
15
973950602000
Bolt(7u8)
Loading…

↗
16
929900660000
Washer, plain (646)
Loading…

↗
17
6H4427242000
Grommet
Loading…

↗
18
6E5443910000
Nipple, hose
Loading…

↗
19
6H4427160000
Rubber seal 1
Loading…

↗
20
682427270000
Grommet
Loading…

↗
21
9048009M2100
Grommet (6e9)
Loading…

↗
22
9038706M4100
Coller (6e9)
Loading…

↗
23
902010641600
Washer, plate(663)
Loading…

↗
24
973130603000
Bolt
Loading…

↗
26
970950601600
Bolt, hexagon deep recess
Loading…

↗
28
6H4825750000
Engine stop switch assembly
Loading…

↗
29
682825560000
Lanyard, stop switch
Loading…

↗
31
6J8854100000
Emergency signal light assembly
Loading…

↗
33
6H4854151000
Mark, signal lamp
Loading…

↗
34
6E5243670100
Clamp, fuel pipe 2
Loading…

↗
35
9015706M0100
Screw (6e5)
Loading…

↗
37
6H4427264000
Grommet
Loading…

↗
