Yamaha Outboard Parts - Bottom Cowling - FT25BE (2000) | Flood Marine

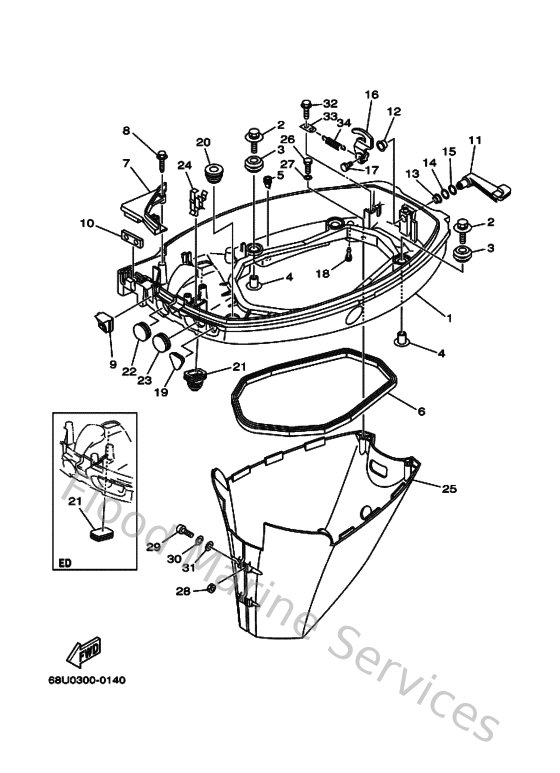

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
68U42710004D
Bottom cowling assembly
Loading…

↗
2
9011906M0800
Bolt, with washer
Loading…

↗
3
9048009M1200
Grommet (6a0)
Loading…

↗
4
9038706M6900
Collar (688)
Loading…

↗
5
65W427170000
Rubber, seal 2
Loading…

↗
6
62Y427160000
Rubber seal 1
Loading…

↗
7
65W42738014D
Plate, fitting
Loading…

↗
8
9010906M8200
Bolt
Loading…

↗
9
65W427252100
Grommet
Loading…

↗
10
62Y427270000
Grommet
Loading…

↗
11
65W42815014D
Lever, clamp 1
Loading…

↗
12
9038612M3700
Bushing (6f5)
Loading…

↗
13
9038612MA200
Bush
Loading…

↗
14
902061205200
Washer, wave (666)
Loading…

↗
15
9020112M0700
Washer, plate
Loading…

↗
16
65W428160300
Lever, Clamp
Loading…

↗
17
970800601200
Bolt(gh1)
Loading…

↗
18
6H3443910100
Nipple, hose
Loading…

↗
19
65W263261000
Grommet
Loading…

↗
20
68U427270000
Grommet
Loading…

↗
21
6H4427260000
Grommet
Loading…

↗
22
6G1427250000
Grommet
Loading…

↗
23
65W427261000
Grommet
Loading…

↗
24
9046525M5700
Clamp(63v)
Loading…

↗
25
68U42741004D
Apron
Loading…

↗
26
970800601400
Bolt(gj3)
Loading…

↗
27
929950660000
Washer, plain (646)
Loading…

↗
28
953800660000
Nut(661)
Loading…

↗
29
978800602500
Screw, pan head(6b0)
Loading…

↗
30
929950610000
Washer(6a1)
Loading…

↗
31
929900660000
Washer, plain (646)
Loading…

↗
32
9010906M8600
Bolt
Loading…

↗
33
66T431440000
Hook, spring
Loading…

↗
34
9050616M3400
Spring, tension(64d)
Loading…

↗
