50DEMTO (1989)
Bracket

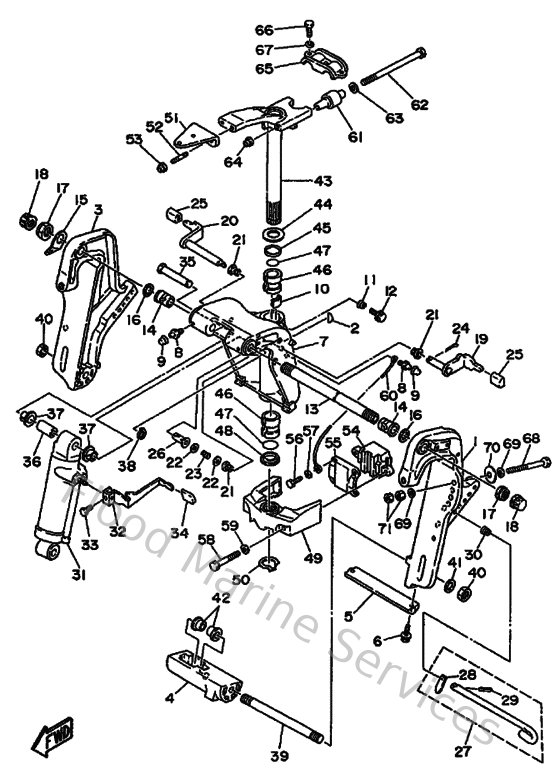

Diagram: Bracket
Parts List
Reference
Description
Price
5
6H1452510100
Anode set
Loading…
↗
6
9011906M5200
Bolt, hexagon w/w deep recess
Loading…
↗
8
9370006M0300
Nipple, grease(6a1)
Loading…
↗
9
663451190000
Cap, grease nipple
Loading…
↗
10
6J8425280000
Plate, friction
Loading…
↗
11
689433730100
Seal, damper
Loading…
↗
12
9010506M1800
Bolt (689)
Loading…
↗
13
6J8431310100
Bolt, clamp bracket
Loading…
↗
14
9038622M1500
Bushing (688)
Loading…
↗
15
6J8431130100
Plate, clamp bracket
Loading…
↗
16
902012242800
Washer, plate(64j)
Loading…
↗
17
901852204300
Nut, self-locking
Loading…
↗
18
663431450000
Cap, clamp bracket
Loading…
↗
19
6H5431810100
Lever, Tilt Stop
Loading…
↗
20
6H5431850100
Lever, Tilt Stop
Loading…
↗
21
9038610M1600
Bushing (688)
Loading…
↗
22
929901060000
Washer, plate
Loading…
↗
23
9050110M2100
Spring (688)
Loading…
↗
24
914903003000
Pin, cotter
Loading…
↗
25
663433180000
Cover
Loading…
↗
26
9038610M1900
Bush
Loading…
↗
27
676431600200
Tilt rod assembly
Loading…
↗
28
676431650000
Stopper plate, titl lock rod
Loading…
↗
29
916903001200
Pin, spring
Loading…
↗
30
9050210M0400
Spring, conical(6f5)
Loading…
↗
33
970850601000
Bolt
Loading…
↗
34
682433180100
Cover
Loading…
↗
35
6H5431260200
Pin, Upper Shock Mount
Loading…
↗
36
9038612M6500
Bush
Loading…
↗
37
9038612M6400
Bush(6h4)
Loading…
↗
38
9341012M0800
Circlip
Loading…
↗
39
9011618M2100
Bolt, Stud
Loading…
↗
40
9017018M1000
Nut (6h5)
Loading…
↗
41
929951860000
Washer(64j)
Loading…
↗
42
9038618M4400
Bushing (6g5)
Loading…
↗
43
6H44251009EJ
Steering Bracket assembly
Loading…
↗
44
9020130M0000
Washer, plate(6h1)
Loading…
↗
45
9038630M7800
Bush(6h0)
Loading…
↗
46
9038630M7700
Bush(6h0)
Loading…
↗
47
9321029M9400
O-ring(6h1)
Loading…
↗
48
9038630M6000
Bush(6j8)
Loading…
↗
50
9341028M0600
Circlip (688)
Loading…
↗
51
6H448511514D
Hook, Steering
Loading…
↗
52
901161017500
Bolt, stud
Loading…
↗
53
901851005100
Nut, self-locking
Loading…
↗
54
6H4445570000
Mount, lower front
Loading…
↗
55
6H4445530100
Cover, lower mount
Loading…
↗
56
970950802500
Bolt (62g)
Loading…
↗
57
929900860000
Washer, plain (663)
Loading…
↗
58
973951006000
Bolt, hexagon
Loading…
↗
61
6H4445140000
Mount, upper side
Loading…
↗
62
9010108M8600
Bolt (6h4)
Loading…
↗
63
902010942500
Washer, plate (663)
Loading…
↗
64
901850804500
Nut, self-locking
Loading…
↗
65
6H4445110000
Cover, Upper Mount
Loading…
↗
66
970900803500
Bolt(70w)
Loading…
↗
67
929900810000
Ybs67-8 washer, spring
Loading…
↗
68
9010112M6500
Bolt
Loading…
↗
69
929951220000
Ybs66-12 washer,plain
Loading…
↗
70
902011242600
Washe, plate(663)
Loading…
↗
71
953801260000
Nut (707)
Loading…
↗
