8CEM (1992)
Bracket 1

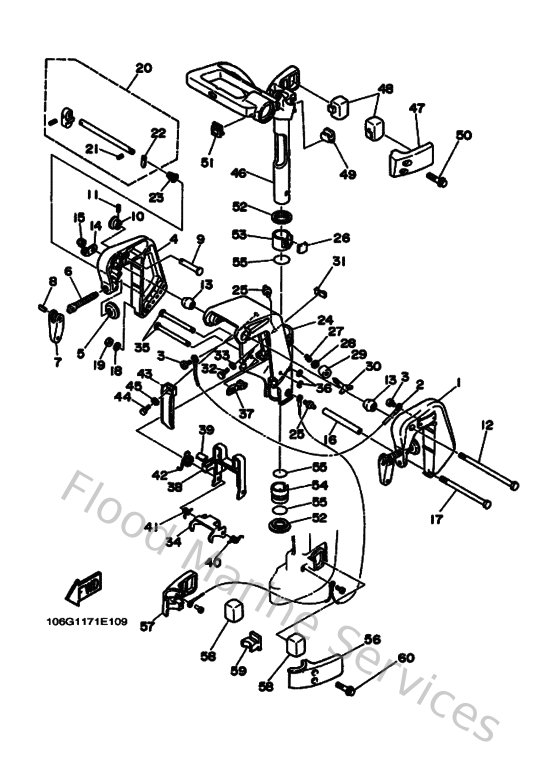

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
6G14311102EK
Bracket, Clamp 1
Loading…
↗
2
6E5821480000
Wire, lead 5
Loading…
↗
3
985800600800
Screw, pan head(6a3)
Loading…
↗
4
6G14311201EK
Bracket, Clamp 2
Loading…
↗
5
648431140100
Pad, transom clamp
Loading…
↗
6
677431160100
Screw, transom clamp.
Loading…
↗
7
6E0431180000
Handle, transom clamp
Loading…
↗
8
9024304M0100
Pin(6a1)
Loading…
↗
9
689431910000
Shaft, stopper
Loading…
↗
10
689431920100
Knob, stopper
Loading…
↗
11
916903001600
Pin, spring
Loading…
↗
12
901010886900
Bolt(6h6)
Loading…
↗
13
6G1431360000
Piece, friction
Loading…
↗
14
6A1431130100
Plate, clamp bracket
Loading…
↗
15
957800830000
Nut, nylon (6j8)
Loading…
↗
16
9038706M1300
Collar(6h6)
Loading…
↗
17
970950613500
Bolt(6g1)
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
953800660000
Nut(661)
Loading…
↗
20
6GH431600000
Tilt rod assembly
Loading…
↗
21
916903000800
Pin. spring(656)
Loading…
↗
22
656431650100
Plate, tilt lock
Loading…
↗
23
9050210M0600
Spring, conical(6g1)
Loading…
↗
24
6GH43311008D
Bracket, swivel 1
Loading…
↗
25
937000600400
Nipple, grease(6a1)
Loading…
↗
26
6G1425280000
Piece, friction
Loading…
↗
27
9050118M0000
Spring, compression (676)
Loading…
↗
28
929900860000
Washer, plain (663)
Loading…
↗
29
6G1433730000
Seal, damper
Loading…
↗
30
6G1425290000
Screw, friction piece
Loading…
↗
31
6G1445320000
Stopper, upper mount
Loading…
↗
32
970850601000
Bolt
Loading…
↗
34
6G1436140000
Plate, tilt lock
Loading…
↗
35
6G1436590000
Shaft, reverse lock
Loading…
↗
36
990800560000
Circlip(22k)
Loading…
↗
37
6G1436150100
Plate, tilt lock
Loading…
↗
38
6G1436810000
Lever, shallow water drive
Loading…
↗
39
6G1433180100
Cover
Loading…
↗
40
9050810M1500
Spring, torsion (6g1)
Loading…
↗
41
9050810M1600
Spring, torsion (6g1)
Loading…
↗
42
9050814M1700
Spring, torsion (6g1)
Loading…
↗
43
6G14273100EL
Carrying handle
Loading…
↗
44
970800801600
Bolt
Loading…
↗
46
6G14251104EK
Bracket, Steering (6G1-42511-03-Ek)
Loading…
↗
47
6G14451100EK
Cover, Upper Mt
Loading…
↗
48
6GH445140000
Mount damper, upper side
Loading…
↗
49
6G1445160000
Mount damper, upper front
Loading…
↗
50
958950603500
Bolt, flange(4nx)
Loading…
↗
51
6G1425510000
Grommet
Loading…
↗
52
6G1425350000
Washer, thrust 1
Loading…
↗
53
6G1425370000
Bushing, pivot shaft
Loading…
↗
54
6G1425380100
Bushing, pivot shaft
Loading…
↗
55
9321030M3100
O-ring (6a5)
Loading…
↗
57
6G14455202EK
Housing, Lwr Mount Rubber
Loading…
↗
58
6N0G4555A000
Mount damper, lower side
Loading…
↗
59
6G1445570000
Mount damper, lower front
Loading…
↗
