9.9FMH (2001)
Bracket 1

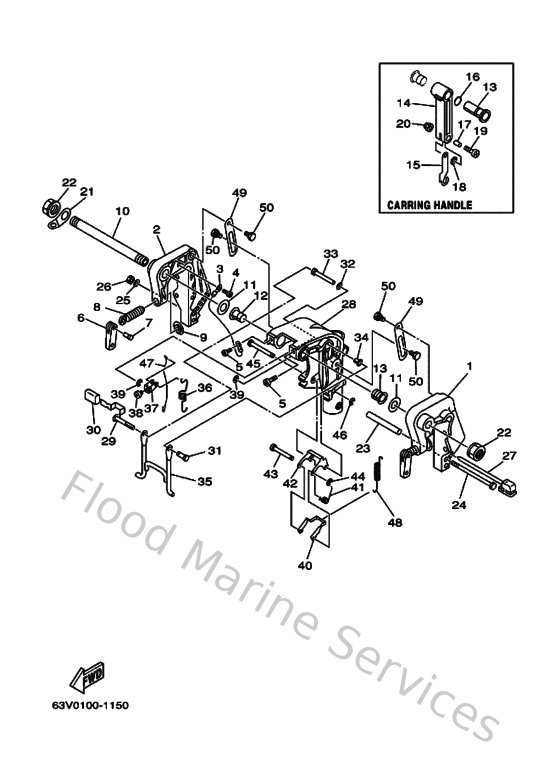

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
63V43111054D
Bracket, clamp 1
Loading…
↗
2
63V43112064D
Bracket, clamp 2
Loading…
↗
3
66M821480000
Wire, lead 4
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
978850801000
Rivet
Loading…
↗
6
6EEG31180000
Handle, transom cl
Loading…
↗
7
9024304M0100
Pin(6a1)
Loading…
↗
8
6E7431160000
Screw, transom clamp
Loading…
↗
9
648431140100
Pad, transom clamp
Loading…
↗
10
63W431310000
Bolt, Clamp Bracket
Loading…
↗
11
9020222M5400
Washer, plate(63v)
Loading…
↗
12
9038622M9400
Bush(63v)
Loading…
↗
13
9038622M6900
Bush(6k9)
Loading…
↗
14
63V42731004D
Carrying Handle
Loading…
↗
15
63V436760100
Hook
Loading…
↗
16
9321020M6500
O-ring
Loading…
↗
17
9038706M7500
Collar(63v)
Loading…
↗
18
902060801000
Washer(656)
Loading…
↗
19
978850602500
Screw, pan head(6b0)
Loading…
↗
20
957800630000
Nut, nylon (6g1)
Loading…
↗
21
6J8431130100
Plate, clamp bracket
Loading…
↗
22
63V431450000
Nut, self-locking
Loading…
↗
23
9038706M1300
Collar(6h6)
Loading…
↗
24
9010106M2900
Bolt, hexagon (682)
Loading…
↗
25
929900660000
Washer, plain (646)
Loading…
↗
26
953800670000
Nut
Loading…
↗
27
6L2431600000
Tilt rod assembly
Loading…
↗
28
63V43311034D
Bracket, swivel 1
Loading…
↗
29
66M436300100
Tilt lever assembly
Loading…
↗
30
682433180100
Cover
Loading…
↗
31
63V431910000
Shaft, stopper
Loading…
↗
32
9020207M6000
Washer, plate
Loading…
↗
33
9038707M0700
Collar
Loading…
↗
34
9038607M9500
Bush(63v)
Loading…
↗
35
66M433500100
Receiver assembly
Loading…
↗
36
9050720M0000
Spring, tension(63v)
Loading…
↗
37
63V436410100
Lever, tilt
Loading…
↗
38
985850500600
Screw, pan head
Loading…
↗
39
934300502700
Circlip(22k)
Loading…
↗
40
66R436140000
Plate, tilt lock
Loading…
↗
41
9050818M4100
Spring, torsion
Loading…
↗
42
66R436150000
Plate, tilt lock
Loading…
↗
43
66R436110000
Shaft, tilt lock
Loading…
↗
44
990800460000
Circlip (eu0)
Loading…
↗
45
63V436590000
Shaft, reverse lock
Loading…
↗
47
66R436170000
Rod, tilt lock
Loading…
↗
48
9050626M3800
Spring, reverse lock 1
Loading…
↗
49
63V431810000
Lever, tilt stop 1
Loading…
↗
50
9010906M8400
Bolt
Loading…
↗
