E8DMH (1999)
Bracket 1

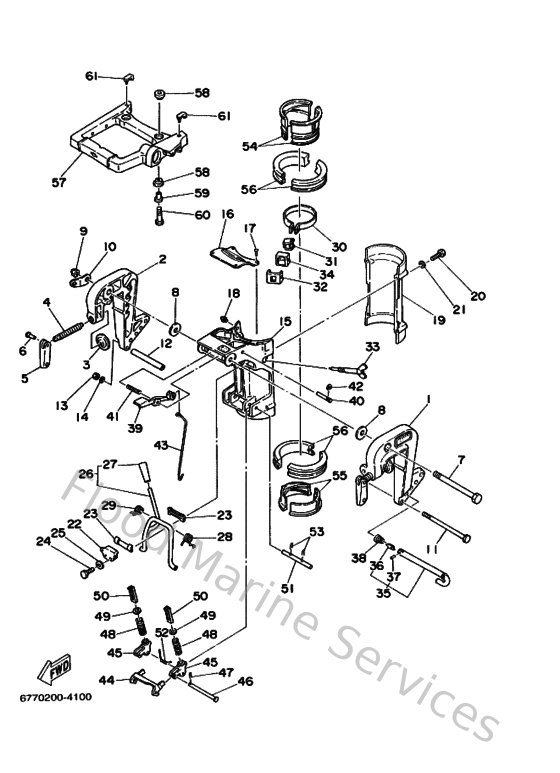

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
62043111024D
Bracket, clamp
Loading…
↗
2
62043112014D
Bracket, clamp
Loading…
↗
3
648431140100
Pad, transom clamp
Loading…
↗
4
677431160100
Screw, transom clamp.
Loading…
↗
5
66343118014D
Handle, transom clamp
Loading…
↗
6
902430400700
Pin (663)
Loading…
↗
7
9010110M0000
Bolt(6k3)
Loading…
↗
8
9020110M6600
Washer, plate (677)
Loading…
↗
9
901851005100
Nut, self-locking
Loading…
↗
10
6E7431130100
Plate, clamp bracket
Loading…
↗
11
901010633600
Bolt, hexagon (655)
Loading…
↗
12
9038706M1100
Collar
Loading…
↗
13
953800660000
Nut(661)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
67743311014D
Bracket, swivel 1
Loading…
↗
16
65543318004D
Cover
Loading…
↗
17
9026902M0800
Rivet(6l4)
Loading…
↗
18
9370006M0300
Nipple, grease(6a1)
Loading…
↗
19
64743312004D
Bracket, swivel
Loading…
↗
20
970950604000
Bolt (682)
Loading…
↗
22
654433130094
Bracket, swivel 3
Loading…
↗
23
620431890000
Bushing
Loading…
↗
24
970950602500
Bolt
Loading…
↗
27
620436320000
Knob, tilt
Loading…
↗
28
905081602100
Spring 6474318800
Loading…
↗
29
905081602000
Spring 6474319800
Loading…
↗
30
655425250000
Plate, friction 1
Loading…
↗
31
655425260000
Plate, friction 2
Loading…
↗
32
655425270000
Plate, friction 3
Loading…
↗
33
655425290000
Screw, fricition piece
Loading…
↗
34
655425320000
Cover 1
Loading…
↗
35
6L4431600000
Tilt rod assembly
Loading…
↗
36
689431650000
Plate, tilt lock
Loading…
↗
37
916903000800
Pin. spring(656)
Loading…
↗
38
9050210M0700
Spring, conical(6k3)
Loading…
↗
39
677436300000
Tilt lever assembly
Loading…
↗
40
9024904M0500
Pin (677)
Loading…
↗
41
905011610400
Spring 6474364200
Loading…
↗
42
990800460000
Circlip (eu0)
Loading…
↗
43
677436160000
Rod, tilt lock 1
Loading…
↗
44
647436140000
Plate, tilt lock 1
Loading…
↗
45
647436150100
Plate, tilt lock 2
Loading…
↗
46
902400504700
Pin with hole(655)
Loading…
↗
47
904681000500
Pin, hair 6264123500
Loading…
↗
48
905012614700
Spring 6474365600
Loading…
↗
49
647436270100
Stopper 1
Loading…
↗
50
647436130000
Arm, tilt lock
Loading…
↗
51
647436590000
Shaft, Reverse Lock
Loading…
↗
52
905081802200
Spring, Torsion
Loading…
↗
53
904681000300
Pin, hair 6474123500
Loading…
↗
54
647425370000
Bushing, pivot shaft
Loading…
↗
55
677425380000
Bushing, pivot shaft 2
Loading…
↗
56
655425390000
Bushing, pivot shaft
Loading…
↗
57
65542511004D
Bracket, steering
Loading…
↗
58
647425410000
Damper
Loading…
↗
59
655425420000
Pipe 1
Loading…
↗
60
970950803500
Bolt(70w)
Loading…
↗
61
647425230000
Spacer, friction
Loading…
↗
