E75BE (2001)
Bracket 3

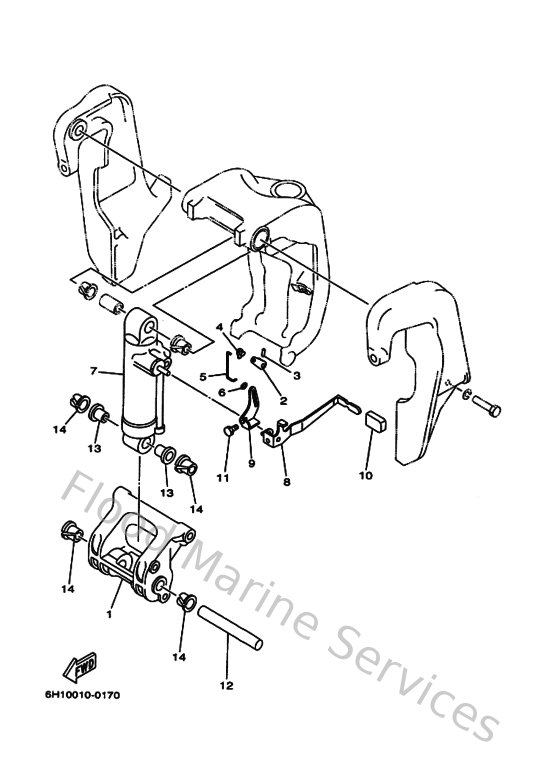

Diagram: Bracket 3
Parts List
Reference
Description
Price
1
68843128014D
Spacer, clamp bracket
Loading…
↗
2
688431860000
Lever
Loading…
↗
3
916903002000
Pin, spring (6h4)
Loading…
↗
4
6J8412620000
Joint, choke lever
Loading…
↗
5
688436160000
Rod, tilt lock
Loading…
↗
6
9020203M5100
Washer, plate(688)
Loading…
↗
7
68843170044D
Shock absorber sub-assembly
Loading…
↗
8
688436311000
Lever, tilt
Loading…
↗
9
688436510000
Lever, reverse lock1
Loading…
↗
10
682433180100
Cover
Loading…
↗
11
970800601000
Bolt
Loading…
↗
12
688431240200
Pin, lower shock mount
Loading…
↗
13
9038618M6300
Bush(6e5)
Loading…
↗
14
9038618M3500
Bush (688)
Loading…
↗
