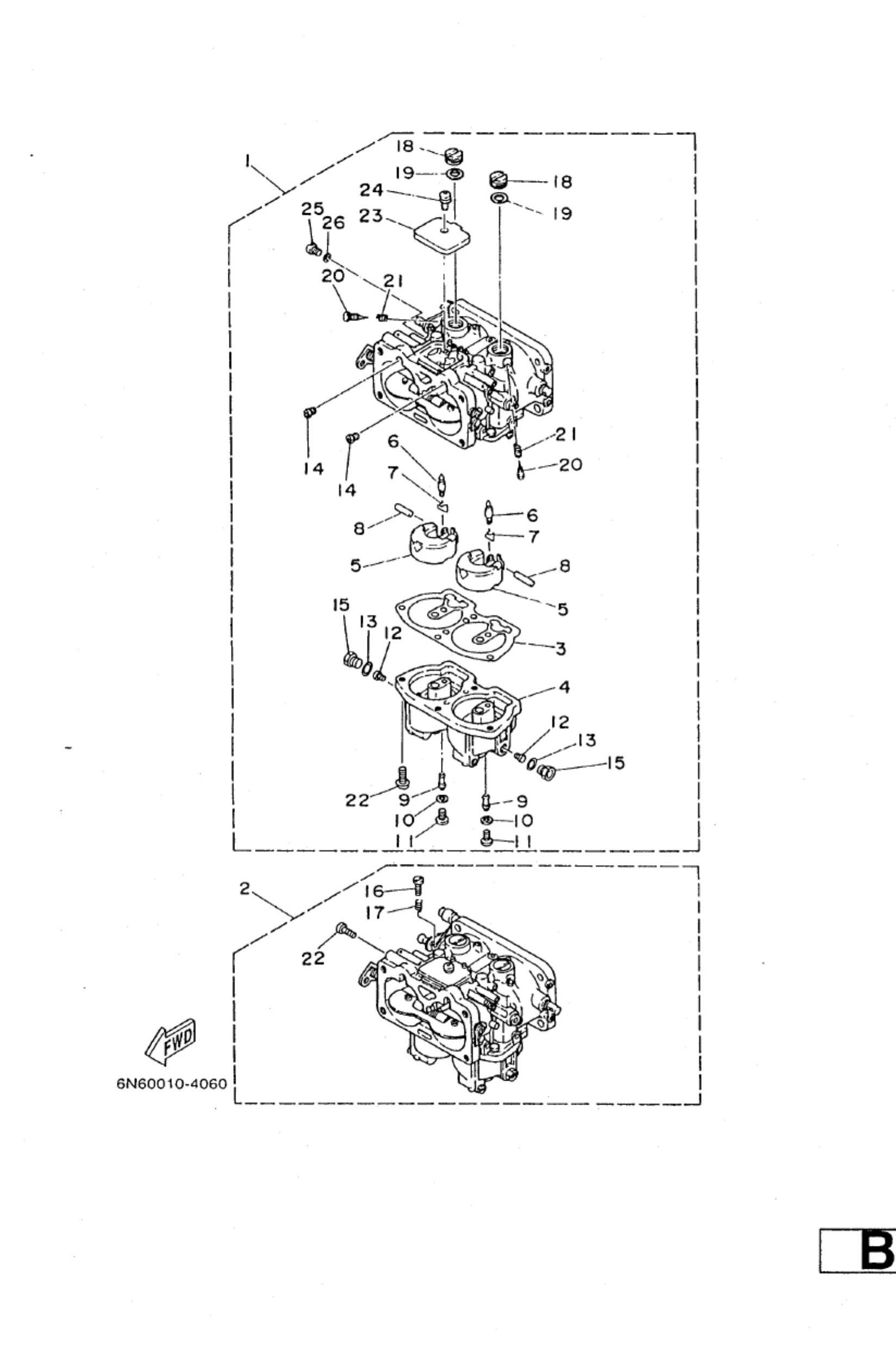

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Gasket
Diagram Reference: 2
Screw, flat head
Diagram Reference: 2
Screw, with washer
Diagram Reference: 2
Plate
Diagram Reference: 2
Screw, pan head
Diagram Reference: 2
Spring, Air Adjusting
Diagram Reference: 2
Screw, air adjusting
Diagram Reference: 2
{Gasket
Diagram Reference: 2
Plug
Diagram Reference: 2
Spring, throttle
Diagram Reference: 2
Screw, Throttle
Diagram Reference: 2
Screw, drain
Diagram Reference: 2
Jet, slow air (#60)
Diagram Reference: 2
Jet, main (#176)
Diagram Reference: 2
Valve, Drain
Diagram Reference: 2
Gasket
Diagram Reference: 2
Jet, air slow (#78)
Diagram Reference: 2
Pin, float
Diagram Reference: 2
Clip
Diagram Reference: 2
Valve, needle
Diagram Reference: 2
Float
Diagram Reference: 2
Body, float chamber
Diagram Reference: 2
Gasket, float chamber
Diagram Reference: 2
Carburetor assembly 2
Diagram Reference: 2
