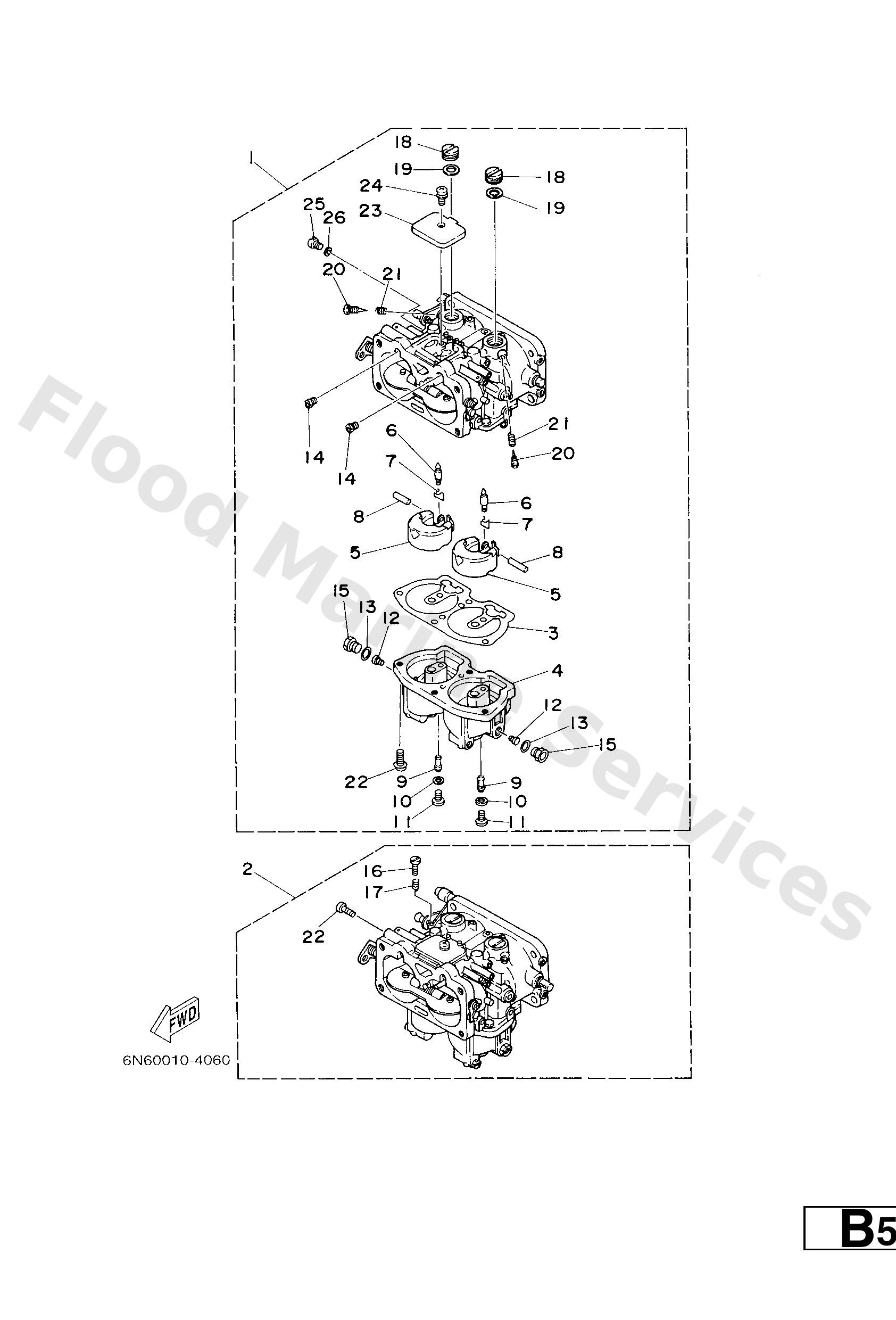

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Gasket, float chamber
Diagram Reference: 3
Body, float chamber
Diagram Reference: 4
Float
Diagram Reference: 5
Valve, needle
Diagram Reference: 6
Clip
Diagram Reference: 7
Pin, float
Diagram Reference: 8
Jet, air slow (#78)
Diagram Reference: 9
Gasket
Diagram Reference: 10
Valve, drain
Diagram Reference: 11
Jet, main (#176)
Diagram Reference: 12
Gasket
Diagram Reference: 13
Jet, slow air (#60)
Diagram Reference: 14
Screw, drain
Diagram Reference: 15
Screw, throttle
Diagram Reference: 16
Spring, throttle
Diagram Reference: 17
Plug
Diagram Reference: 18
Gasket
Diagram Reference: 19
Screw, air adjusting
Diagram Reference: 20
Spring, air adjusting
Diagram Reference: 21
Screw, pan head
Diagram Reference: 22
Plate
Diagram Reference: 23
Screw, with washer
Diagram Reference: 24
Screw, flat head
Diagram Reference: 25
Gasket, drin screw
Diagram Reference: 26
