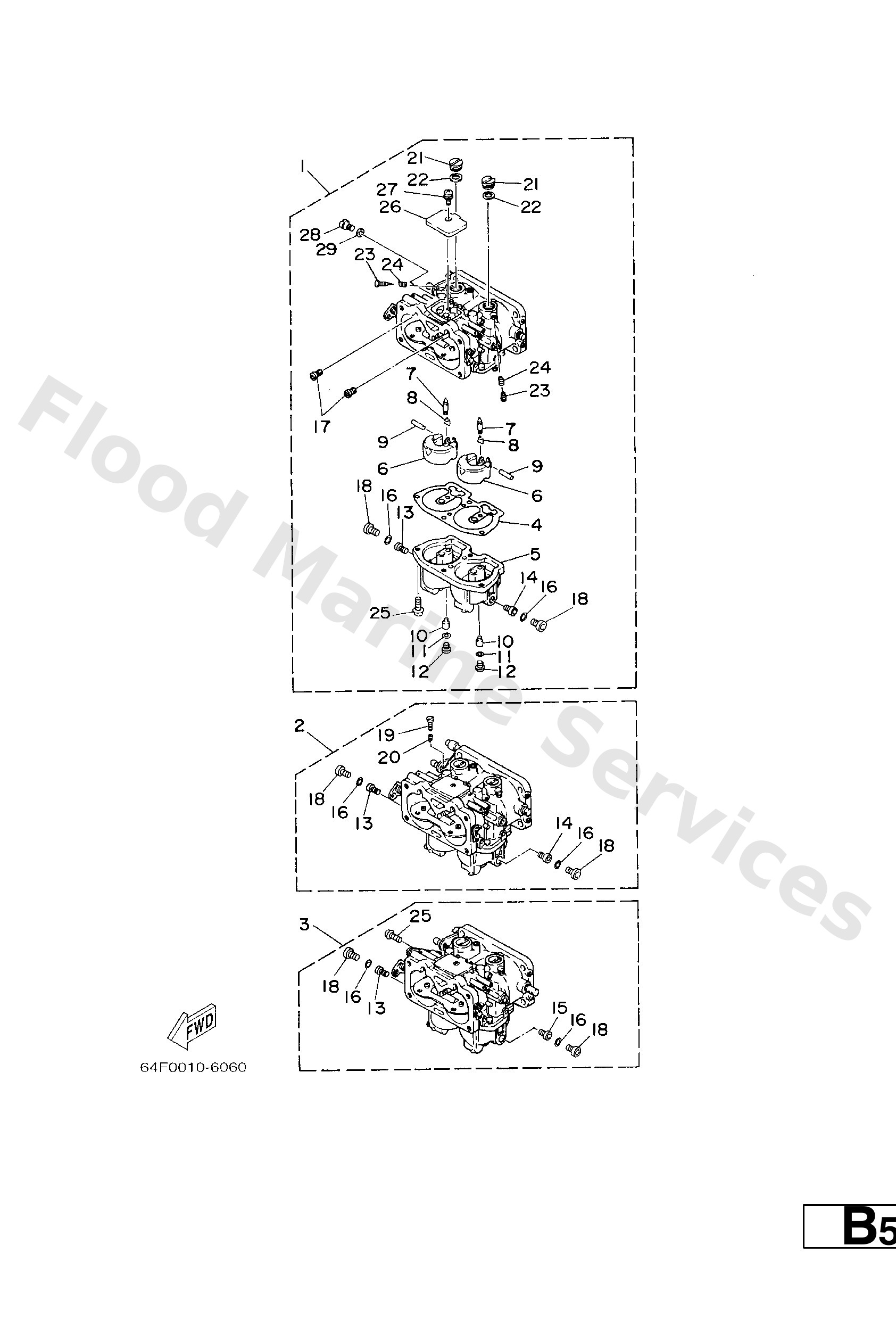

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Gasket, float chamber
Diagram Reference: 4
Body, float chamber
Diagram Reference: 5
Float
Diagram Reference: 6
Valve, needle
Diagram Reference: 7
Clip
Diagram Reference: 8
Pin, float
Diagram Reference: 9
Jet, air slow
Diagram Reference: 10
Gasket
Diagram Reference: 11
Valve, drain
Diagram Reference: 12
Jet, main
Diagram Reference: 13
Jet, main
Diagram Reference: 14
Jet, main
Diagram Reference: 15
Gasket
Diagram Reference: 16
Jet, slow air (#60)
Diagram Reference: 17
Screw, drain
Diagram Reference: 18
Screw, throttle
Diagram Reference: 19
Spring, throttle
Diagram Reference: 20
Plug
Diagram Reference: 21
Gasket
Diagram Reference: 22
Screw, air adjusting
Diagram Reference: 23
Spring, air adjusting
Diagram Reference: 24
Screw, pan head
Diagram Reference: 25
Plate
Diagram Reference: 26
Screw, with washer
Diagram Reference: 27
Screw, flat head
Diagram Reference: 28
Gasket, drin screw
Diagram Reference: 29
