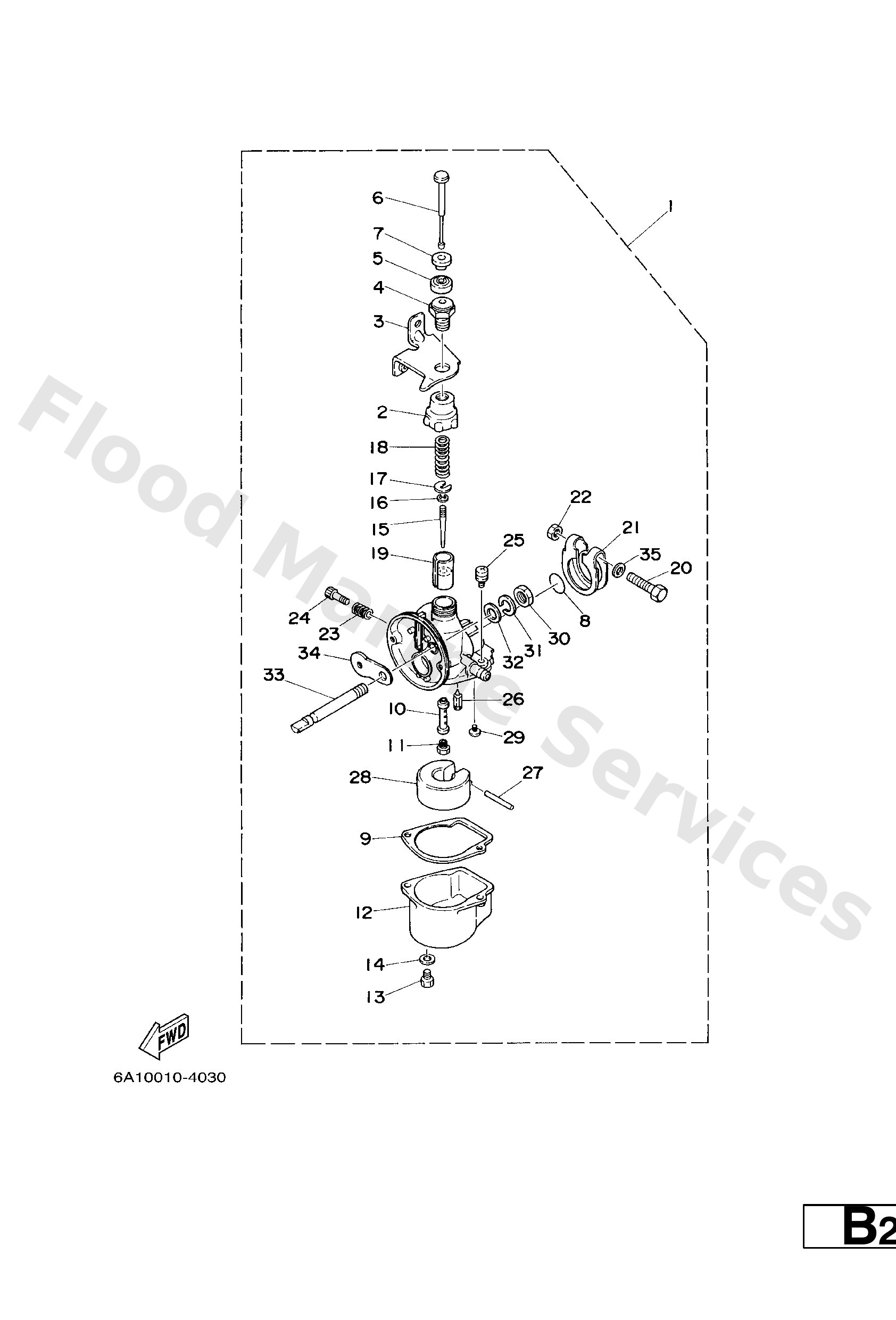

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Top, mixing chamber
Diagram Reference: 2
Stay, throttle wire
Diagram Reference: 3
Screw, throttle
Diagram Reference: 4
Bar, throttle
Diagram Reference: 6
Spacer
Diagram Reference: 7
O-ring
Diagram Reference: 8
Gasket, float chamber
Diagram Reference: 9
Nozzle, main
Diagram Reference: 10
Jet, Main (# 96)
Diagram Reference: 11
Body, float chamber
Diagram Reference: 12
Screw,panhead (eg9)
Diagram Reference: 13
Gasket
Diagram Reference: 14
Clip
Diagram Reference: 16
Seat, spring
Diagram Reference: 17
Spring,throttle valve
Diagram Reference: 18
Valve, throttle
Diagram Reference: 19
Clip
Diagram Reference: 21
Nut
Diagram Reference: 22
Screw, pilot adjusting
Diagram Reference: 24
Screw, pan head (e56)
Diagram Reference: 25
Valve, needle
Diagram Reference: 26
Pin, float
Diagram Reference: 27
Float
Diagram Reference: 28
Screw, pan head(78g)
Diagram Reference: 29
Nut
Diagram Reference: 30
Washer
Diagram Reference: 31
Washer
Diagram Reference: 32
Lever, choke valve
Diagram Reference: 33
Washer, plain (646)
Diagram Reference: 35
