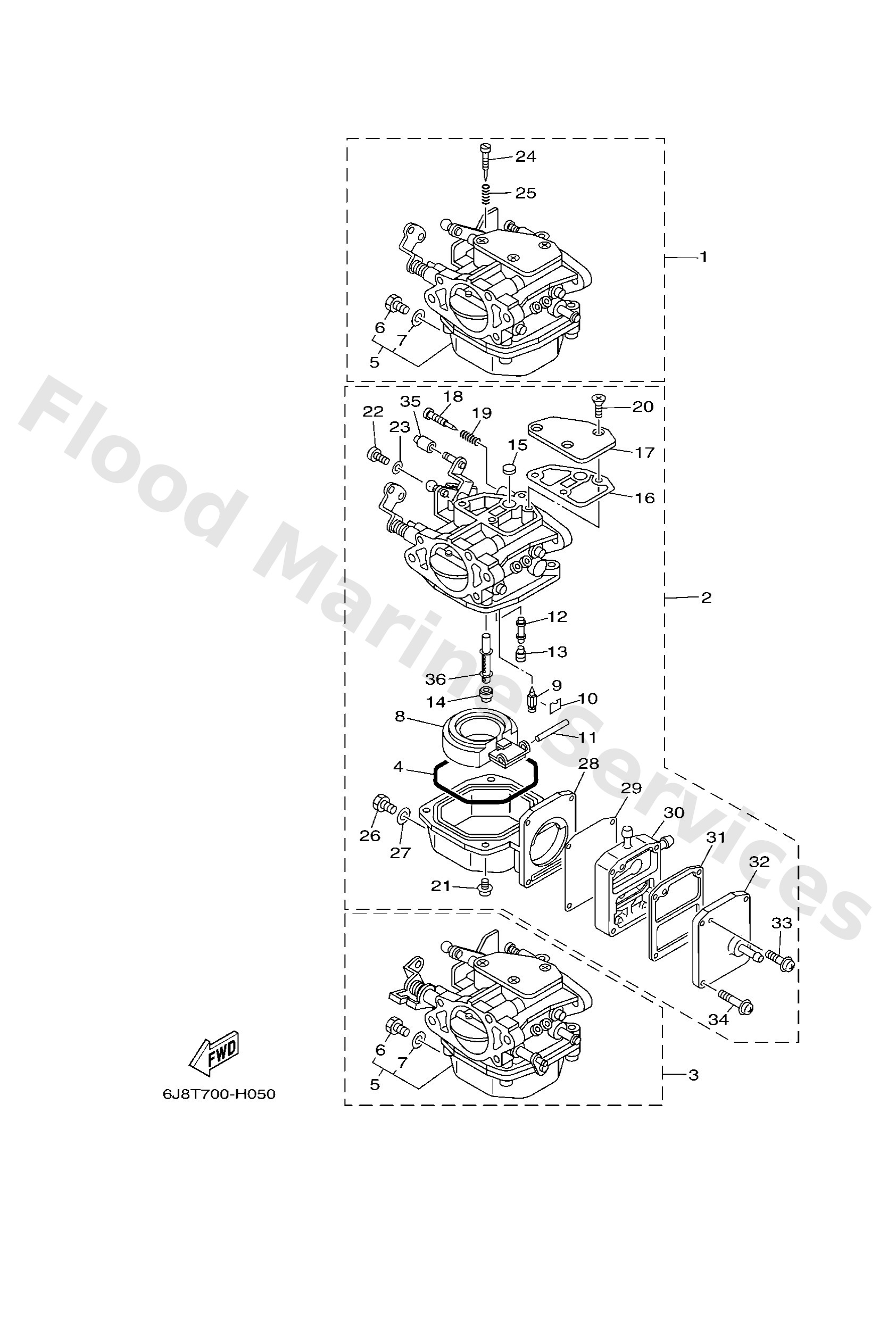

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Gasket, float chamber
Diagram Reference: 4
Body, float chamber
Diagram Reference: 5
Screw, drain
Diagram Reference: 26
Gasket, drin screw
Diagram Reference: 27
Float
Diagram Reference: 8
Valve, needle
Diagram Reference: 9
Clip
Diagram Reference: 10
Pin, float
Diagram Reference: 11
Jet, air slow
Diagram Reference: 12
Plug
Diagram Reference: 13
Jet, main
Diagram Reference: 14
Plug
Diagram Reference: 15
Gasket
Diagram Reference: 16
Plate
Diagram Reference: 17
Screw, pilot
Diagram Reference: 18
Spring, air adjusting
Diagram Reference: 19
Screw, with washer(6m6)
Diagram Reference: 20
Screw, pan head (686)
Diagram Reference: 21
Screw
Diagram Reference: 22
Washer, plain (646)
Diagram Reference: 23
Screw, stop
Diagram Reference: 24
Spring, throttle
Diagram Reference: 25
Body, float chamber
Diagram Reference: 28
Diaphragm
Diagram Reference: 29
Body comp (with valve)
Diagram Reference: 30
Gasket, fuel pump 2
Diagram Reference: 31
Cover
Diagram Reference: 32
Screw, with washer(6j8)
Diagram Reference: 33
Screw, with washer(6j8)
Diagram Reference: 34
Collar
Diagram Reference: 35
Nozzle, main
Diagram Reference: 36
