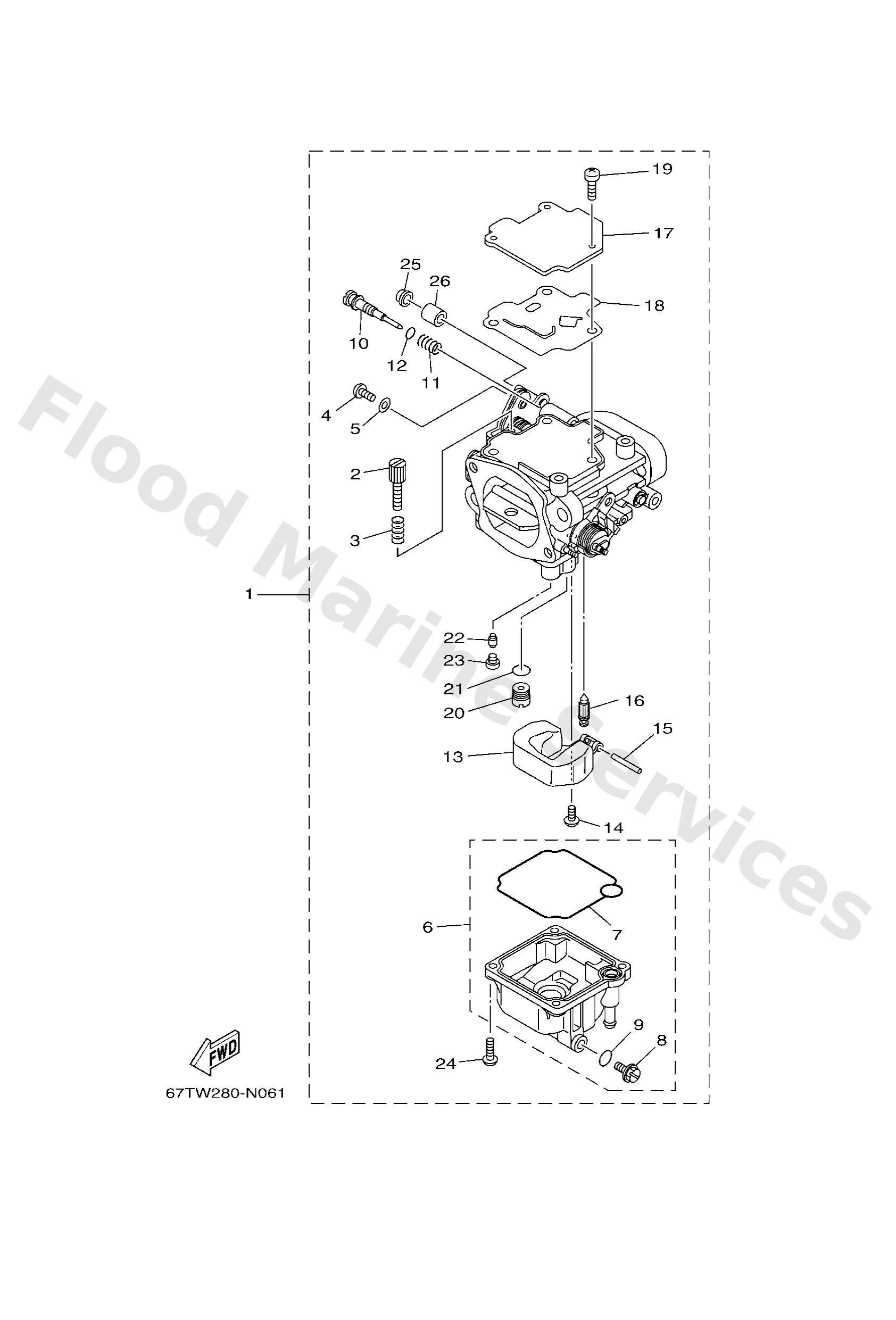

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Screw, stop
Diagram Reference: 2
Spring, pilot adjusting
Diagram Reference: 3
Screw,panhead (eg9)
Diagram Reference: 4
Washer
Diagram Reference: 5
Body, float chamber
Diagram Reference: 6
Gasket, float chamber
Diagram Reference: 7
Screw, drain
Diagram Reference: 8
Ring, o
Diagram Reference: 9
Screw, air adjusting
Diagram Reference: 10
Spring, air adjusting
Diagram Reference: 11
Ring, o
Diagram Reference: 12
Float
Diagram Reference: 13
Screw, pan head
Diagram Reference: 14
Pin, float
Diagram Reference: 15
Valve, needle
Diagram Reference: 16
Plate
Diagram Reference: 17
Gasket
Diagram Reference: 18
Screw
Diagram Reference: 19
Jet, main (#165)
Diagram Reference: 20
O-ring
Diagram Reference: 21
Jet, pilot (#70)
Diagram Reference: 22
Plug
Diagram Reference: 23
Screw, throttle
Diagram Reference: 24
Stopper
Diagram Reference: 25
Collar
Diagram Reference: 26
