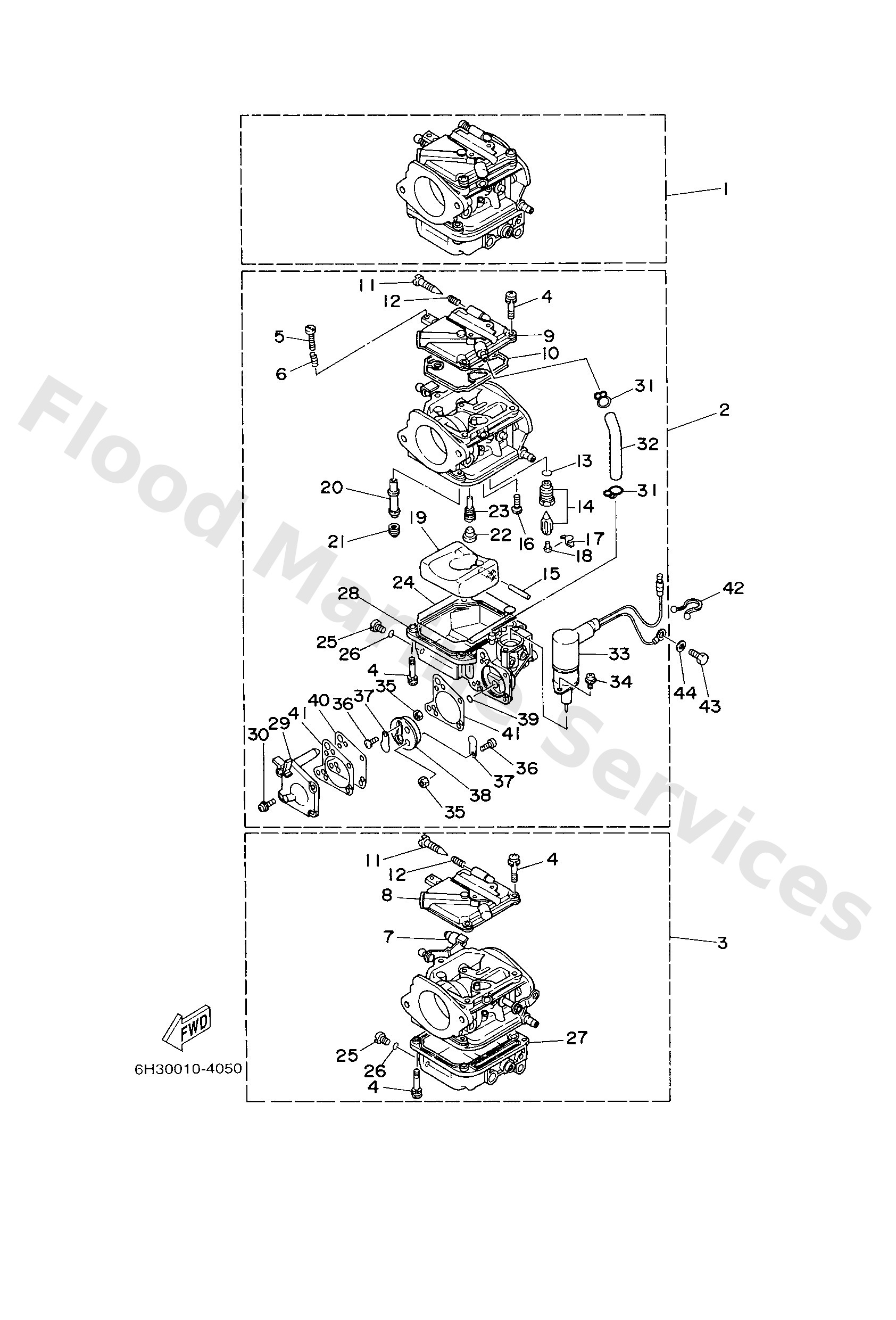

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Screw, pan head(ga5)
Diagram Reference: 4
Screw, stop
Diagram Reference: 5
Spring coil(663)(carb)
Diagram Reference: 6
Collar
Diagram Reference: 7
Plate
Diagram Reference: 8
Plate
Diagram Reference: 9
O-ring
Diagram Reference: 10
Screw, adjusting
Diagram Reference: 11
Spring
Diagram Reference: 12
O-ring (371)
Diagram Reference: 13
Needle valve assembly
Diagram Reference: 14
Pin, float arm
Diagram Reference: 15
Screw, pan head (713)
Diagram Reference: 16
Clip
Diagram Reference: 17
Pin, valve
Diagram Reference: 18
Float
Diagram Reference: 19
Jet, needle
Diagram Reference: 20
Jet, main (#150)
Diagram Reference: 21
Rubber cap
Diagram Reference: 22
Jet (#75)
Diagram Reference: 23
Gasket, float chamber
Diagram Reference: 24
Screw, drain
Diagram Reference: 25
O-ring (371)
Diagram Reference: 26
Body, float chamber
Diagram Reference: 27
Body, float chamber
Diagram Reference: 28
Cover
Diagram Reference: 29
Screw
Diagram Reference: 30
Clip
Diagram Reference: 31
Pipe
Diagram Reference: 32
Prime starter assembly
Diagram Reference: 33
Screw, pan head (e56)
Diagram Reference: 34
Nut (6g8)
Diagram Reference: 35
Screw, bind(6g1)
Diagram Reference: 36
Valve, check
Diagram Reference: 37
Body 2
Diagram Reference: 38
O-ring
Diagram Reference: 39
Diaphragm
Diagram Reference: 40
Gasket, body
Diagram Reference: 41
Clamp
Diagram Reference: 42
Bolt(gh1)
Diagram Reference: 43
Washer, plain (646)
Diagram Reference: 44
