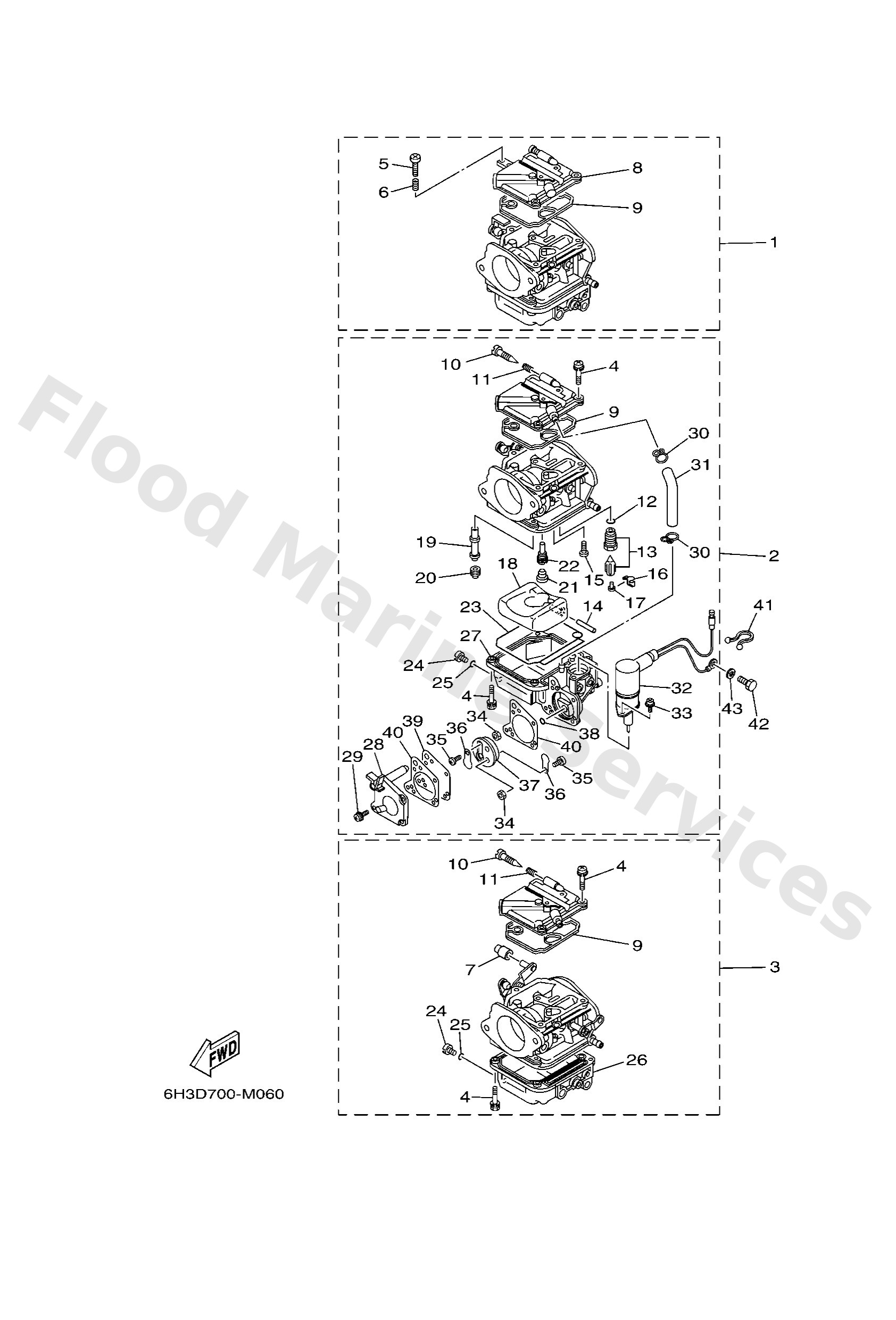

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Screw, pan head(ga5)
Diagram Reference: 4
Screw, stop
Diagram Reference: 5
Spring coil(663)(carb)
Diagram Reference: 6
Collar
Diagram Reference: 7
Plate
Diagram Reference: 8
O-ring
Diagram Reference: 9
Screw, adjusting
Diagram Reference: 10
Spring
Diagram Reference: 11
O-ring (371)
Diagram Reference: 12
Needle valve assembly
Diagram Reference: 13
Pin, float arm
Diagram Reference: 14
Screw, pan head (713)
Diagram Reference: 15
Clip
Diagram Reference: 16
Pin, valve
Diagram Reference: 17
Float
Diagram Reference: 18
Jet, needle
Diagram Reference: 19
Jet, main (#150)
Diagram Reference: 20
Rubber cap
Diagram Reference: 21
Jet (#75)
Diagram Reference: 22
Gasket, float chamber
Diagram Reference: 23
Screw, drain
Diagram Reference: 24
O-ring (371)
Diagram Reference: 25
Body, float chamber
Diagram Reference: 26
Body, float chamber
Diagram Reference: 27
Cover
Diagram Reference: 28
Screw
Diagram Reference: 29
Clip
Diagram Reference: 30
Pipe
Diagram Reference: 31
Prime starter assembly
Diagram Reference: 32
Screw, pan head (e56)
Diagram Reference: 33
Nut (6g8)
Diagram Reference: 34
Screw, bind(6g1)
Diagram Reference: 35
Valve, check
Diagram Reference: 36
Body 2
Diagram Reference: 37
O-ring
Diagram Reference: 38
Diaphragm
Diagram Reference: 39
Gasket, body
Diagram Reference: 40
Clamp
Diagram Reference: 41
Bolt(gh1)
Diagram Reference: 42
Washer, plain (646)
Diagram Reference: 43
