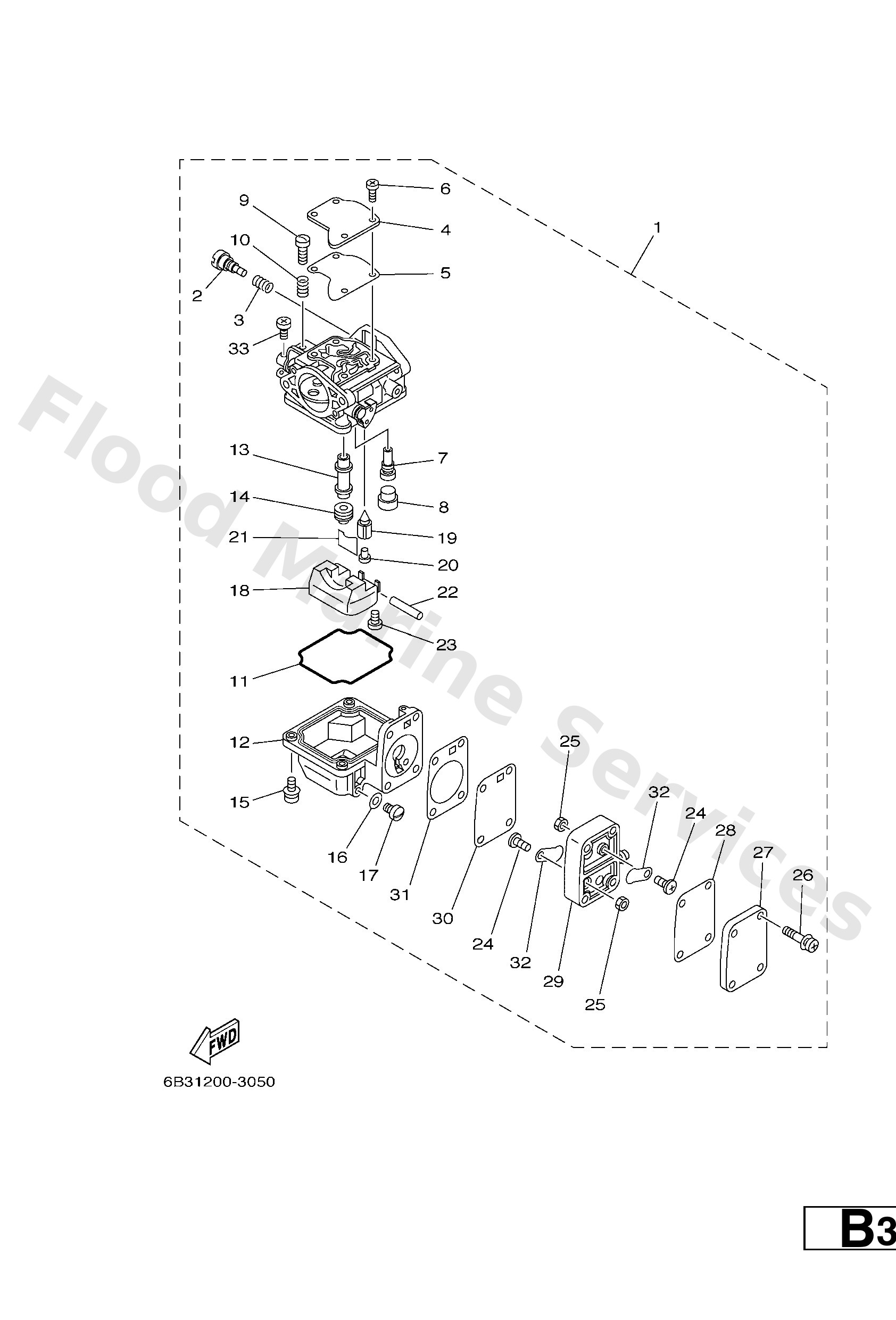

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 1
Diagram Reference: 1
Screw, pilot
Diagram Reference: 2
Spring
Diagram Reference: 3
Plate
Diagram Reference: 4
Gasket
Diagram Reference: 5
Screw, pan head (e56)
Diagram Reference: 6
Jet (#48)
Diagram Reference: 7
Rubber cap
Diagram Reference: 8
Screw, stop
Diagram Reference: 9
Spring coil(663)(carb)
Diagram Reference: 10
Gasket, float chamber
Diagram Reference: 11
Body, float chamber
Diagram Reference: 12
Jet, needle
Diagram Reference: 13
Jet, needle
Diagram Reference: 13
Jet, main (#110)
Diagram Reference: 14
Jet, main (#108)
Diagram Reference: 14
Screw, pan head(ga5)
Diagram Reference: 15
Washer
Diagram Reference: 16
Screw, drain
Diagram Reference: 17
Float
Diagram Reference: 18
Valve, needle
Diagram Reference: 19
Pin, valve
Diagram Reference: 20
Clip
Diagram Reference: 21
Pin, float arm
Diagram Reference: 22
Screw, pan head (713)
Diagram Reference: 23
Screw, bind(6g1)
Diagram Reference: 24
Nut (6g8)
Diagram Reference: 25
Screw, with washer
Diagram Reference: 26
Cover, pump
Diagram Reference: 27
Diaphragm
Diagram Reference: 28
Body 1
Diagram Reference: 29
Diaphragm
Diagram Reference: 30
Gasket, fuel pump 1
Diagram Reference: 31
Valve, check
Diagram Reference: 32
Screw, pan head (7h3)
Diagram Reference: 33
