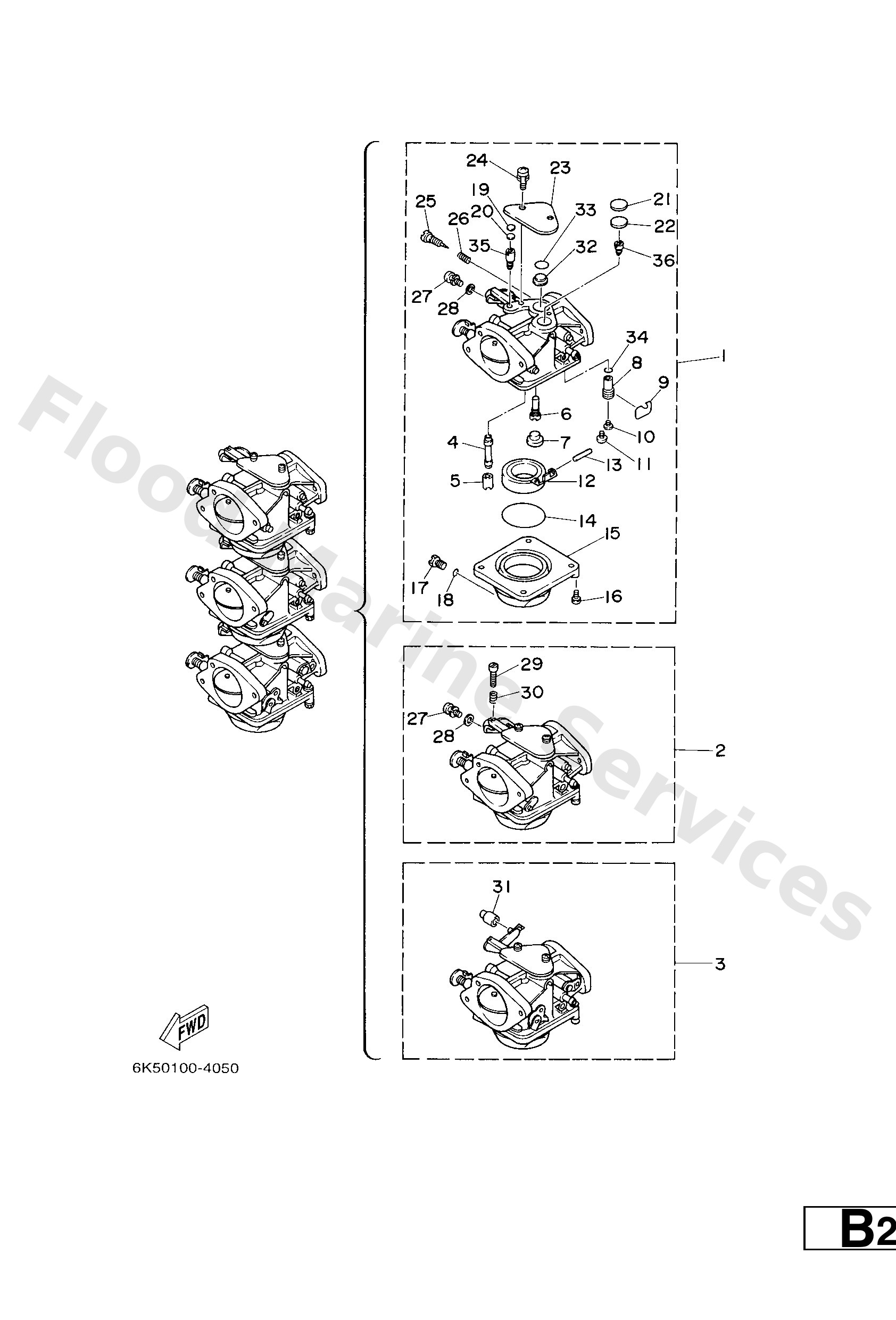

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Nozzle, main
Diagram Reference: 4
Jet, main (#135)
Diagram Reference: 5
Jet, sl0w (#70)
Diagram Reference: 6
Rubber cap
Diagram Reference: 7
Needle valve assembly
Diagram Reference: 8
Clip
Diagram Reference: 9
Pin, valve
Diagram Reference: 10
Screw, pan head (713)
Diagram Reference: 11
Float comp.
Diagram Reference: 12
Pin, arm
Diagram Reference: 13
Gasket, float chamber
Diagram Reference: 14
Body, float chamber
Diagram Reference: 15
Screw, pan head(ga5)
Diagram Reference: 16
Screw, drain
Diagram Reference: 17
O-ring (371)
Diagram Reference: 18
Packing
Diagram Reference: 19
Plate
Diagram Reference: 20
Packing
Diagram Reference: 21
Plate
Diagram Reference: 22
Plate
Diagram Reference: 23
Screw, with washer(6k5)
Diagram Reference: 24
Screw, adjusting
Diagram Reference: 25
Spring
Diagram Reference: 26
Screw
Diagram Reference: 27
Washer, plate(65j)
Diagram Reference: 28
Screw, stop
Diagram Reference: 29
Spring coil(663)(carb)
Diagram Reference: 30
Collar
Diagram Reference: 31
Collar
Diagram Reference: 32
O-ring (6e9)
Diagram Reference: 33
O-ring (371)
Diagram Reference: 34
Jet, air main (#145)
Diagram Reference: 35
Jet, air slow (#85)
Diagram Reference: 36
