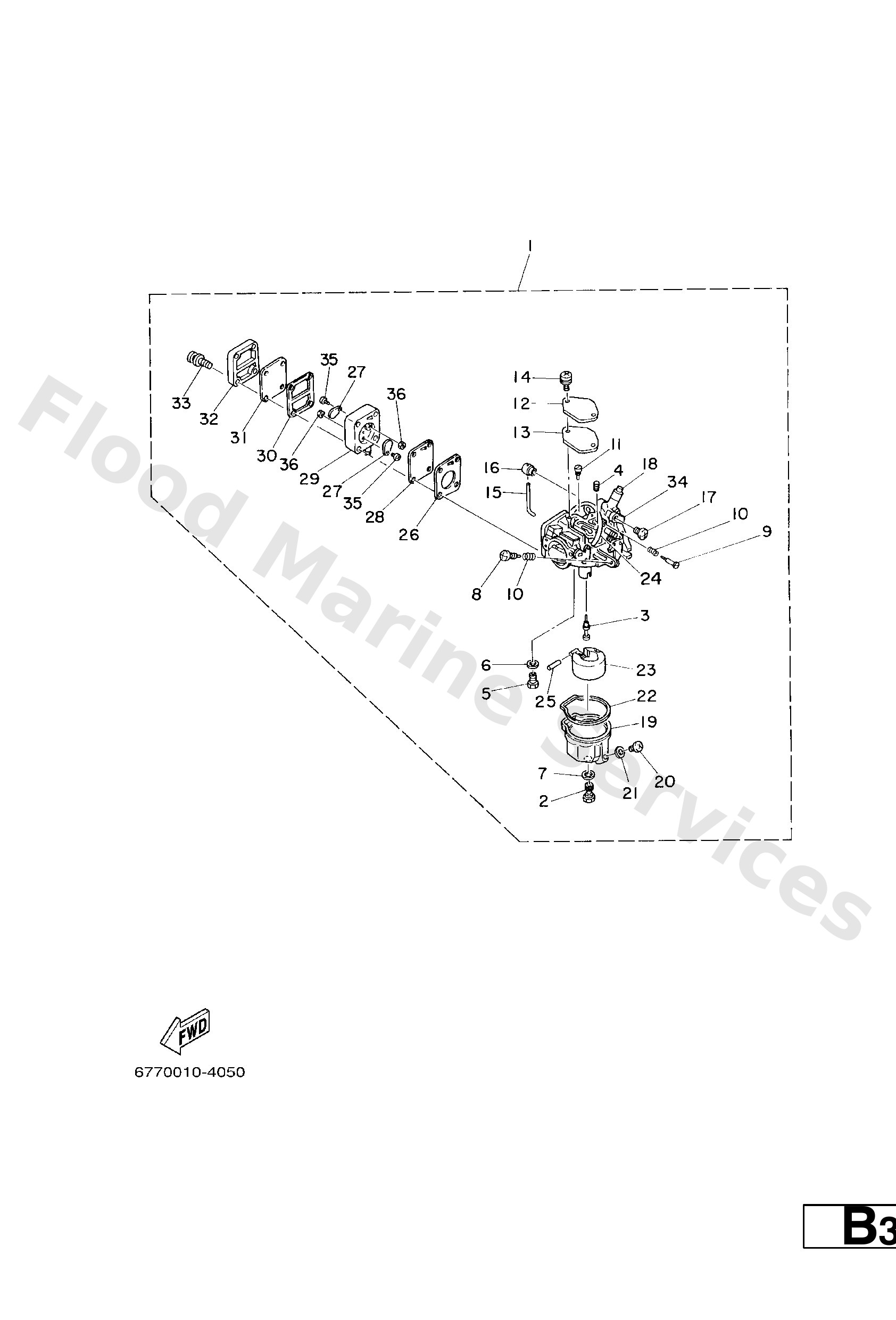

Diagram: CARBURETOR

Diagram

Parts List

677−14301−08

Carburetor assembly 1

Diagram Reference: 1

677−14343−40

Jet, main (#80)

Diagram Reference: 2

677−14341−00

Nozzle, main

Diagram Reference: 3

647−14342−23

Jet, pilot (#46)

Diagram Reference: 4

6E8−14390−12

Needle valve assembly

Diagram Reference: 5

367−14195−00

Washer, valve seat

Diagram Reference: 6

1J2−14398−00

Packing

Diagram Reference: 7

648−14321−00

Screw, pan head(ga5)

Diagram Reference: 8

648−14323−00

Screw, air adjusting

Diagram Reference: 9

646−14212−01

Spring, pilot adjusting

Diagram Reference: 10

647−14326−00

Screw, guide

Diagram Reference: 11

677−14157−01

5−

Diagram Reference: 12

677−14227−01

Gasket

Diagram Reference: 13

677−14325−00

Screw, pan head (e56)

Diagram Reference: 14

677−41241−00

Rod (carb)

Diagram Reference: 15

677−41226−00

End, throttle lever (carb)

Diagram Reference: 16

677−14327−00

Screw

Diagram Reference: 17

626−42658−00

Bushing

Diagram Reference: 18

6E7−14381−00

Body, float chamber

Diagram Reference: 19

97890−04005

Screw, pan head(6g8)

Diagram Reference: 20

655−14398−00

Gasket

Diagram Reference: 21

677−14384−01

Gasket, float chamber

Diagram Reference: 22

6E7−14385−00

Float

Diagram Reference: 23

367−14396−00

Pipe, over flow

Diagram Reference: 24

647−14386−10

Pin, float

Diagram Reference: 25

677−24434−02

Gasket, pump 1

Diagram Reference: 26

6A0−24421−01

Valve, check

Diagram Reference: 27

677−24411−02

Diaphragm

Diagram Reference: 28

677−24412−02

Cover, pump

Diagram Reference: 29

677−24435−02

Gasket, body 2

Diagram Reference: 30

677−24471−01

Diaphragm (carb.)

Diagram Reference: 31

677−24413−01

Cover (carb.)

Diagram Reference: 32

677−24444−01

Screw

Diagram Reference: 33

677−41210−00

Accel arm ass'y

Diagram Reference: 34

6E7−14325−00

Screw, pan head

Diagram Reference: 35

95380−03600

Nut (6g8)

Diagram Reference: 36
