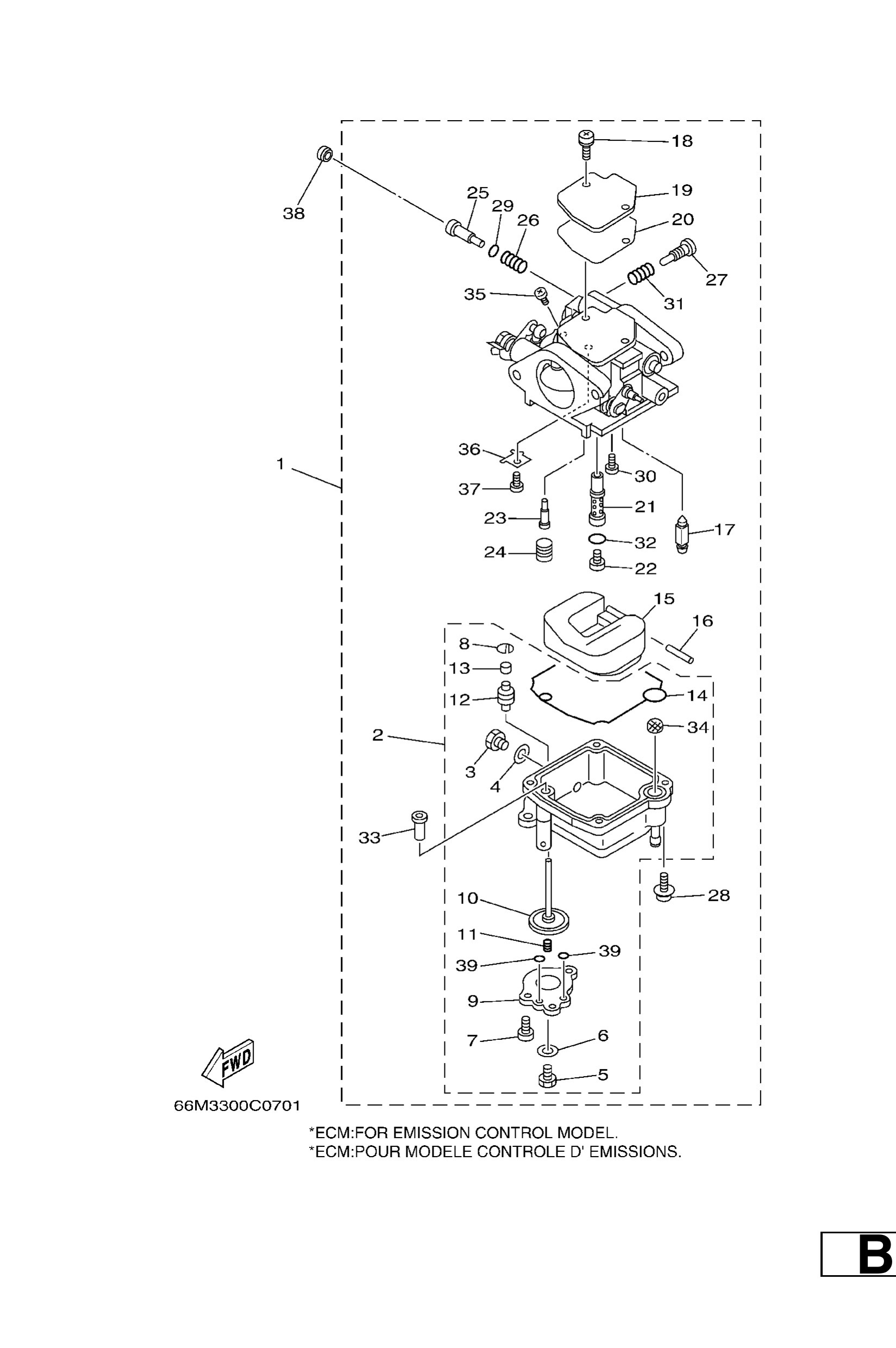

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 1
Diagram Reference: 1
Body, Float Chamber
Diagram Reference: 2
Body, Float Chamber
Diagram Reference: 2
Screw, drain
Diagram Reference: 3
Gasket
Diagram Reference: 4
Screw, drain
Diagram Reference: 5
Gasket
Diagram Reference: 6
Screw, pan head
Diagram Reference: 7
Stopper
Diagram Reference: 8
Cover, diaphragm
Diagram Reference: 9
Diaphragm assembly 1
Diagram Reference: 10
Spring
Diagram Reference: 11
Seal
Diagram Reference: 12
Cap
Diagram Reference: 13
Gasket, float chamber
Diagram Reference: 14
Float
Diagram Reference: 15
Pin, float
Diagram Reference: 16
Valve, needle
Diagram Reference: 17
Screw, pan head (e56)
Diagram Reference: 18
Cover, mixing
Diagram Reference: 19
Gasket
Diagram Reference: 20
Nozzle, main
Diagram Reference: 21
Nozzle, Main
Diagram Reference: 21
Nozzle, Main
Diagram Reference: 21
Jet, main (#104)
Diagram Reference: 22
Jet, Main (#102)
Diagram Reference: 22
Jet, main (#68)
Diagram Reference: 22
Jet, pilot (#45)
Diagram Reference: 23
Plug
Diagram Reference: 24
Plug
Diagram Reference: 24
Pilot screw set
Diagram Reference: 25
Screw, Air Adjusting
Diagram Reference: 25
Spring, air adjusting
Diagram Reference: 26
Screw, adjust
Diagram Reference: 27
Screw, pan head (686)
Diagram Reference: 28
O-ring
Diagram Reference: 29
Screw, bind(6l2)
Diagram Reference: 30
Spring, pilot adjusting
Diagram Reference: 31
O-ring
Diagram Reference: 32
Valve, check seat
Diagram Reference: 33
Filter
Diagram Reference: 34
Screw, pan head(6g8)
Diagram Reference: 35
Plate
Diagram Reference: 36
Screw, pan head(78g)
Diagram Reference: 37
Plug
Diagram Reference: 38
O-ring
Diagram Reference: 39
