F2.5AMH (2003)
CARBURETOR

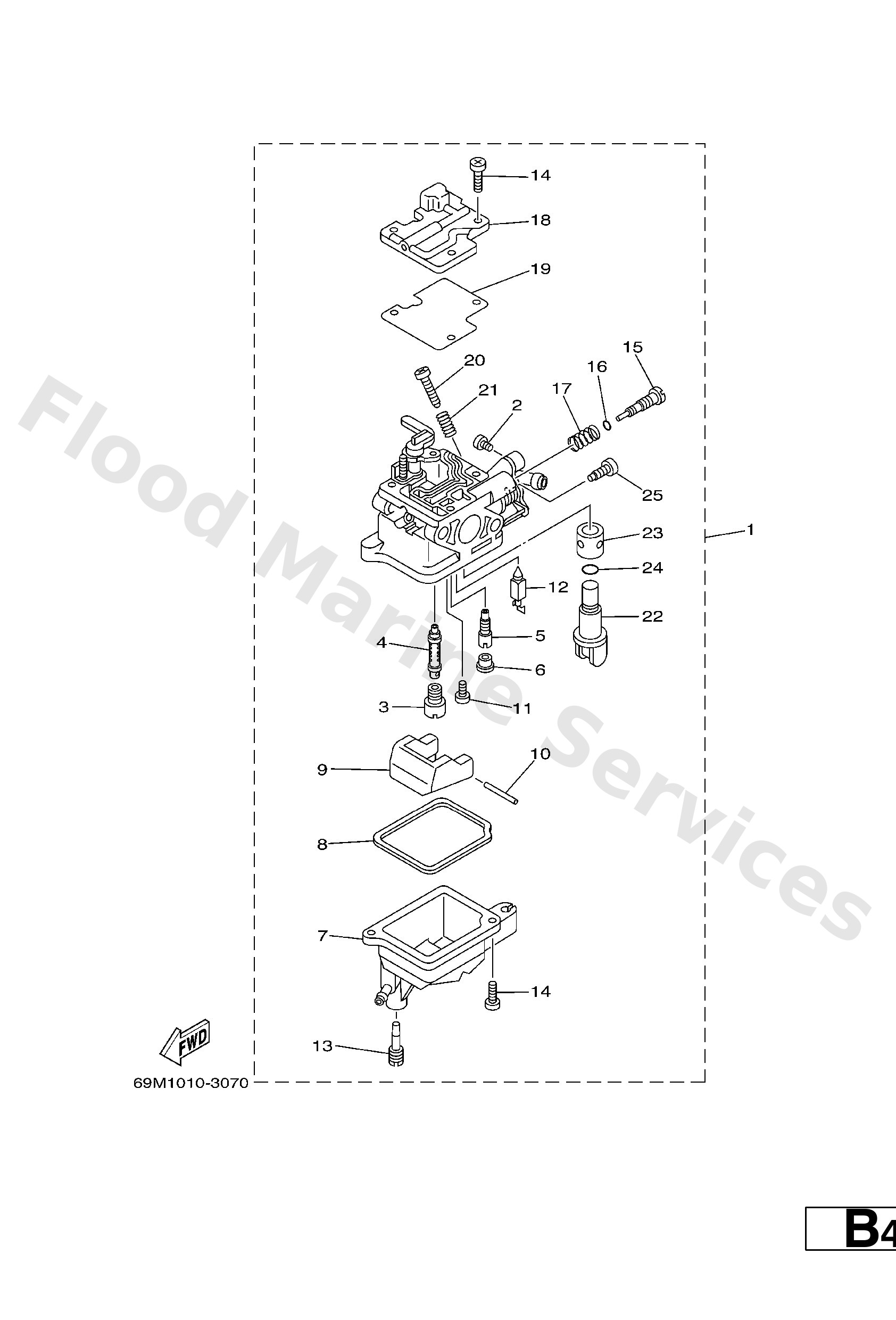

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
69M−14301−20
Carburetor assembly 1
Loading…
↗
2
97890−04007
Screw, pan head (7h3)
Loading…
↗
3
69M−14343−31
Jet, main (#62)
Loading…
↗
4
69M−14341−00
Nozzle, main
Loading…
↗
5
69M−14342−68
Jet, pilot (#37)
Loading…
↗
6
69M−14966−00
Bush
Loading…
↗
7
69M−14381−00
Body, float chamber
Loading…
↗
8
69M−14984−00
Gasket, float chamber
Loading…
↗
9
69M−14385−00
Float
Loading…
↗
10
6A1−14386−00
Pin, float
Loading…
↗
11
98580−03005
Screw, pan head(78g)
Loading…
↗
12
62Y−14392−00
Valve, needle
Loading…
↗
13
69M−14991−00
Screw
Loading…
↗
14
98580−04010
Screw, pan head (e56)
Loading…
↗
15
69M−14323−20
Screw, air adjusting
Loading…
↗
16
2T4−14397−00
O-ring
Loading…
↗
17
62Y−14334−00
Spring, air adjusting
Loading…
↗
18
69M−14527−00
Plate
Loading…
↗
19
69M−14536−00
Gasket
Loading…
↗
20
69W−14321−00
Screw, throttle
Loading…
↗
21
62Y−14212−00
Spring, pilot adjusting
Loading…
↗
22
69M−24524−00
Lever, cock
Loading…
↗
23
69M−24523−00
Valve
Loading…
↗
24
69M−24533−00
O-ring
Loading…
↗
25
69M−24535−00
Screw, lever fitting
Loading…
↗
