Genuine Yamaha Outboard Parts Diagrams | Flood Marine

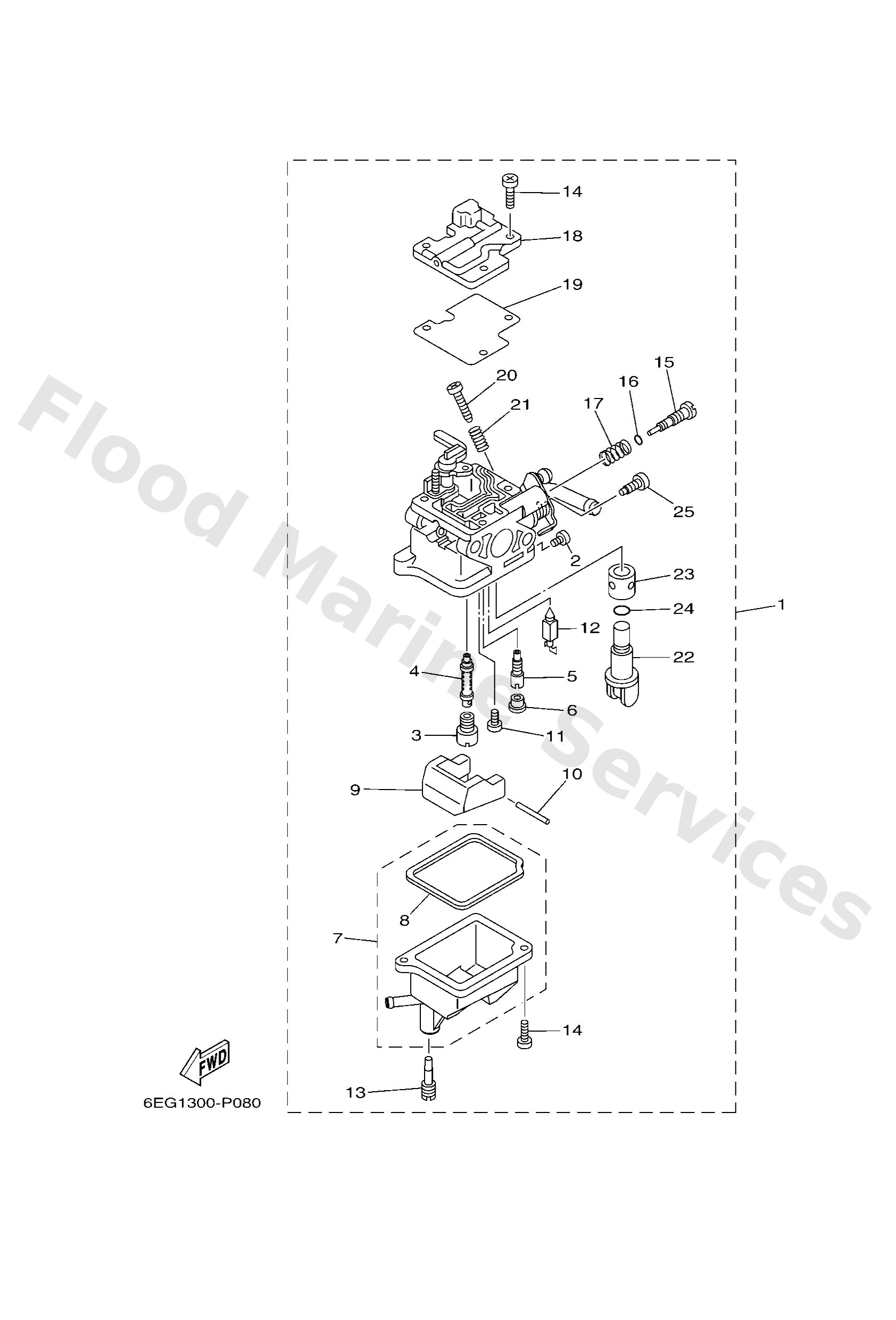

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Screw, pan head (7h3)
Diagram Reference: 2
Jet, main (#62)
Diagram Reference: 3
Nozzle, main
Diagram Reference: 4
Jet, pilot (#37)
Diagram Reference: 5
Lever, starter
Diagram Reference: 6
Body, float chamber
Diagram Reference: 7
Gasket, float chamber
Diagram Reference: 8
Float
Diagram Reference: 9
Pin, float
Diagram Reference: 10
Screw, pan head(78g)
Diagram Reference: 11
Valve, needle
Diagram Reference: 12
Screw
Diagram Reference: 13
Screw, pan head (e56)
Diagram Reference: 14
Screw, air adjusting
Diagram Reference: 15
O-ring
Diagram Reference: 16
Spring, air adjusting
Diagram Reference: 17
Plate
Diagram Reference: 18
Gasket
Diagram Reference: 19
Screw, throttle
Diagram Reference: 20
Spring, pilot adjusting
Diagram Reference: 21
Lever, cock
Diagram Reference: 22
Valve
Diagram Reference: 23
O-ring
Diagram Reference: 24
Screw, lever fitting
Diagram Reference: 25
