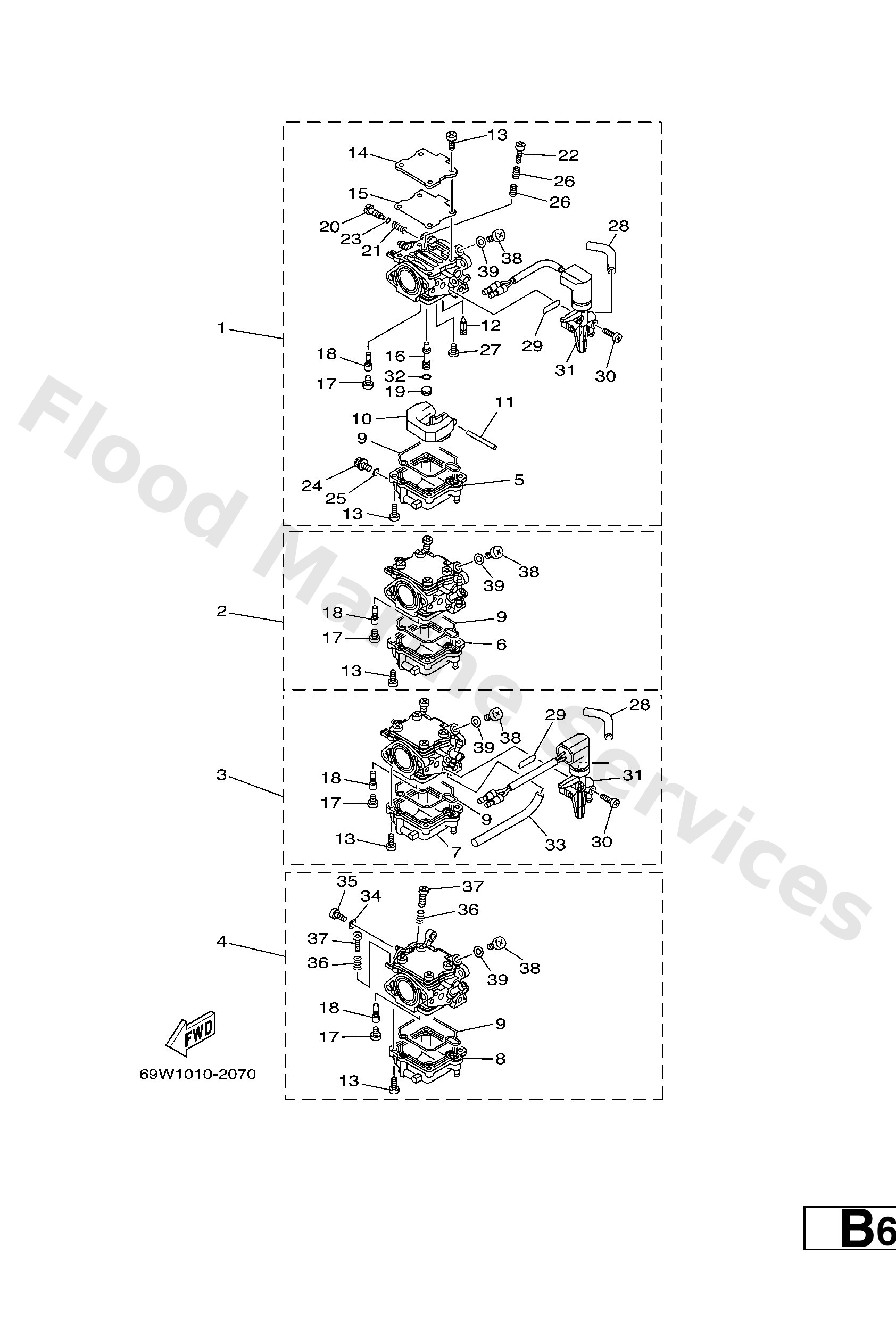

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Carburetor assembly 4
Diagram Reference: 4
Carburetor assembly 4
Diagram Reference: 4
Body, Float Chamber
Diagram Reference: 5
Body, Float Chamber
Diagram Reference: 6
Body, float chamber
Diagram Reference: 7
Body, float chamber
Diagram Reference: 8
Gasket, float chamber
Diagram Reference: 9
Float
Diagram Reference: 10
Pin, float
Diagram Reference: 11
Valve, needle
Diagram Reference: 12
Screw, throttle
Diagram Reference: 13
Cover, mixing
Diagram Reference: 14
Gasket
Diagram Reference: 15
Nozzle, Main
Diagram Reference: 16
Jet, main (#124)
Diagram Reference: 17
Jet, pilot (#39)
Diagram Reference: 18
Plug
Diagram Reference: 19
Screw, air adjusting
Diagram Reference: 20
Spring, air adjusting
Diagram Reference: 21
Screw, throttle
Diagram Reference: 22
O-ring
Diagram Reference: 23
Screw, drain
Diagram Reference: 24
Ring, o
Diagram Reference: 25
Spring, pilot adjusting
Diagram Reference: 26
Screw, bind(6l2)
Diagram Reference: 27
Pipe, fuel 1
Diagram Reference: 28
Gasket
Diagram Reference: 29
Screw
Diagram Reference: 30
Screw
Diagram Reference: 30
Prime starter assembly
Diagram Reference: 31
Prime starter assembly
Diagram Reference: 31
O-ring
Diagram Reference: 32
Pipe 3
Diagram Reference: 33
Washer
Diagram Reference: 34
Screw
Diagram Reference: 35
Spring, pilot adjusting
Diagram Reference: 36
Screw, throttle
Diagram Reference: 37
Plug, screw
Diagram Reference: 38
Gasket(3gh)
Diagram Reference: 39
