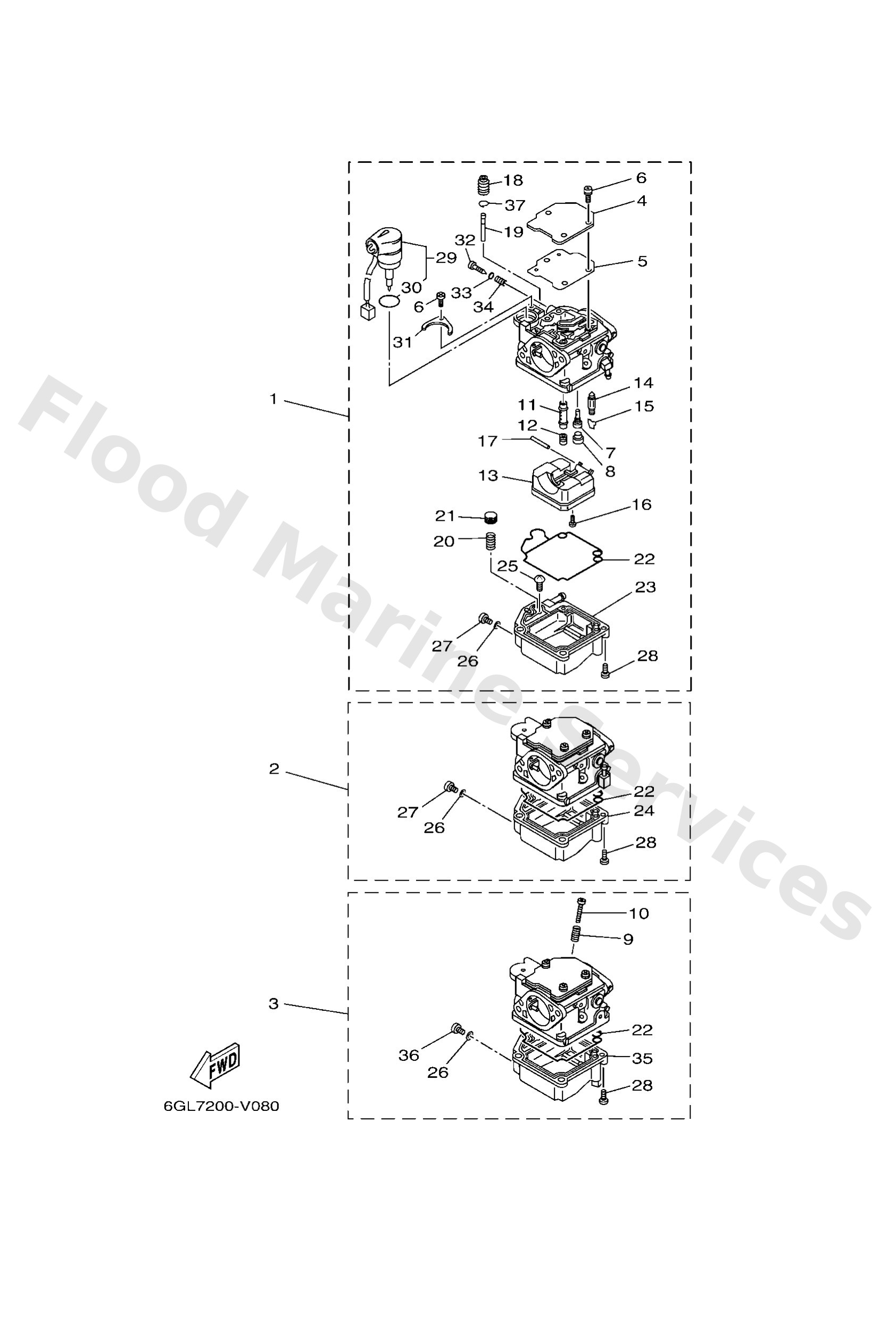

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 3
Diagram Reference: 3
Plate
Diagram Reference: 4
Gasket
Diagram Reference: 5
Screw
Diagram Reference: 6
Jet (#42)
Diagram Reference: 7
Rubber cap
Diagram Reference: 8
Spring coil(663)(carb)
Diagram Reference: 9
Screw, stop
Diagram Reference: 10
Nozzle, main
Diagram Reference: 11
Jet, main (#95)
Diagram Reference: 12
Float
Diagram Reference: 13
Valve, needle
Diagram Reference: 14
Clip
Diagram Reference: 15
Screw, pan head (713)
Diagram Reference: 16
Pin, float arm
Diagram Reference: 17
Cover, plunger cap
Diagram Reference: 18
Rod, starter
Diagram Reference: 19
Spring, plunger
Diagram Reference: 20
Plunger, starter
Diagram Reference: 21
Gasket, float chamber
Diagram Reference: 22
Body, float chamber
Diagram Reference: 23
Body, float chamber
Diagram Reference: 24
Screw
Diagram Reference: 25
Washer
Diagram Reference: 26
Screw, drain
Diagram Reference: 27
Screw, pan head(ga5)
Diagram Reference: 28
Prime Starter assembly
Diagram Reference: 29
O-ring
Diagram Reference: 30
Plate
Diagram Reference: 31
Screw, pilot
Diagram Reference: 32
O-ring
Diagram Reference: 33
Spring
Diagram Reference: 34
Body, Float Chamber
Diagram Reference: 35
Screw, drain
Diagram Reference: 36
Clip 1
Diagram Reference: 37
