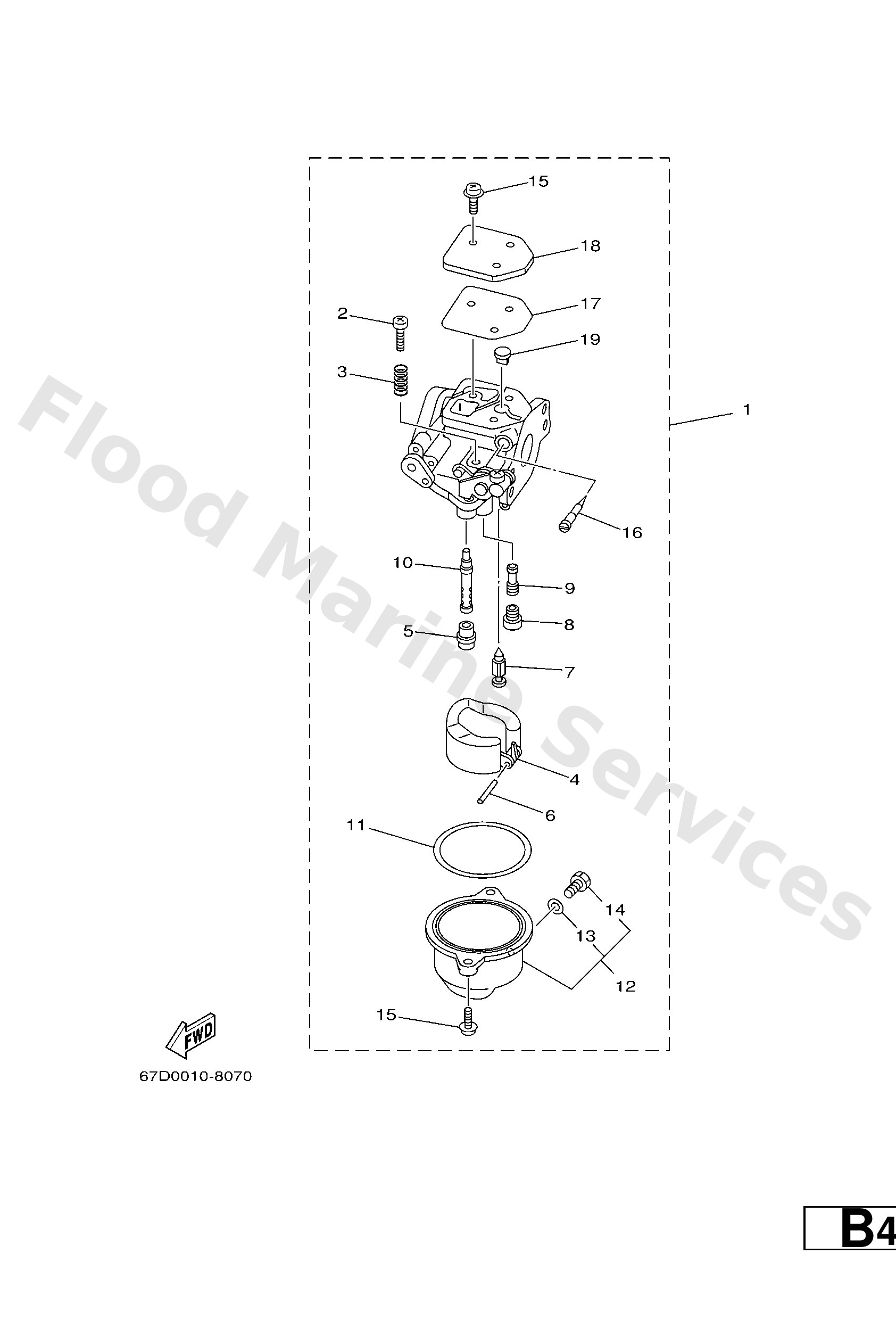

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 1
Diagram Reference: 1
Screw, throttle
Diagram Reference: 2
Spring, throttle
Diagram Reference: 3
Float
Diagram Reference: 4
Rubber cap
Diagram Reference: 5
Pin, float
Diagram Reference: 6
Valve, needle
Diagram Reference: 7
Jet, main (#68)
Diagram Reference: 8
Jet, air slow (#36)
Diagram Reference: 9
Nozzle, main
Diagram Reference: 10
Gasket, float chamber
Diagram Reference: 11
Body, float chamber
Diagram Reference: 12
Gasket, drin screw
Diagram Reference: 13
Plug, drain
Diagram Reference: 14
Screw, pan head (686)
Diagram Reference: 15
Screw, air adjusting
Diagram Reference: 16
Screw, Air Adjusting
Diagram Reference: 16
Gasket
Diagram Reference: 17
Plate
Diagram Reference: 18
Plug
Diagram Reference: 19
