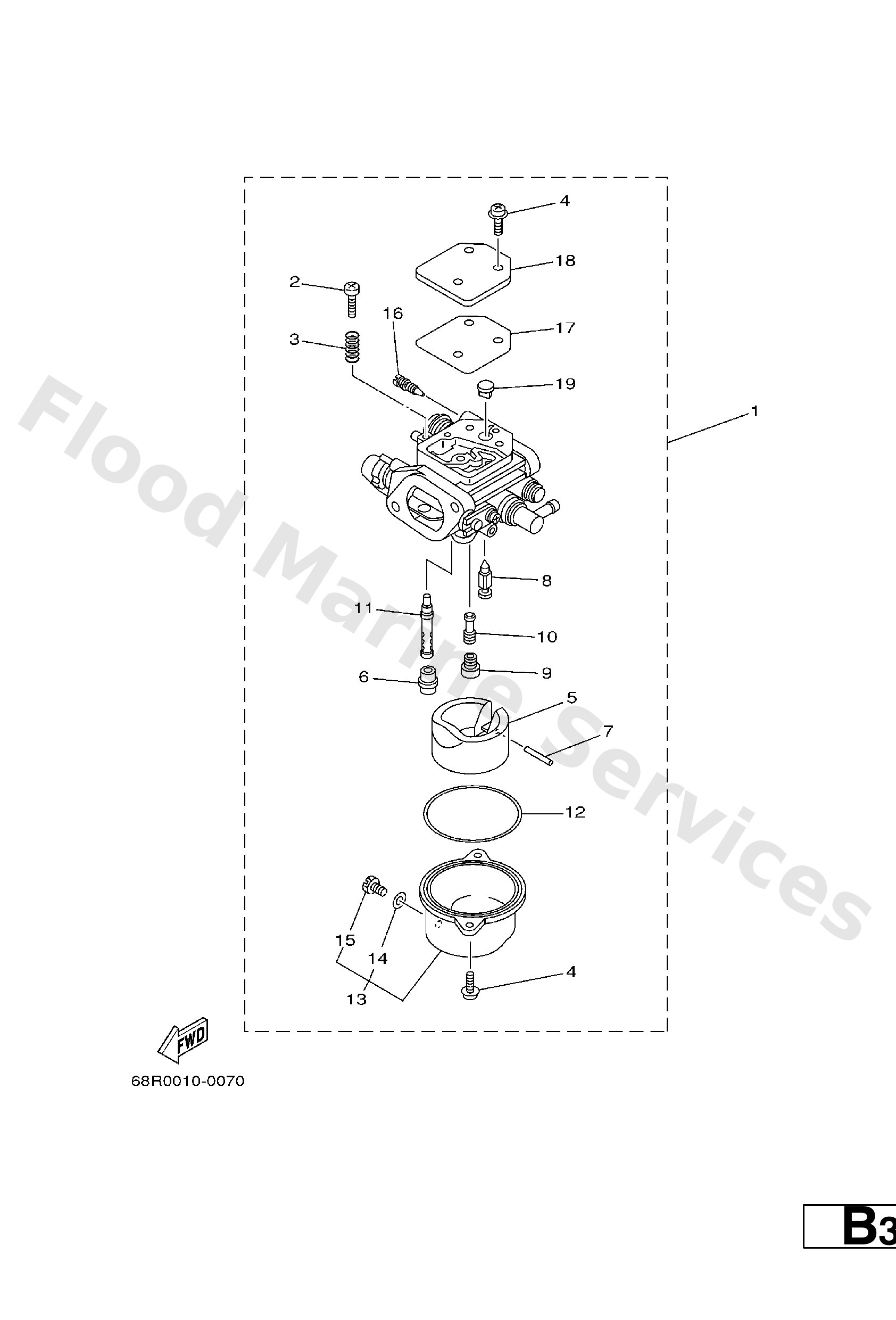

Diagram: CARBURETOR

Diagram

Parts List

68T−14301−00 (F8C)
Carburetor & accel link 68t00
Diagram Reference: 1
Get Part
68R−14301−C0 (F6A)
Carburetor assembly 1
Diagram Reference: 1
Get Part
69F−14301−C0 (F6B)
Carburetor assembly 1
Diagram Reference: 1
Get Part
68T−14301−20 (F8C)
Carburetor & accel link 68t20
Diagram Reference: 1
Get Part
68R−14301−A0 (F6A)
Carburetor assembly 1
Diagram Reference: 1
Get Part
6E5−14321−00
Screw, throttle
Diagram Reference: 2
Get Part
6J8−14334−00
Spring, throttle
Diagram Reference: 3
Get Part
97980−04112
Screw, pan head (686)
Diagram Reference: 4
Get Part
68T−14385−00
Float
Diagram Reference: 5
Get Part
67D−14966−00
Rubber cap
Diagram Reference: 6
Get Part
67D−14386−00
Pin, float
Diagram Reference: 7
Get Part
68T−14546−00
Valve, needle
Diagram Reference: 8
Get Part
68T−1492E−37 (F8C)
Jet, main (#74)
Diagram Reference: 9
Get Part
68R−1492E−2H (F6A,F6B)
Jet, Main (#55)
Diagram Reference: 9
Get Part
68R−1492F−18 (F6A,F6B)
Jet, air slow
Diagram Reference: 10
Get Part
68T−1492F−1K (F8C)
Jet, air slow (#39)
Diagram Reference: 10
Get Part
68T−1492A−00
Nozzle, main
Diagram Reference: 11
Get Part
67D−14984−00
Gasket, float chamber
Diagram Reference: 12
Get Part
68T−14981−00
Body, float chamber
Diagram Reference: 13
Get Part
6J8−14959−00
Gasket, drin screw
Diagram Reference: 14
Get Part
66T−14991−00
Plug, drain
Diagram Reference: 15
Get Part
67D−14323−00
Screw, air adjusting
Diagram Reference: 16
Get Part
68T−14323−20
Screw, Air Adjusting
Diagram Reference: 16
Get Part
67D−14536−00
Gasket
Diagram Reference: 17
Get Part
67D−14527−00
Plate
Diagram Reference: 18
Get Part
68T−14126−00
Plug
Diagram Reference: 19
Get Part
