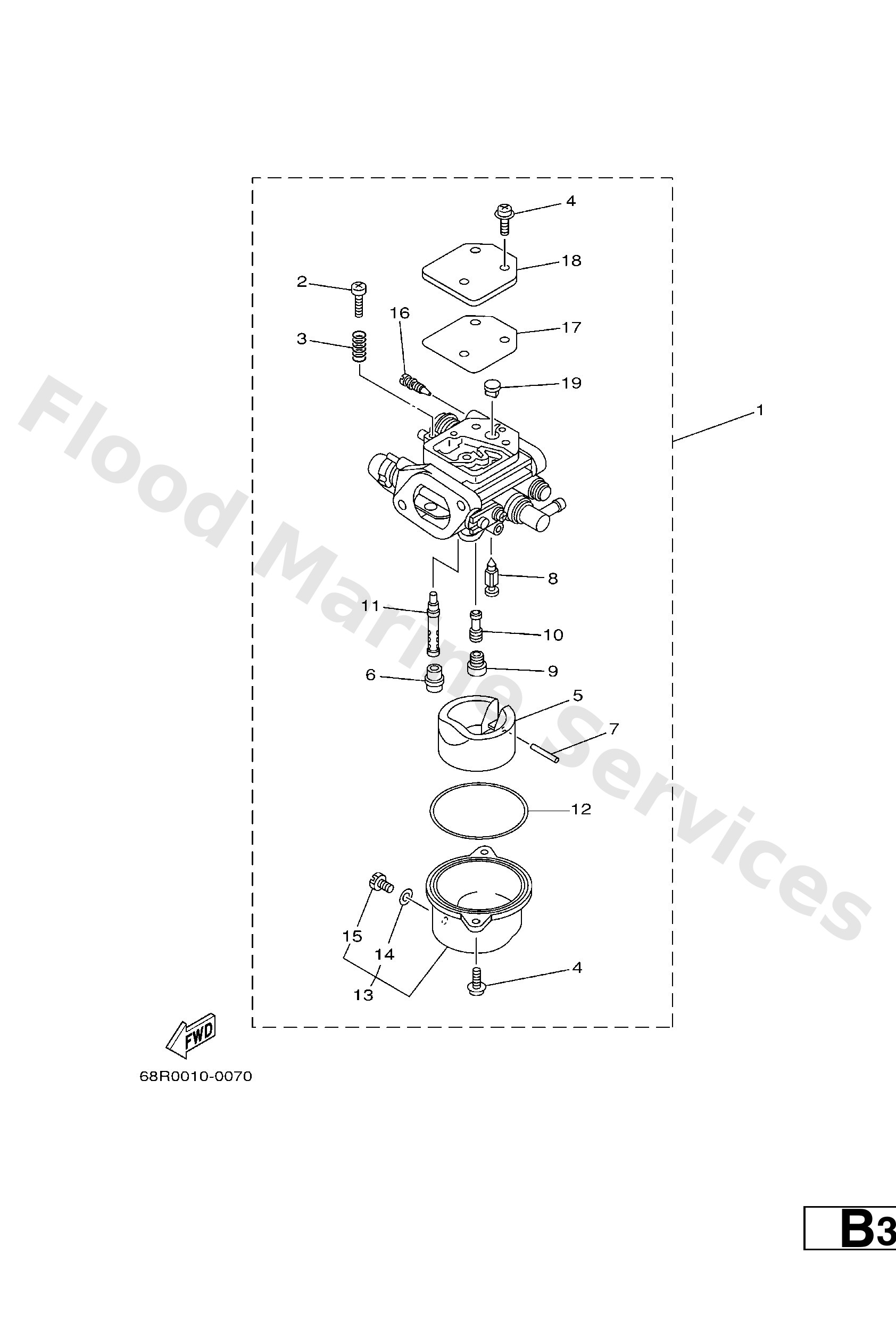

Diagram: CARBURETOR

Diagram

Parts List

68R14301C0 (F6A-FOR SAV)
Carburetor assembly 1
Diagram Reference: 1
Get Part
69F14301C0 (F6B-FOR SAV)
Carburetor assembly 1
Diagram Reference: 1
Get Part
68T1430120 (F8C-FOR SAV)
Carburetor & accel link 68t20
Diagram Reference: 1
Get Part
68R1430100 (F6A-FOR STD)
Carburetor assembly 1
Diagram Reference: 1
Get Part
6E51432100
Screw, throttle
Diagram Reference: 2
Get Part
6J81433400
Spring, throttle
Diagram Reference: 3
Get Part
9798004112
Screw, pan head (686)
Diagram Reference: 4
Get Part
68T1438500
Float
Diagram Reference: 5
Get Part
67D1496600
Rubber cap
Diagram Reference: 6
Get Part
67D1438600
Pin, float
Diagram Reference: 7
Get Part
68T1454600
Valve, needle
Diagram Reference: 8
Get Part
68R1492E2H (F6A/F6B-SAV)
Jet, Main (#55)
Diagram Reference: 9
Get Part
68T1492E37 (F6A-STD,F8C-SAV)
Jet, main (#74)
Diagram Reference: 9
Get Part
68T1492F1K (F6A-STD,F8C-SAV)
Jet, air slow (#39)
Diagram Reference: 10
Get Part
68R1492F18 (F6A/F6B-SAV)
Jet, air slow
Diagram Reference: 10
Get Part
68T1492A00
Nozzle, main
Diagram Reference: 11
Get Part
67D1498400
Gasket, float chamber
Diagram Reference: 12
Get Part
68T1498100
Body, float chamber
Diagram Reference: 13
Get Part
6J81495900
Gasket, drin screw
Diagram Reference: 14
Get Part
66T1499100
Plug, drain
Diagram Reference: 15
Get Part
67D1432300 (FOR STD)
Screw, air adjusting
Diagram Reference: 16
Get Part
68T1432320 (FOR SAV)
Screw, Air Adjusting
Diagram Reference: 16
Get Part
67D1453600
Gasket
Diagram Reference: 17
Get Part
67D1452700
Plate
Diagram Reference: 18
Get Part
68T1412600
Plug
Diagram Reference: 19
Get Part
