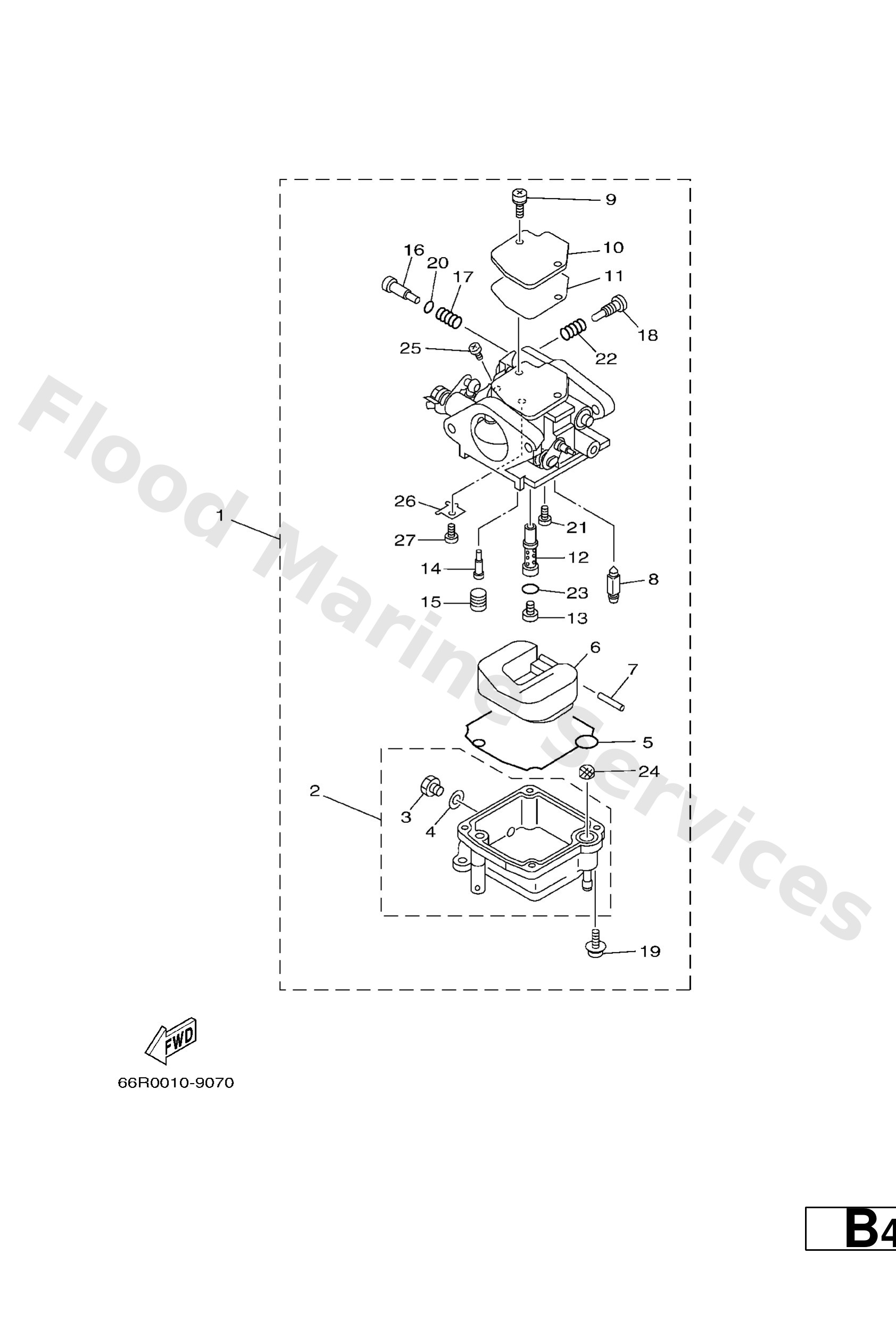

Diagram: CARBURETOR
Parts List
Carburetor assembly 1
Diagram Reference: 1
Body, Float Chamber
Diagram Reference: 2
Screw, drain
Diagram Reference: 3
Gasket
Diagram Reference: 4
Gasket, float chamber
Diagram Reference: 5
Float
Diagram Reference: 6
Pin, float
Diagram Reference: 7
Valve, needle
Diagram Reference: 8
Screw, pan head (e56)
Diagram Reference: 9
Cover, mixing
Diagram Reference: 10
Gasket
Diagram Reference: 11
Nozzle, main
Diagram Reference: 12
Jet, main (#68)
Diagram Reference: 13
Jet, pilot (#45)
Diagram Reference: 14
Plug
Diagram Reference: 15
Pilot screw set
Diagram Reference: 16
Spring, air adjusting
Diagram Reference: 17
Screw, adjust
Diagram Reference: 18
Screw, pan head (686)
Diagram Reference: 19
O-ring
Diagram Reference: 20
Screw, bind(6l2)
Diagram Reference: 21
Spring, pilot adjusting
Diagram Reference: 22
O-ring
Diagram Reference: 23
Filter
Diagram Reference: 24
Screw, pan head(6g8)
Diagram Reference: 25
Plate
Diagram Reference: 26
Screw, pan head(78g)
Diagram Reference: 27
