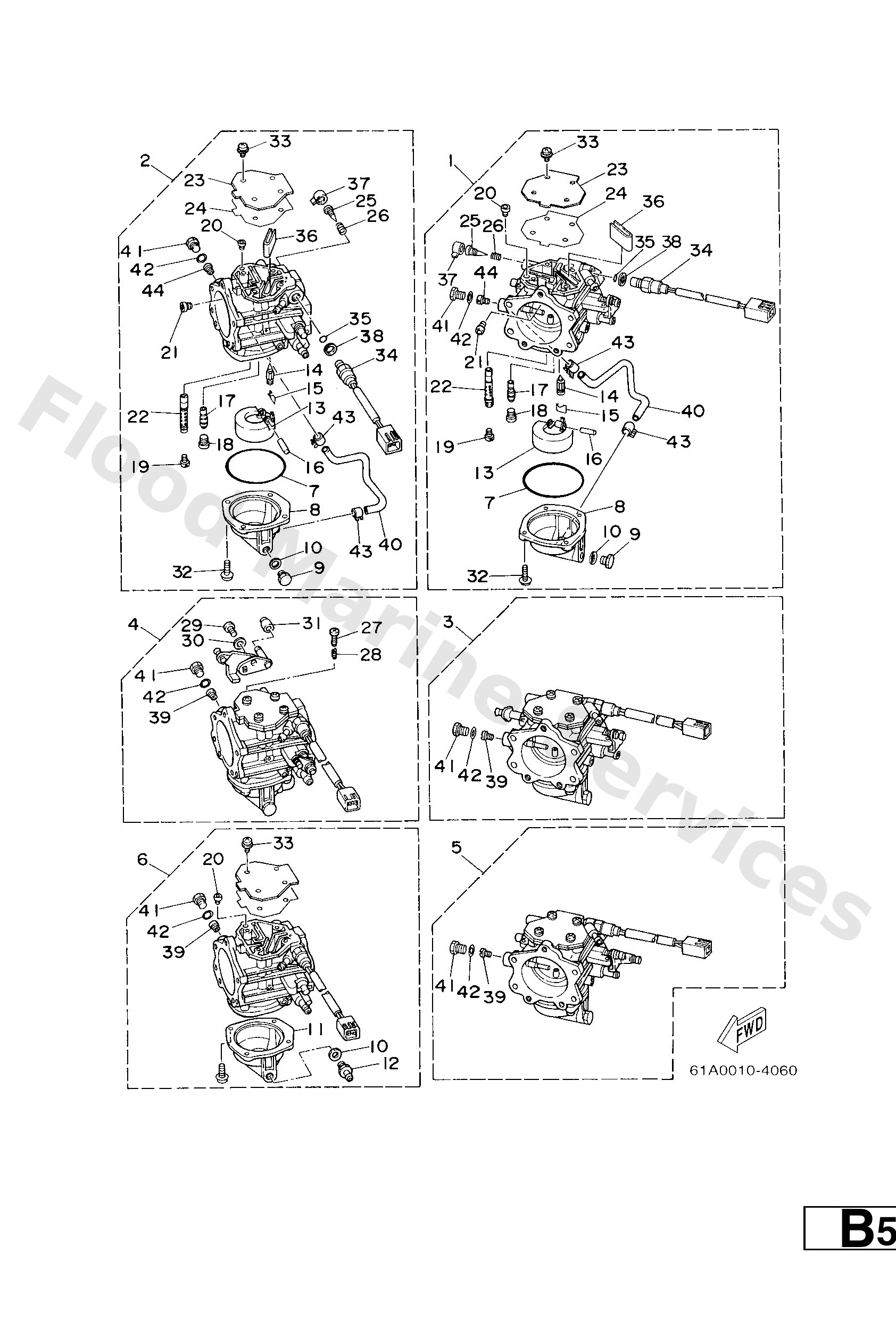

Diagram: CARBURETOR

Diagram

Parts List

61A1410006
Carburetor assembly 1
Diagram Reference: 1
Get Part
61A1430106
Carburetor assembly 2
Diagram Reference: 2
Get Part
61A1410106
Carburetor assembly 3
Diagram Reference: 3
Get Part
61A1430206
Carburetor assembly 2
Diagram Reference: 4
Get Part
61A1410206
Carburetor assembly 5
Diagram Reference: 5
Get Part
61A1430306
Carburetor assembly 6
Diagram Reference: 6
Get Part
61A1438400
Gasket, float chamber
Diagram Reference: 7
Get Part
61A1438111 (#1,2,3,4,5)
Body, Float Chamber
Diagram Reference: 8
Get Part
61A1438301 (#1,2,3,4,5)
Screw, drain
Diagram Reference: 9
Get Part
61A1499500
Gasket
Diagram Reference: 10
Get Part
61A1438101 (#6)
Body, Float Chamber
Diagram Reference: 11
Get Part
61A1438310 (#6)
Screw, Drain
Diagram Reference: 12
Get Part
61A1438500
Float
Diagram Reference: 13
Get Part
6E51454600
Valve, needle
Diagram Reference: 14
Get Part
6E51415900
Clip
Diagram Reference: 15
Get Part
61A1438600
Pin, Float
Diagram Reference: 16
Get Part
61A1492F50
Jet, air slow (#100)
Diagram Reference: 17
Get Part
61A1439400
Valve, Drain
Diagram Reference: 18
Get Part
62J1492E81 (#1,2,4,6)
Jet, Main (#162)
Diagram Reference: 19
Get Part
62J1492E80 (#3,5)
Jet, Main (#160)
Diagram Reference: 19
Get Part
61A1492G52
Jet, Main Air Bleed (#260)
Diagram Reference: 20
Get Part
61A1492H14
Jet,Slowair Bleed (#70)
Diagram Reference: 21
Get Part
61A1492A01
Nozzle, main
Diagram Reference: 22
Get Part
61A1452700
Plate
Diagram Reference: 23
Get Part
61A1495900
Gasket
Diagram Reference: 24
Get Part
6E51432303
Screw, air adjusting
Diagram Reference: 25
Get Part
6E51422300
Spring, air adjusting
Diagram Reference: 26
Get Part
6E51432100 (#4)
Screw, throttle
Diagram Reference: 27
Get Part
6J81433400 (#4)
Spring, throttle
Diagram Reference: 28
Get Part
6J81459201 (#4)
Screw
Diagram Reference: 29
Get Part
9299005600 (#4)
Washer, plain (646)
Diagram Reference: 30
Get Part
6J81457800 (#4)
Collar
Diagram Reference: 31
Get Part
9798005116
Screw, pan head
Diagram Reference: 32
Get Part
9798005108
Screw, with washer
Diagram Reference: 33
Get Part
61A8612000
Solenoid valve assembly
Diagram Reference: 34
Get Part
61A1456100
O-ring
Diagram Reference: 35
Get Part
61A1416300
Spacer
Diagram Reference: 36
Get Part
61A1411800
Cap
Diagram Reference: 37
Get Part
61A1419800
Gasket
Diagram Reference: 38
Get Part
61A1492E5H (#3,4,5,6)
Jet, Main (#115)
Diagram Reference: 39
Get Part
61A1429800
Pipe
Diagram Reference: 40
Get Part
9046511M10
Clamp
Diagram Reference: 43
Get Part
61A1492E5C (#1,2)
Jet ,Main (#105)
Diagram Reference: 44
